Page 10 - Manual FA01423 -E N - 03/2020 - © CAME S.p.A. -The contents of this manual may be changed, at any time, and without notice. - Translation of the o
riginal instructions

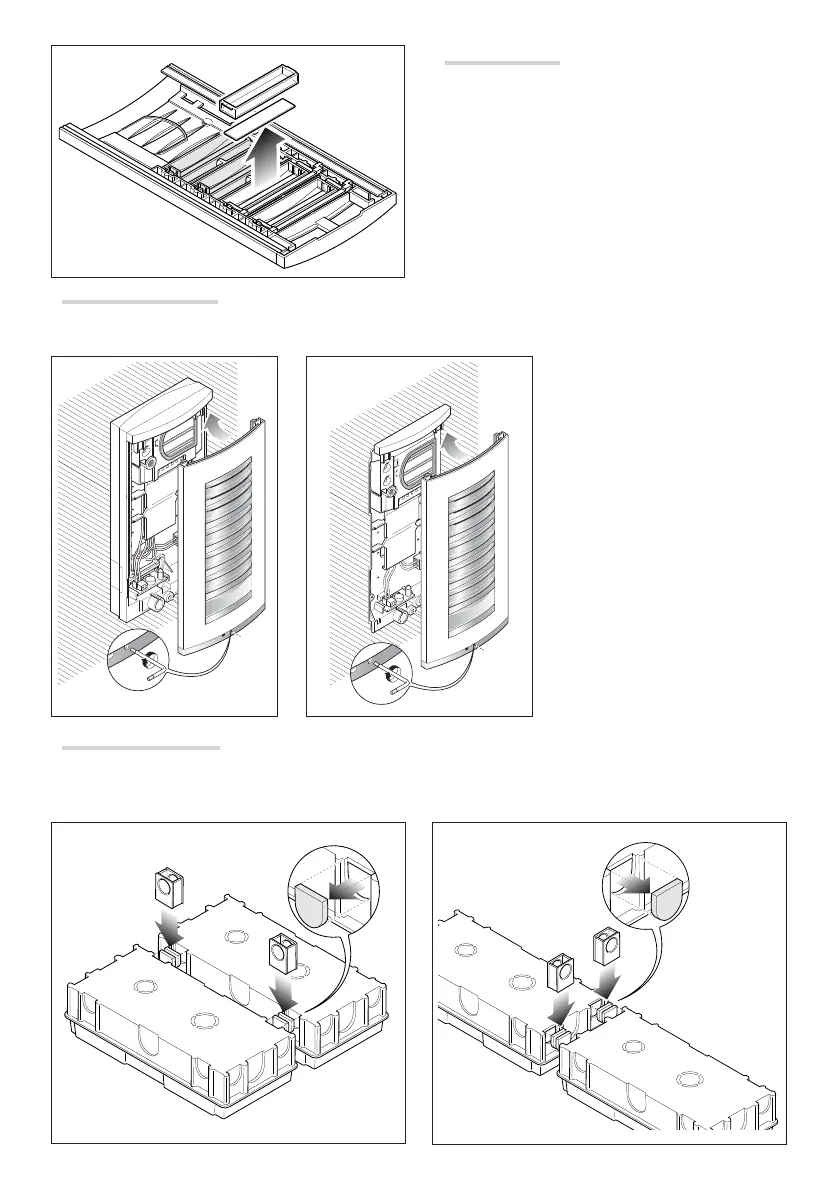

Recessing side by side
To recess boxes side by side horizontally or vertically, remove the blanking plugs and insert the cable gland joints .
The recessed boxes must be walled in fl ush with the wall at a suitable height, using the spacers provided in order to avoid any
distortion of the box .
Button assembly
To write the desired information on the name card, take out the
card holder and the card .
Personalised name cards up to a maximum thickness of 2 mm
can be used.
Closing the Front Plate
To assemble the front plate fi rst insert the upper part into the top and then, with a 2.5 hex key, tighten the locking screw .
