Page 14 - Manual FA01561-EN - 02/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

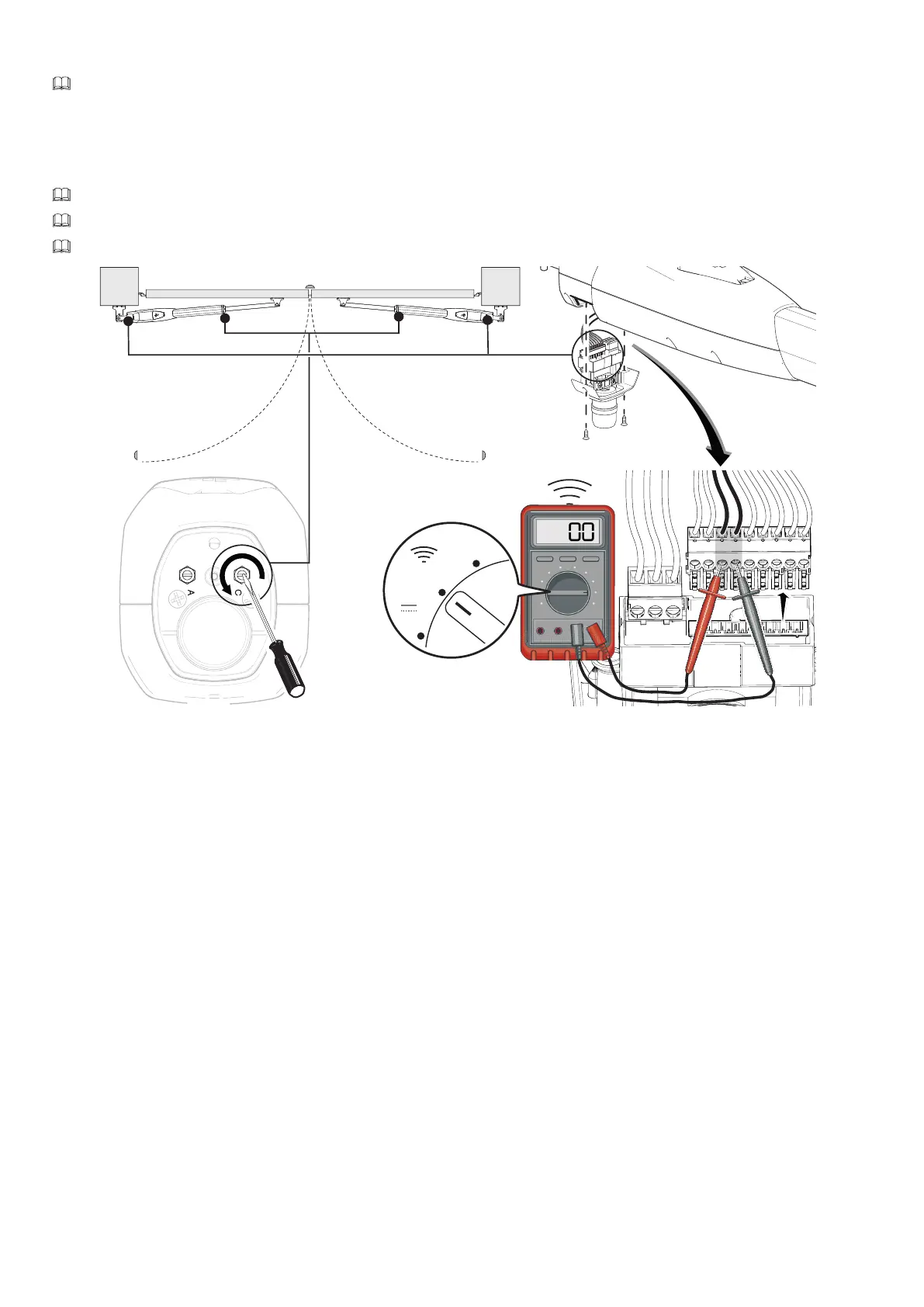

Determining the closing end-of-travel points
Perform these operations on both gearmotors.
Release the gearmotor.
Manually close the leaf to the desired point.
Disconnect the 9-pole terminal board.
Connect the multimeter set to check continuity to the Rc-Rc terminals (NC contact); a buzzer will sound on the multimeter.
Turn the shaft (C) ANTICLOCKWISE to determine the closing travel end point, until the Rc-Rc contact opens and the multimeter stops buzzing.
If you want to decrease the closing angle, the multimeter will buzz again: turn the shaft CLOCKWISE until the multimeter stops buzzing.
If you want to increase the closing angle, the multimeter will buzz again: turn the shaft ANTICLOCKWISE until the multimeter stops buzzing.
Leave the rod nut loose to determine the end-of-travel points.
M N
Rc Rc
Ra Ra
+ E -
Ω
V
After adjusting the travel end points, run travel self-learning from the control panel, following the instructions in the control panel manual.
