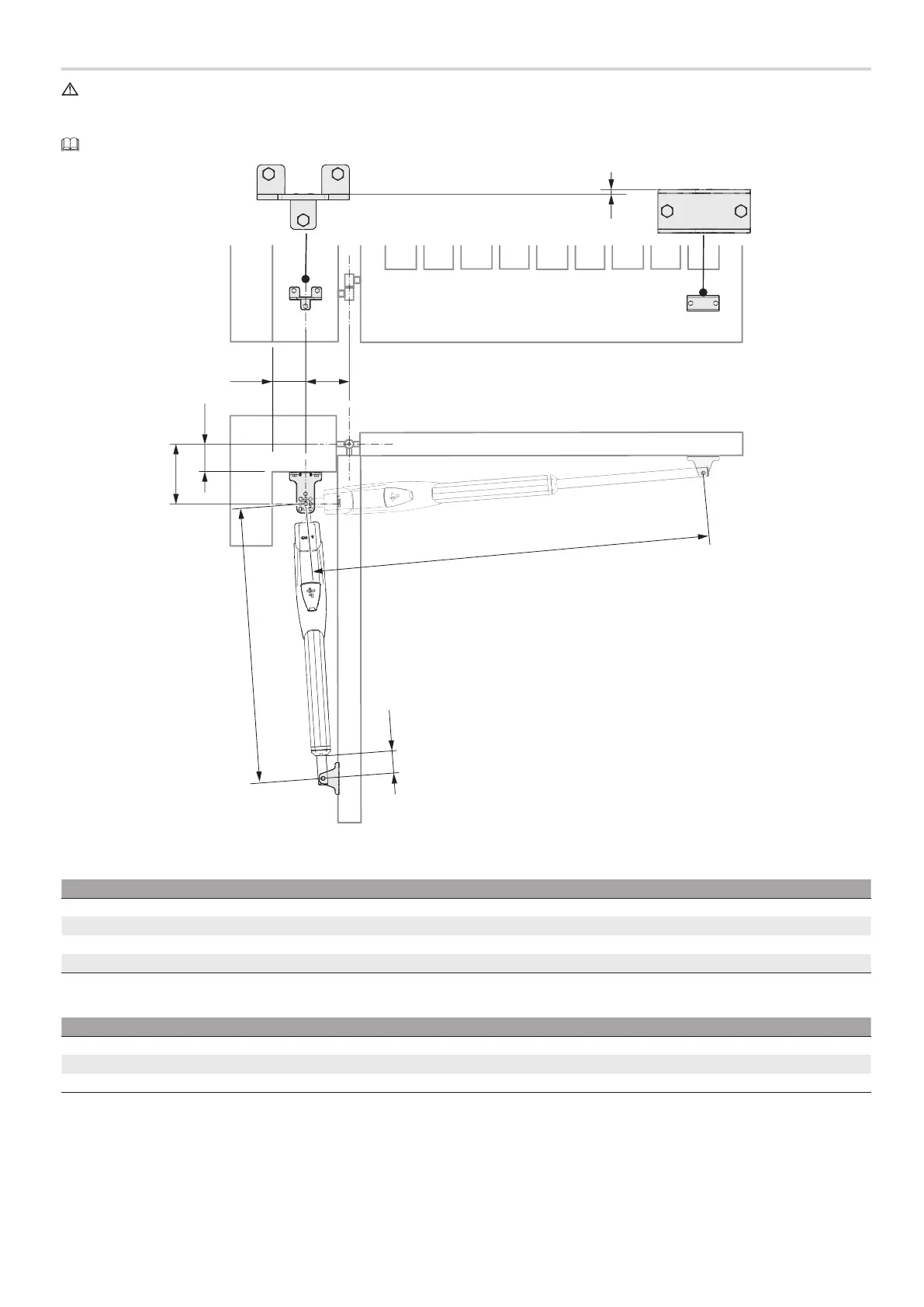

Deciding where to fasten the brackets
Install with the gate open.
Manually open the gate leaf to 90° or 120°.
First determine where the gate bracket needs to be positioned, then where the post bracket needs to be positioned.
Respect the values indicated in the table.
A
C
B
≥60
~60
E
F
5
ATS30DGS ATS30DGR ATS30DGM
Gate-leaf opening (°) A B E F Max. C
90° 130 130 960 1220 50
90° 150 220 910 1290 150
90° 120 270 895 1300 200
120° 180 130 910 1300 50
ATS50DGS ATS50DGM
Gate-leaf opening (°) A B E F Max. C
90° 200 200 1030 1430 150
90° 200 270 1030 1510 200
120° 200 140 1030 1460 70
