CAME C-BX Installation Manual

#!-%
#!-%
Page 21 - Manual FA01734-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

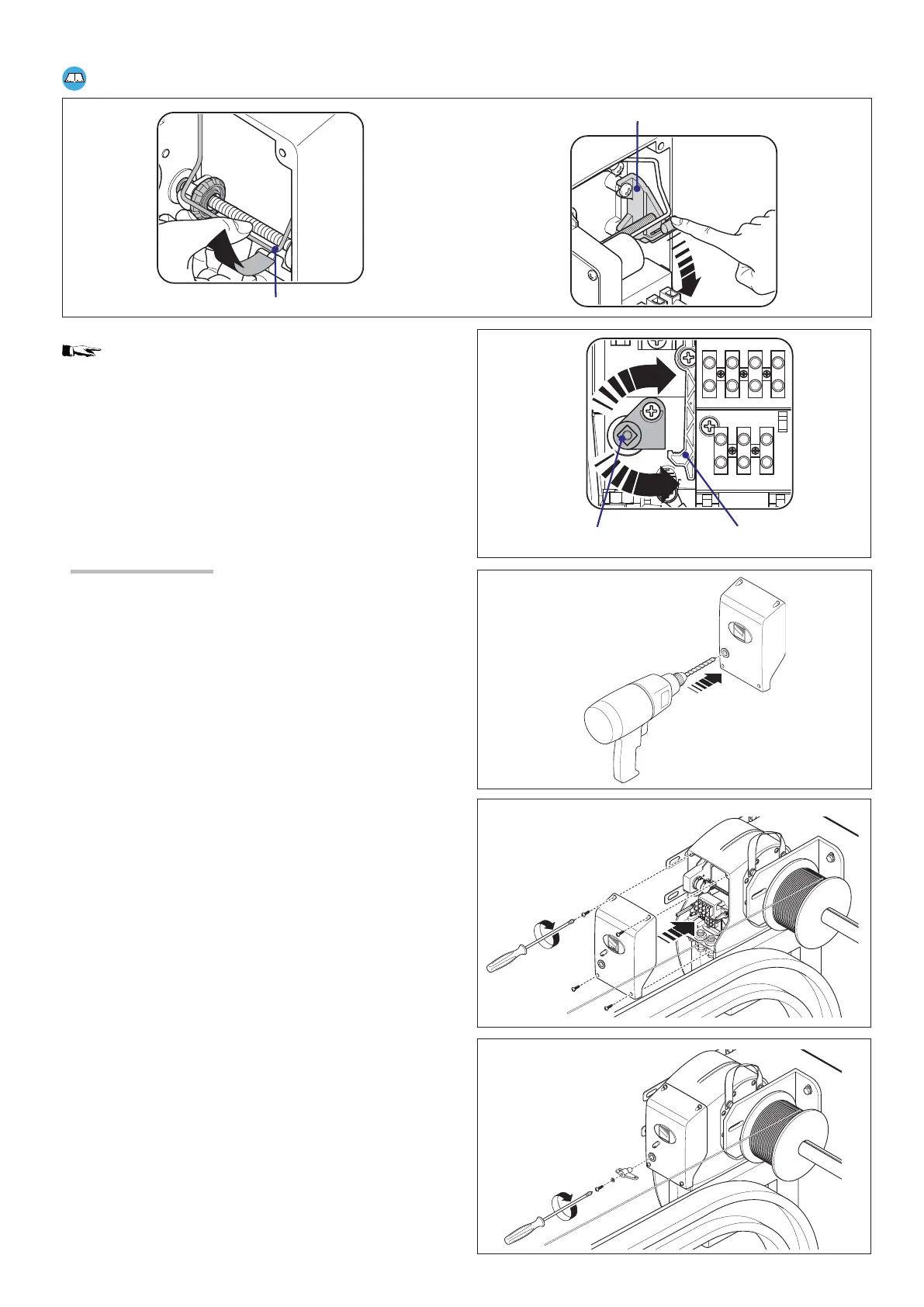

Endpoint spring
Support bracket
Safety lever
Release lever
Raise the endpoint spring, detach it from the support bracket and lower i tonto the cog wheel.
Do not detach the endpoint spring from the support bracket, if the gearmotor is installed on to large, sliding or folding doors.
Make sure the release rod is free of the safety lever.
the safety lever lets you activate the (CMS or C002) emergency
release only with the door closed.
Mounting the cover
1) Once you have fi nished all installation operations and electrical
connections, drill a hole in the cover, where shown, using a 13,5 Ø bit.
2) Secure the cover using the four issued screws.
3) Insert the release lever into the hole and secure it using the screw
and nut.
