2- 07/2016 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.
LEGEND
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
UNLESS OTHERWISE STATED, THESE OPERATIONS APPLY TO ALL MODELS.
THE MEASUREMENTS, UNLESS OTHERWISE STATED, ARE IN MILLIMETERS.
DESCRIPTION
The operator is made up of a gearmotor, a control board with transformer, a slide guide with either a belt or
chain transmission system, a transmission arm and an ABS casing with display for keypad programming and
an LED courtesy light.
Intended use
The V6000 operator is designed to power overhead and sectional garage door used in homes and apartment
buildings.
Any installation and/or use other than that specified in this manual is forbidden.
Limits to use
Type V6000
Door surface area (m
2
)9
Maximum height of counterbalanced overhead doors (m) 2.4
Maximum height of spring-balanced overhead doors (m) 3.25
Maximum height of door (m) 3.20
Technical data
Type V6000
Protection rating (IP) 40
Power supply (V - 50/60 Hz) 230 AC
Power supply motor (V) 24 DC
Stand-by absorption (W) 7
Maximum power of the accessories (W) 35
Nominal power (W) 100
Opening speed (m/min) 6
Traction force (N) 600
Operating temperature (°C) -20 ÷ +55
Apparatus class
I
Weight (Kg) 4.9

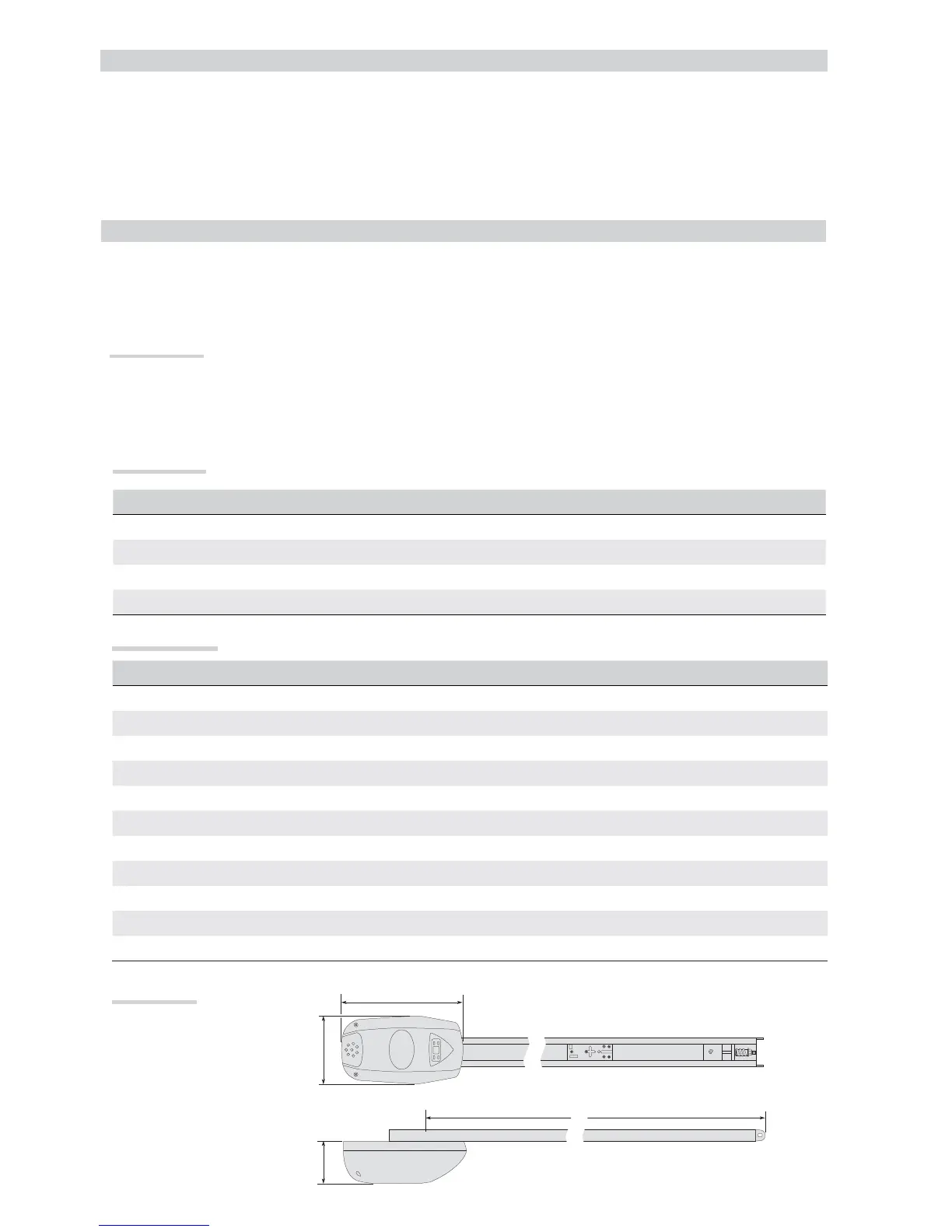

Dimensions
