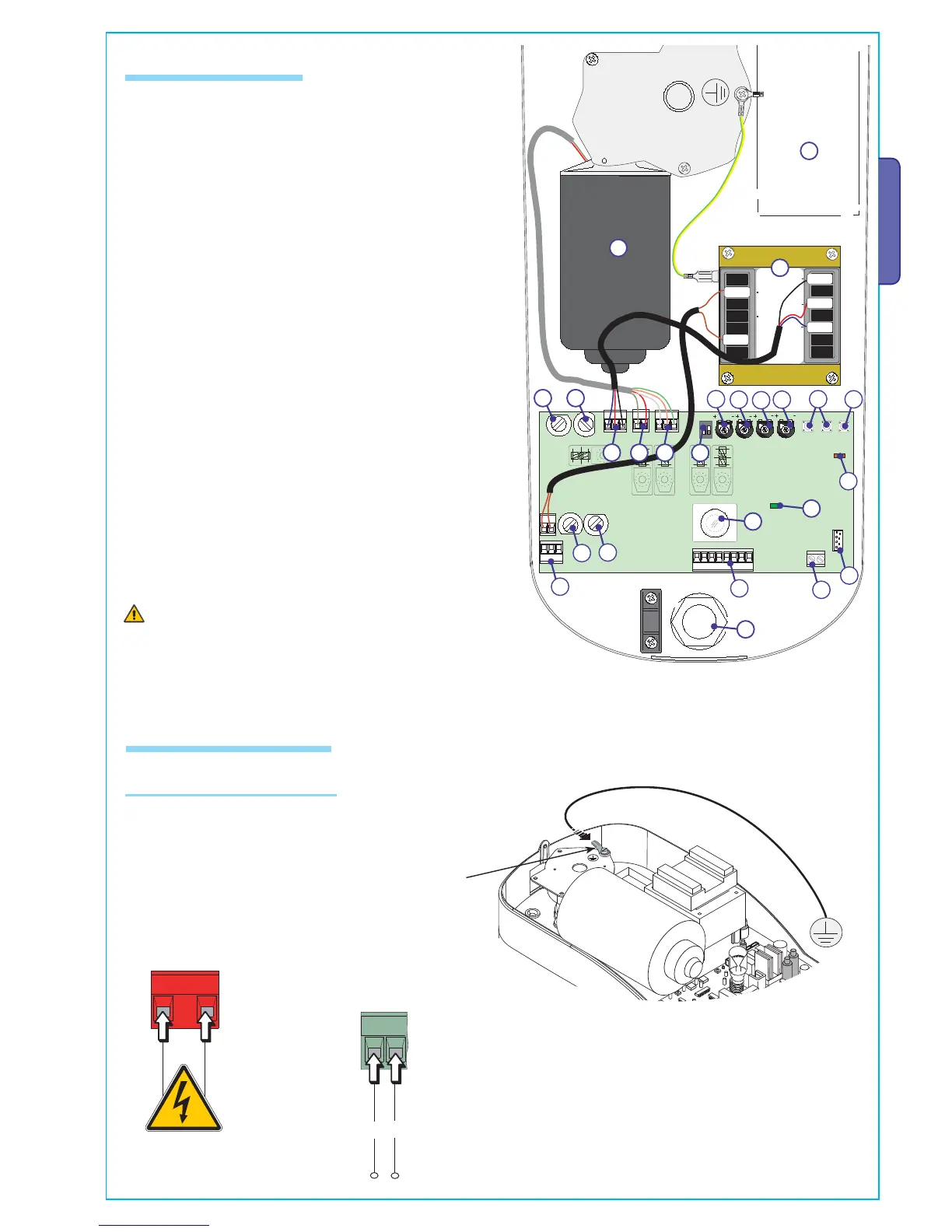

6.2 Main components
1) Line fuse 1.6A
2) Emergency batteries’ slot
3) Gearmotor
4) Transformer
5) Transformer connection terminal board
6) Motor fuse 8A
7) Gearmotor connection terminal board
8) Encoder connection terminal board
9) Signal Led for radio-code and encoder programming
10) Radio-code save button
11) SLOW. SENS: adjustment of amperometric sensitivity during closing
phase
12) TCA Trimmer: adjustment of automatic closing cycle
13) CL. SENS Trimmer: adjustment of amperometric sensitivity during
closing phase
14) OP. SENS Trimmer: adjustment of amperometric sensitivity during
opening phase
15) Command buttons for end-stop adjustment
16) Function selector
17) Courtesy light
18) Accessories’ fuse 3,15A
19) Central control unit fuse 315mA
20) Accessories’ and control device connection terminal board
21) “AF” radiofrequency board socket
22) Electrical cable sockets
23) Led indicator for power-on
24) Power supply terminal board
25) Radio antenna terminal board
6.3 Electrical Connections
Power supply and accessories
Teminal board for accessories’ power supply:
- at 24V a.c. normally;
- at24V d.c. when the emergency batteries are in operation;
Maximum total power allowed: 40W.
Buttonhole terminal for earth connection
Power supply
230V a.c. - 50/60 Hz
Warning! Before doing any work on the automation kit, cut off the pwer
supplì and disconnect the emergency batteries (if connected).
