CAME V700E User Manual

1
2
2
1
#
#
Pag.
3
3 -
Manual code
:
119EU87
119EU87
ver.
0.1
0.1
01
/
2009
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
Important! Check that the safety equipment and accessories are CAME originals; this is a guarantee that also makes the system easy
to set up and upkeep.

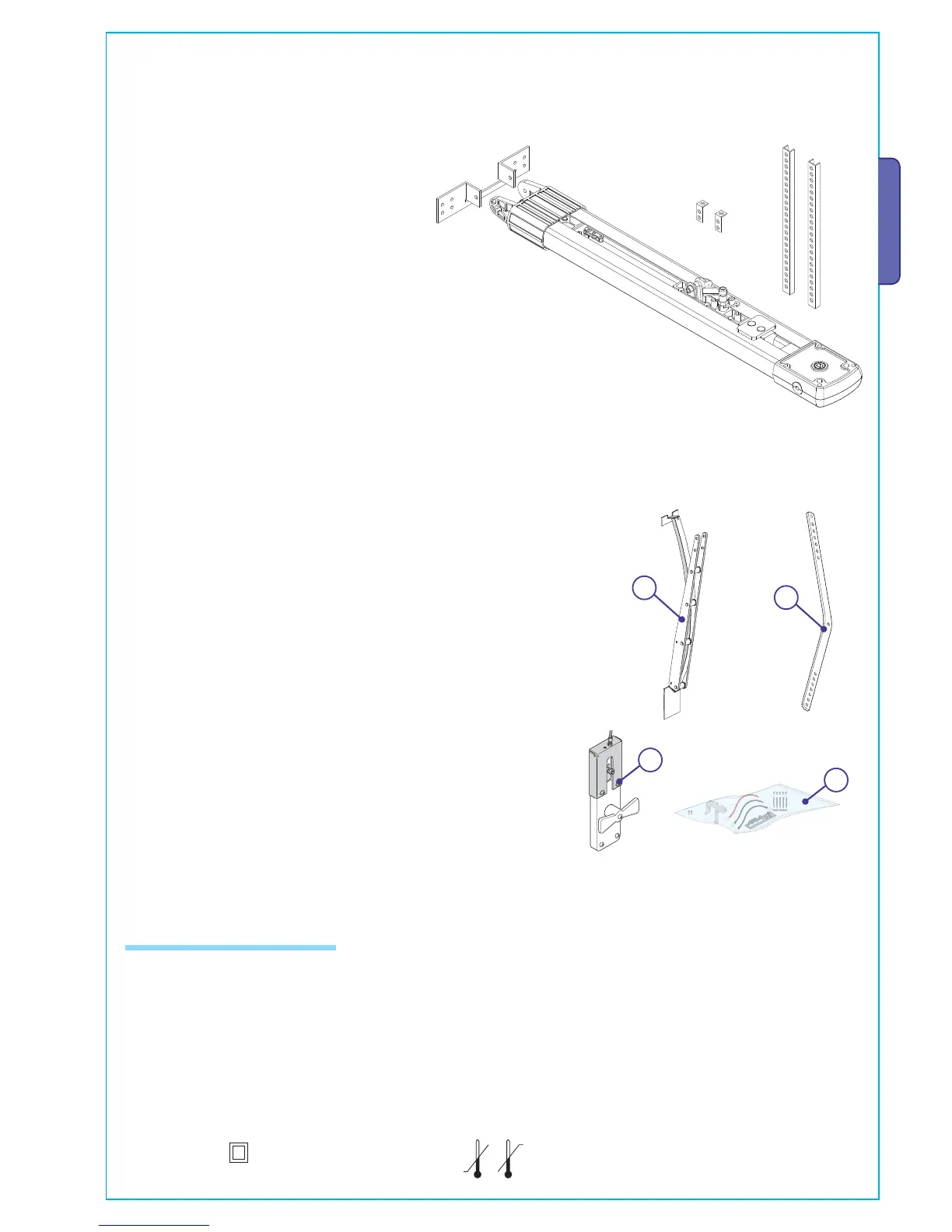

TRANSMISSION GUIDES
V0679 - Chain guide unit L= 3.02 m
V0684 - the same as the V0679 but two parts need assembling
- counterweighted overhead doors up to 2.40 m in height;
- Spring balanced overhead doors up to 2.25 m in height;
- sectional doors* up to 2.20 m in height.
V0682 - Chain guide unit L= 3.52 m
- Spring balanced overhead doors up to 2,75 m in height;
- sectional doors* up to 2.70 m in height.
V0683 - Chain guide unit L= 4.02 m
- Spring balanced overhead doors up to 3.25 m in height;
- sectional doors* up to 3.20 m in height.
V0685 - Belt guide unit L= 3.02 m
V0687 - the same as the V0685 but two parts need assembling
- counterweighted overhead doors up to 2.40 m in height;
- spring balanced overhead doors up to 2.25 m in height;
- sectional doors* up to 2.20 in height.
V0686 - Belt guide unit L= 3.52 m
- spring balanced overhead doors up to 2.75 m in height;
- sectional doors* up to 2.70 m in height.
V0688 - Belt guide unit L= 4.02 m
- spring balanced overhead doors up to 3.25 m in height;
- sectional doors* up to 3.20 m in height.
* see page 5 (5.4 Applicative examples).
4.3 Technical specifications
GEARMOTOR V700E
Power supply: 230V A.C. 50/60Hz
Motor power supply: 24V D.C.
Max. power of 24V accessories: 40W
Rated power: 260W
Max. torque: 850Nm
Average speed: 6m/min
Operative intermittence: 50 %
Protection level: IP40
Weight: 5,8 kg
Insulation class:
||
OPTIONAL TRANSMISSION ARMS
1) 001V201 - Transmission arm for counterweighted overhead garage doors.
2) 001V122 - Extra-strength transmission arm for sectional garage doors;
OPTIONAL ACCESSORIES
1) 001V121 - Pull-string release mechanism to affix onto the handle;
2) 001V0670 - Emergency battery start-up card, houses 2 (12V-1,2Ah not
included) batteries ;
