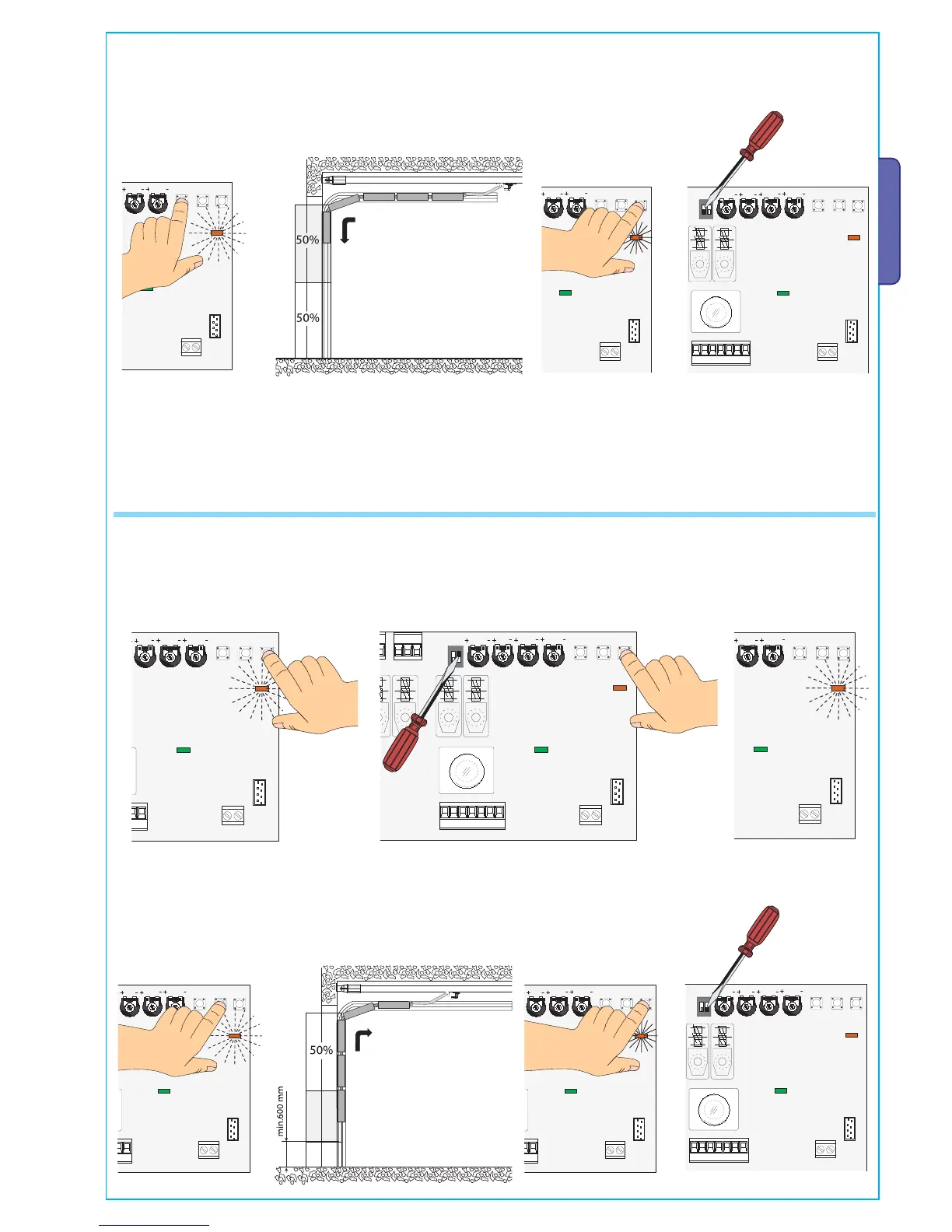

7.4 Programming for closing deceleration (600 mm from the closing stop minimum, or 50% of the opening/closing arc)
With the door completely closed, press and keep pressed the ENC/RADIO button (the signalling programming LED fl ashes quickly).
Set DIP switch 2 to ON (the signalling LED turns off).
Release the ENC/RADIO button (the signalling LED fl ashes quickly).
Press the OP/CL button until the gate reaches the fi nal point of deceleration you require; then press the ENC/RADIO button until the
signalling LED staus on ( the programming procedure is completed succesfully).
Set DIP switch 1 back to OFF.
Press the OPEN button until the door reaches the point of beginning deceleration you require; then press the ENC/RADIO button until the
signalling LED stays on (the programming procedure is successfully completed).
Set DIP switch 2 back to OFF.
