N.B.: if the cable length differs from that specified in the table, then you must determine the proper cable diameter in the basis of the actual
power draw by the connected devices and depending on the standards specified in CEI EN 60204-1.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual power draw and
distances.
When connecting products other than those mentioned in this manual please see the documents provided with the products themselves.

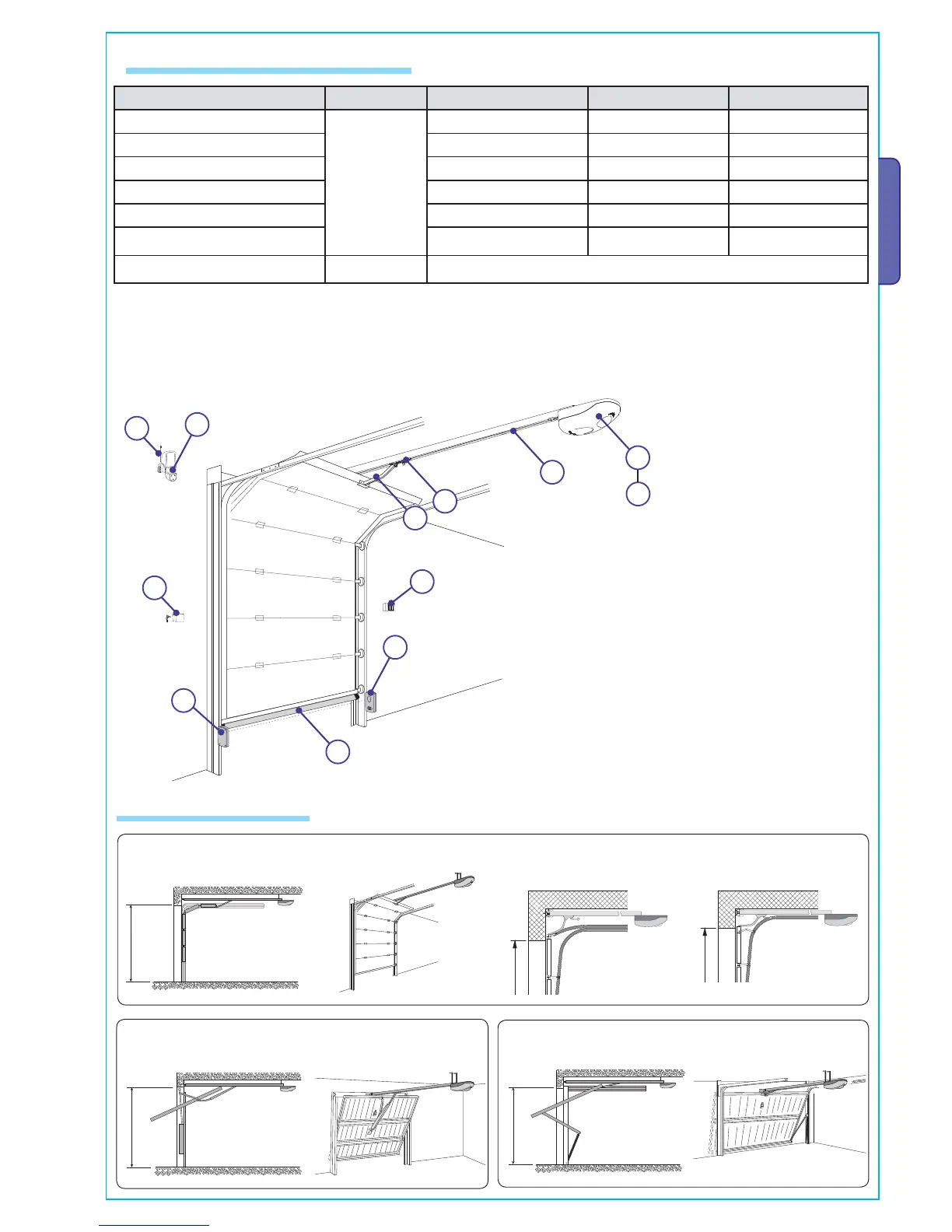

5.3 Cable list and minimum thickness
Connections Type of cable Length of cable 1 < 10 m L. of cable 10 < 20 m L. of cable 20 < 30 m
230V power supply
FROR CEI 20-22
CEI EN
50267-2-1
3G x 1,5 mm
2
3G x 2,5 mm
2
3G x 4 mm
2
Flashing lamp 2 x 0,5 mm
2
2 x 1 mm
2
2 x 1,5 mm
2
Photocell transmitters 2 x 0,5 mm
2
2 x 0.5 mm
2
2 x 0,5 mm
2
Photocell receivers 4 x 0,5 mm
2
4 x 0,5 mm
2
4 x 0,5 mm
2
24V power supply to accessories 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1 mm
2
Control and safety devices 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
Antenna connection RG58 max. 10 m
1) Gearmotor unit
2) Incorporated control panel with radio transmitter
3) Transmission guide
4) Release device
5) Standard transmission arm
6) Key-switch selector
7) Flashing light movement indicator
8) Tuned antenna
9) Safety photocells
10) Indoor push button control
11) Safety sensitive profi le
5.4 Applicative examples
* single-guide sectional door
* double-guide sectional door
COUNTERWEIGHTED PARTIALLY RETRACTABLE SWING OUT
OVERHEAD DOOR
SPRING BALANCED FULLY RETRACTABLE SWING OUT OVERHEAD DOOR
SECTIONAL DOOR
