0.1
01
/
2009
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

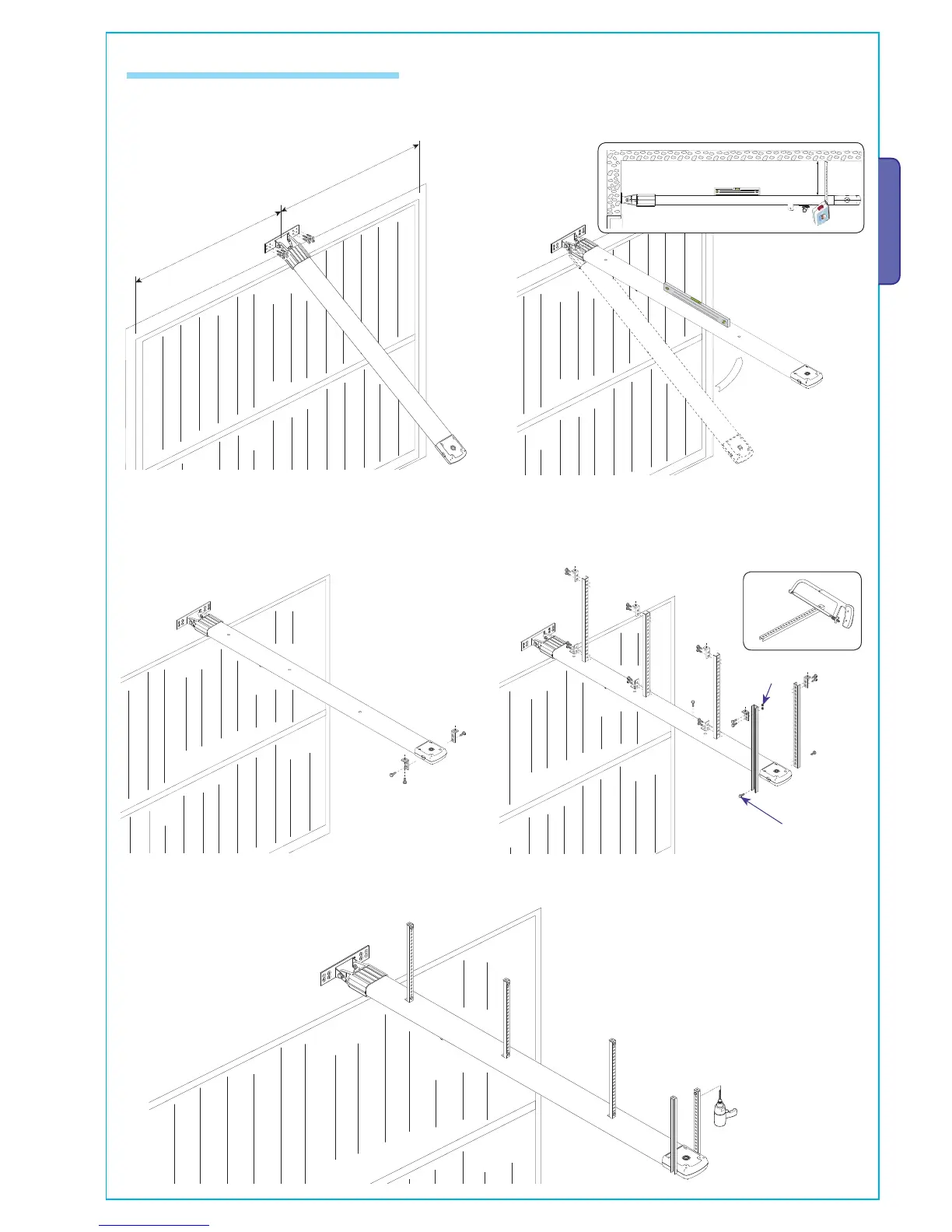

1) Fasten the transmission guide to the centre of the doorway using the proper screws.
Raise the guide until it is horizontal with the ceiling so as to choose the proper type of fastener.
2) If the angle brackets are not suffi cient, cut the tension brackets down to the right length and fasten them to the ceiling.
N.B.: to strengthen the bar additional angle or tension brackets may be installed (item code 119RIE024 and 119RIE028)
3) Fasten the transmission guide to the ceiling using the proper bolts.
5.6 Fastening the transmission guide
