Page 13 - Manual FA01176-EN - 02/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

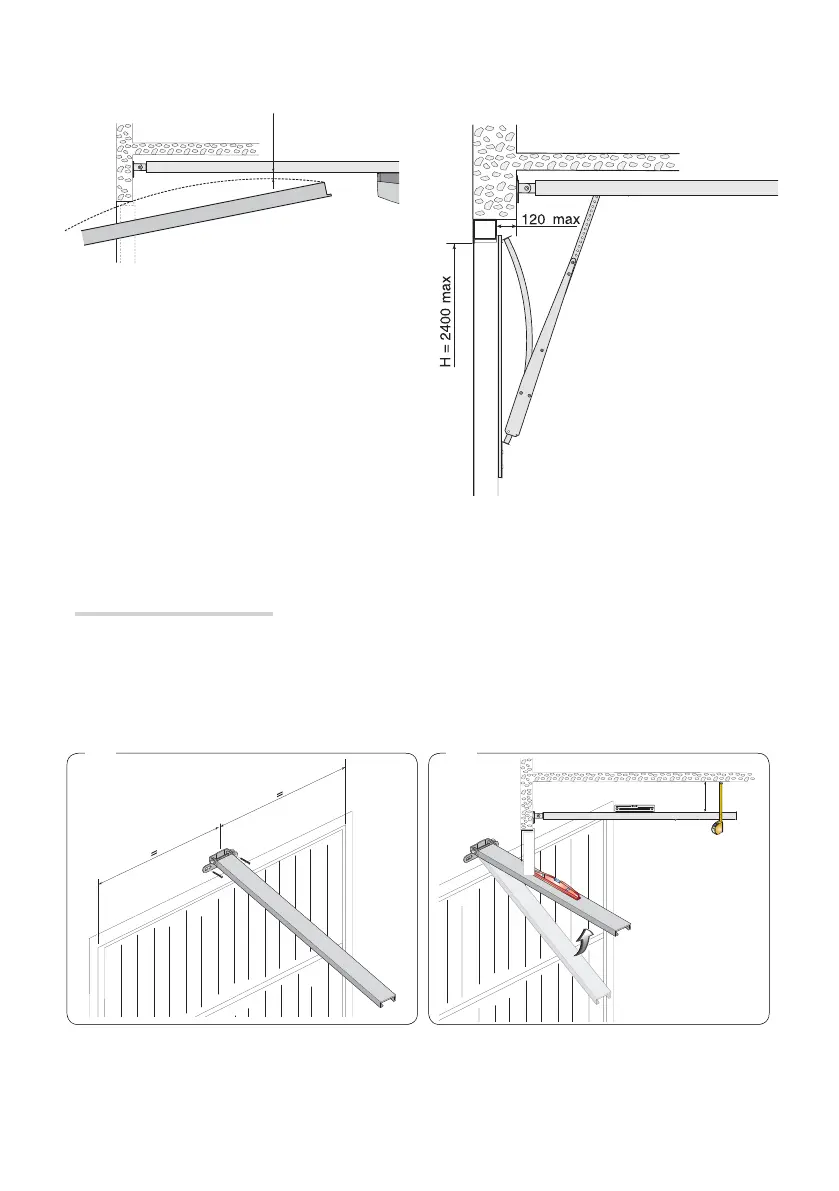

For protracting overhead doors, keep the guide 20 mm from the opening high-point.
☞
For protracting, partially retracting overhead doors, use the V201 transmission arm (optional accessory).
Fastening the traction guide
Fasten the traction guide to the center of the doorway, using suitable screws.
Raise the guide and position in horizontally to measure the distance to the ceiling, then fasten it.
Install the support braces
❶ and the U brace ❷ on the guide.
p. 13 -
Manual
FA01176-EN - 02/2019 - © CAME S.p.A. -
The contents of this manual may be changed, at any time, and without notice. - Original instructions
