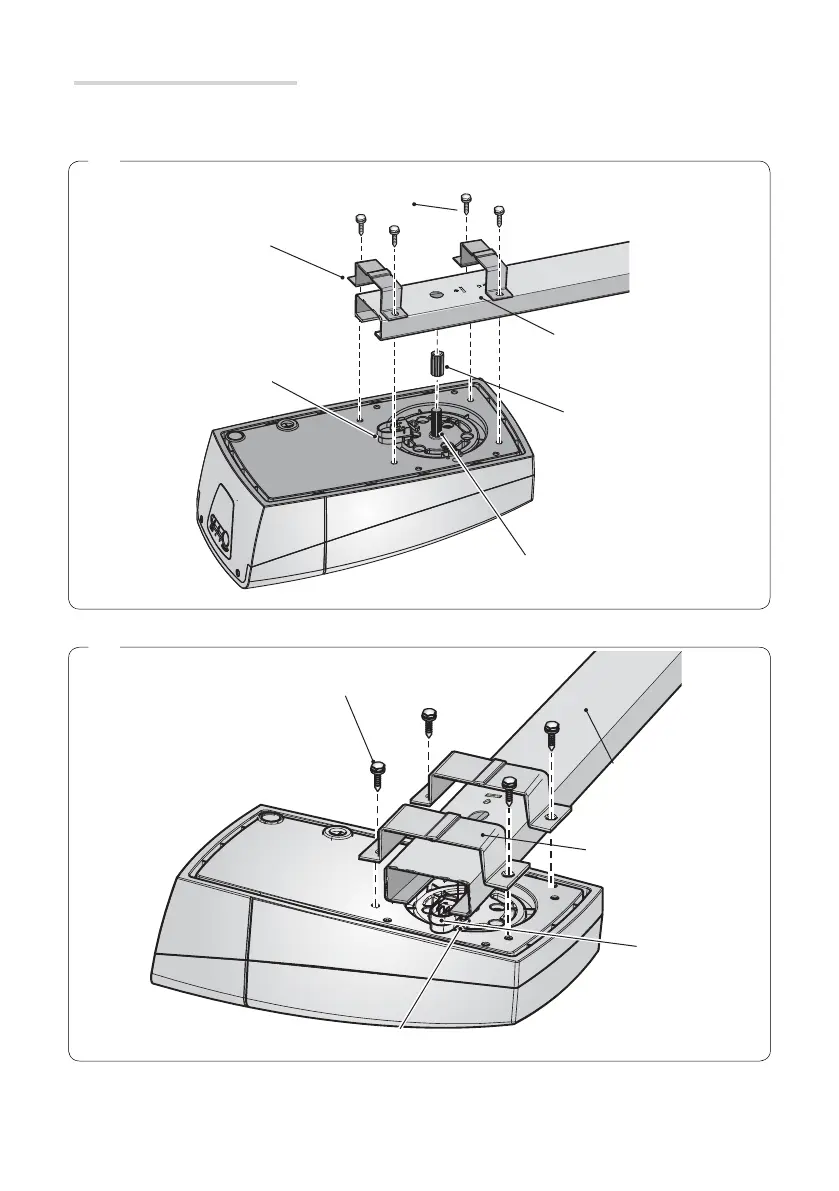

Fitting the operator to the guide
Fit the adapter to the drive shaft.
The operator can be fi tted onto the guide: either in standard position
or at a right angle .
⚠ If the operator is to be fi tted at a right angle, before installing it, set the micro-switch (see the corresponding
paragraph).
Self-drilling 6 x 15 screw
U-shaped brace
Guide
Drive shaft with adapter
Micro
Guide
Motor shaft
Self-drilling 6 x 15 screw
U-shaped brace
Micro
Adapter
