❹
❺
❸
❶
❷
⓫ ⓬ ⓭ ⓮
⓯
❻
❼
❽
❾ ❿
⓰
Page 7 - Manual FA01176-EN - 02/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

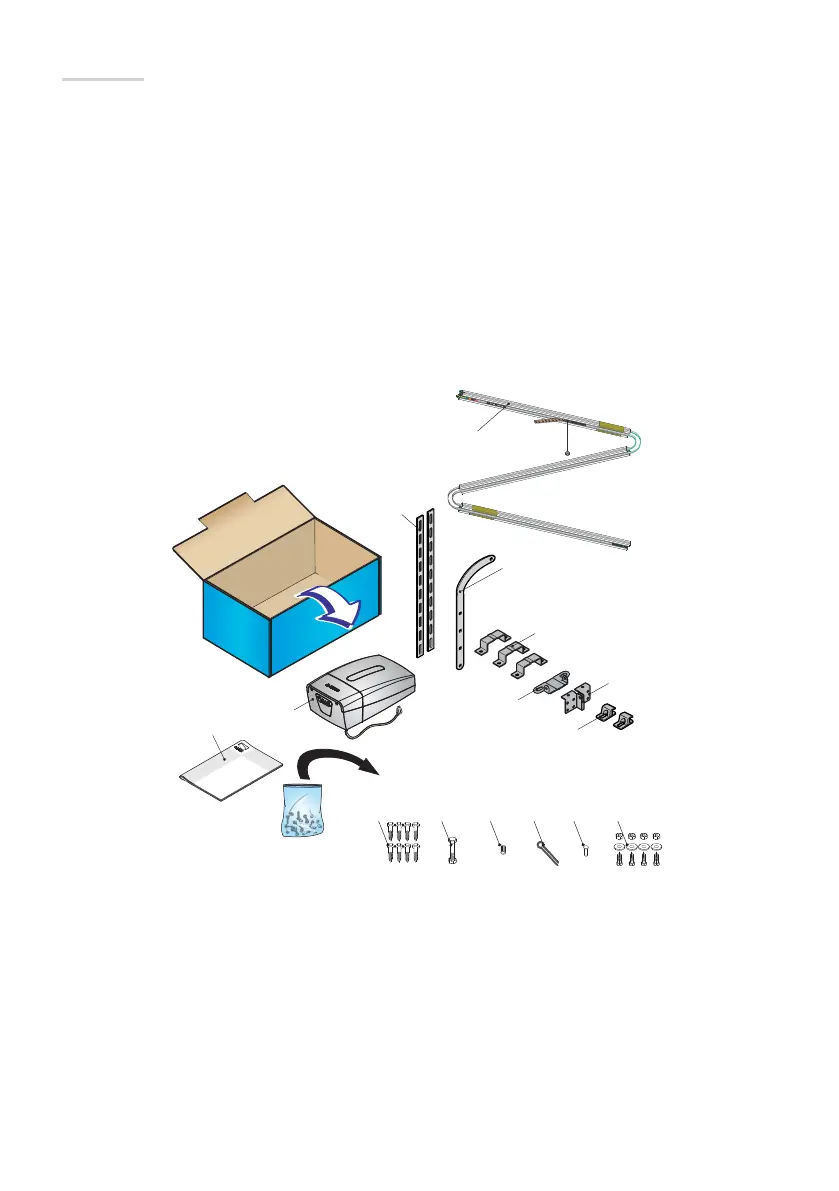

Packing list
❶ one Operator
❷ one Installation Manual
❸ two anchoring perforated-plates.
❹ one Curved lever
❺ two support braces
❻ three U-shaped braces
❼ one guide-fitting brace
❽ one door fitting brace
❾ eight self-drilling hexagonal head M6x15 screws
❿ one hexagonal M6x80 nut and bolt
⓫ one (ø8x25) drive-shaft adapter
⓬ one 3x20 linchpin
⓭ one Pin
⓮ four M8x20 hexagonal screws with washers and
nuts
⓯ one Slide guide (only in kit with 3 pieces of
guide 1 meter long)
⓰ Power supply cable
p. 7 -
Manual
FA01176-EN - 02/2019 - © CAME S.p.A. -
The contents of this manual may be changed, at any time, and without notice. - Original instructions
