Page 9 - Manual FA01812-EN - 06/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

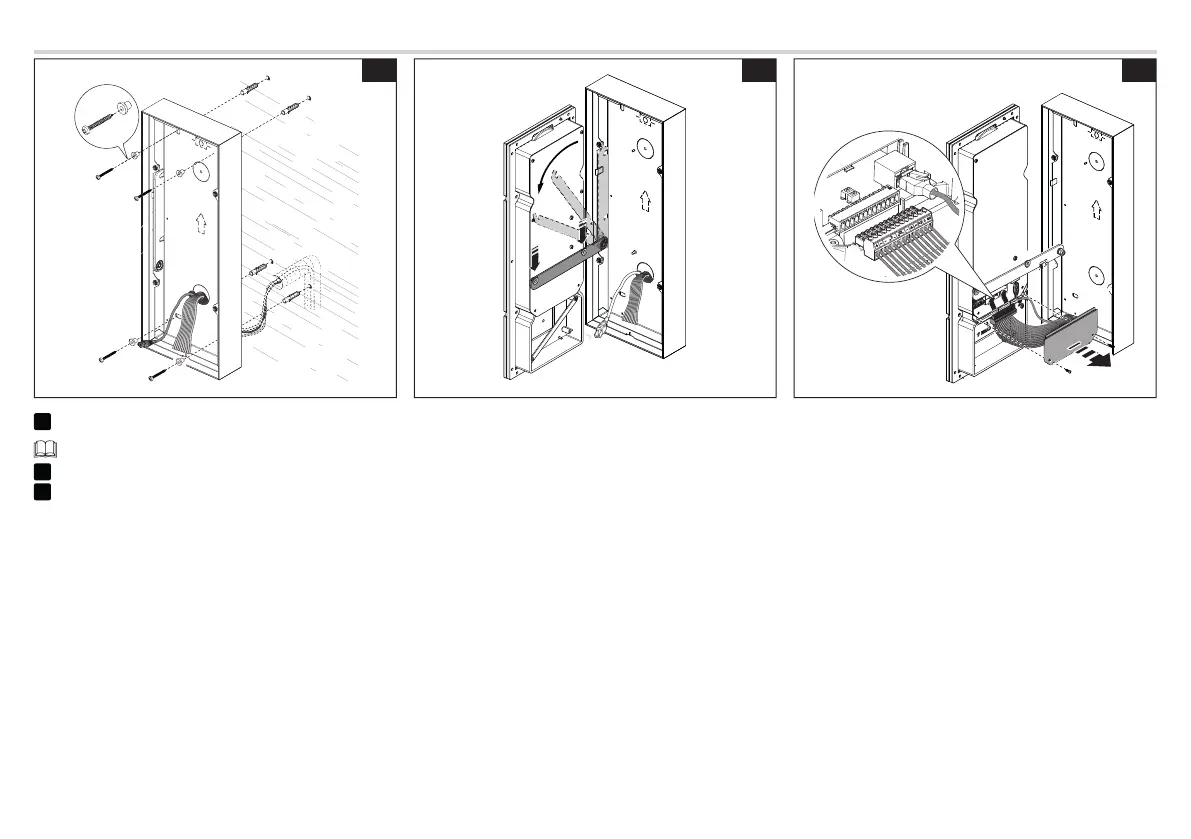

Wall-mounted installation (XVP F)
I J
B
K
I
Remove one or more of the back knockouts and thread the pipe containing the wires for the system through it/them. Secure the back to the wall using the plugs and screws supplied.
Secure the box at the desired height taking into account the TOP indication and the positioning of the camera lens.
J
Lower the bracket and hook the front frame onto the support.
K
Remove the terminal cover. Make the connections.
