2) The AF board should AL WAYS be in sert ed
when the pow er is off.

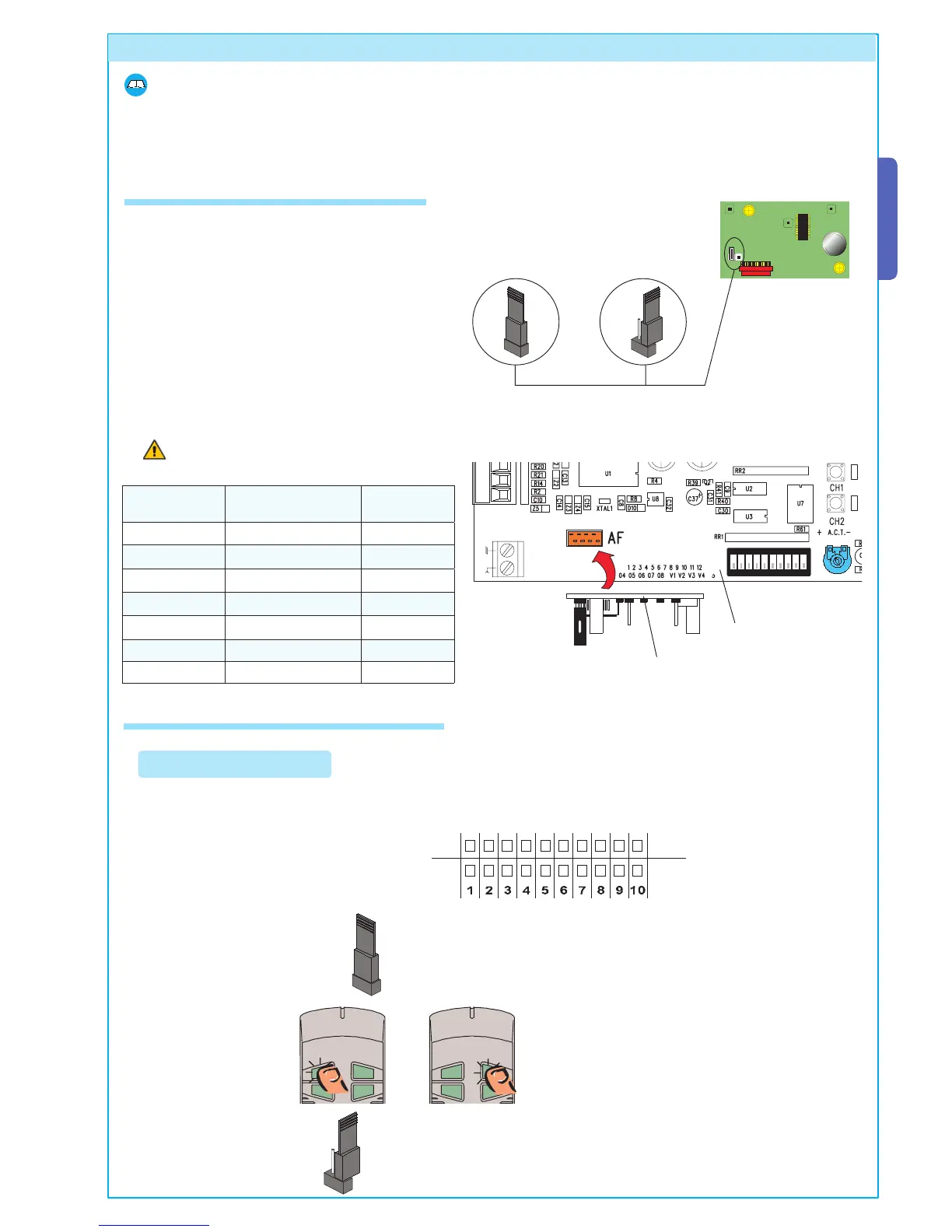

1) On AM transmitters operating at 433.92 MHz (TOP
and TAM series), position the jumper connection on
circuit card AF43S as shown on the sheet.
Frequency/MHz Radiofrequency board Transmitter
FM 26.995 AF130 TFM
FM 30.900 AF150 TFM
AM 26.995 AF26 TOP
AM 30.900 AF30 TOP
AM 433.92 AF43S / AF43SM TAM / TOP
AM 433.92 AF43SR ATOMO
AM 40.685 AF40
TOUCH
Standard encoding procedure T262M - T264M - T2622M - T302M - T304M - T3022M
1 assign a code (also on file)
2 connect encoding jumper J
3 register code
4 disinserire jumper J
TOP TAM
/.
/&&
0
0
Press P1 or P2 in sequence in order to register the
code; at the tenth pulse, a double beep will confi rm
that registration has occurred
“AF” board
Mother board
TOP QUARZATI SERIES
Read the three steps below before beginning installation procedures:
- prepare the radio board (paragraph 6.1);
- procedure for codifying the transmitter (paragraph 6.2);
- memorizing the code on the command board (paragraph 6.3).
6.1 Prepare the radio board (AF)
6 Installation procedure of the transmitter for remote control
6.2 Procedure for codifying the transmitter
