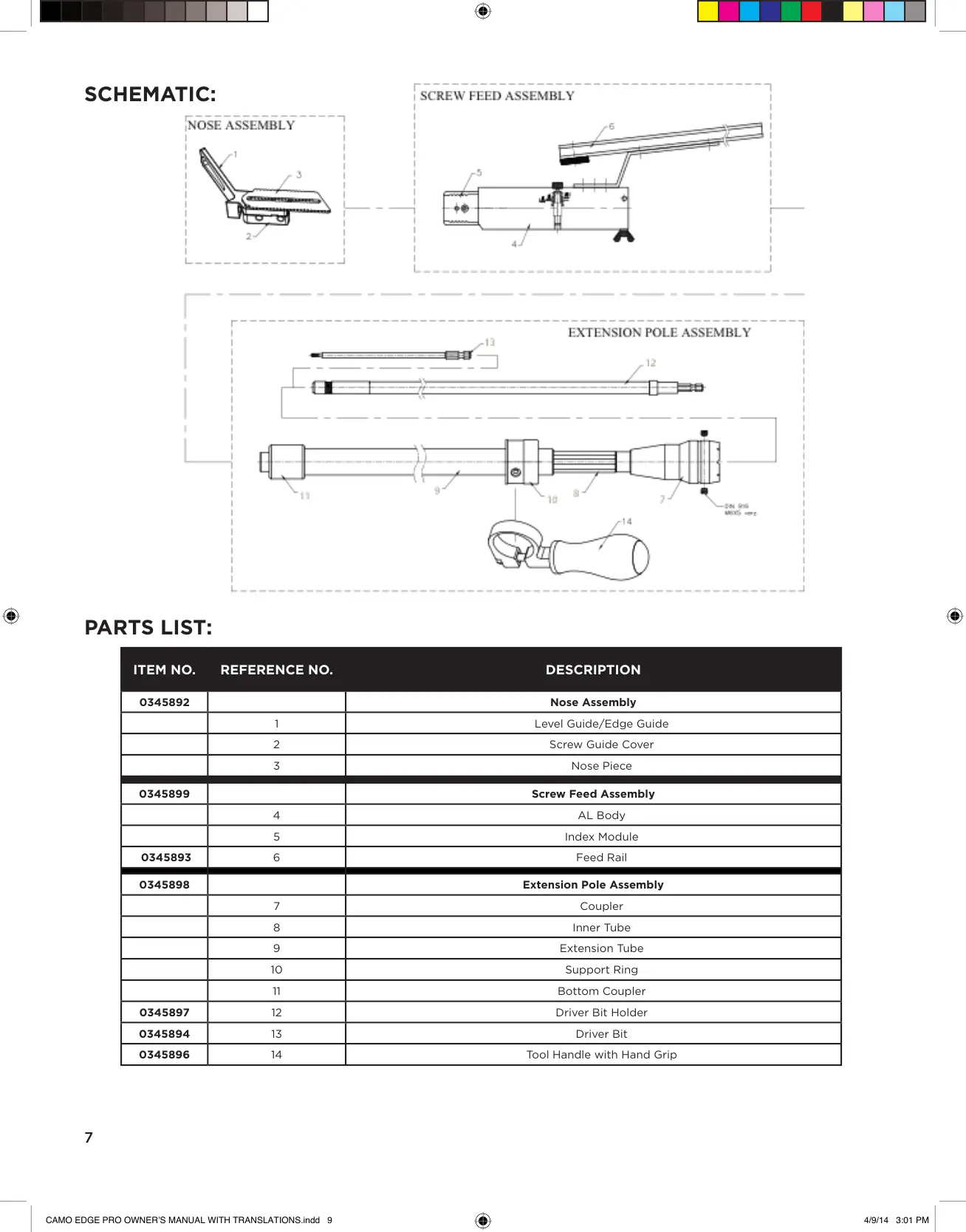

Camo EDGE PRO - System Schematic Diagram; Parts List

SCHEMATIC:
PARTS LIST:
ITEM NO. REFERENCE NO. DESCRIPTION
0345892 Nose Assembly
1 Level Guide/Edge Guide
2 Screw Guide Cover
3 Nose Piece
0345899 Screw Feed Assembly
4 AL Body
5 Index Module
0345893
6 Feed Rail
0345898 Extension Pole Assembly
7 Coupler
8 Inner Tube
9 Extension Tube
10 Support Ring
11 Bottom Coupler
0345897
12 Driver Bit Holder
0345894
13 Driver Bit
0345896
14 Tool Handle with Hand Grip
