Wall Mounting
Note
Assembly is required. Installation must be carried out by qualifed personnel only. Incorrect assembly
can result in severe personal injury and property damage (if you intend to install this product yourself,
you must check for installations such as electrical wiring and plumbing that may be buried inside the
wall). The supplied wall brackets are only for use on vertical walls constructed from solid brick, solid
concrete, solid wood, and solid wooden battens. It is the installer‘s responsibility to verify that the wall
will safely support the total load of the Soundbar and wall brackets. Additional tools (not included)
are required for the installation. Do not overtighten screws. Keep this instruction manual for future
reference.

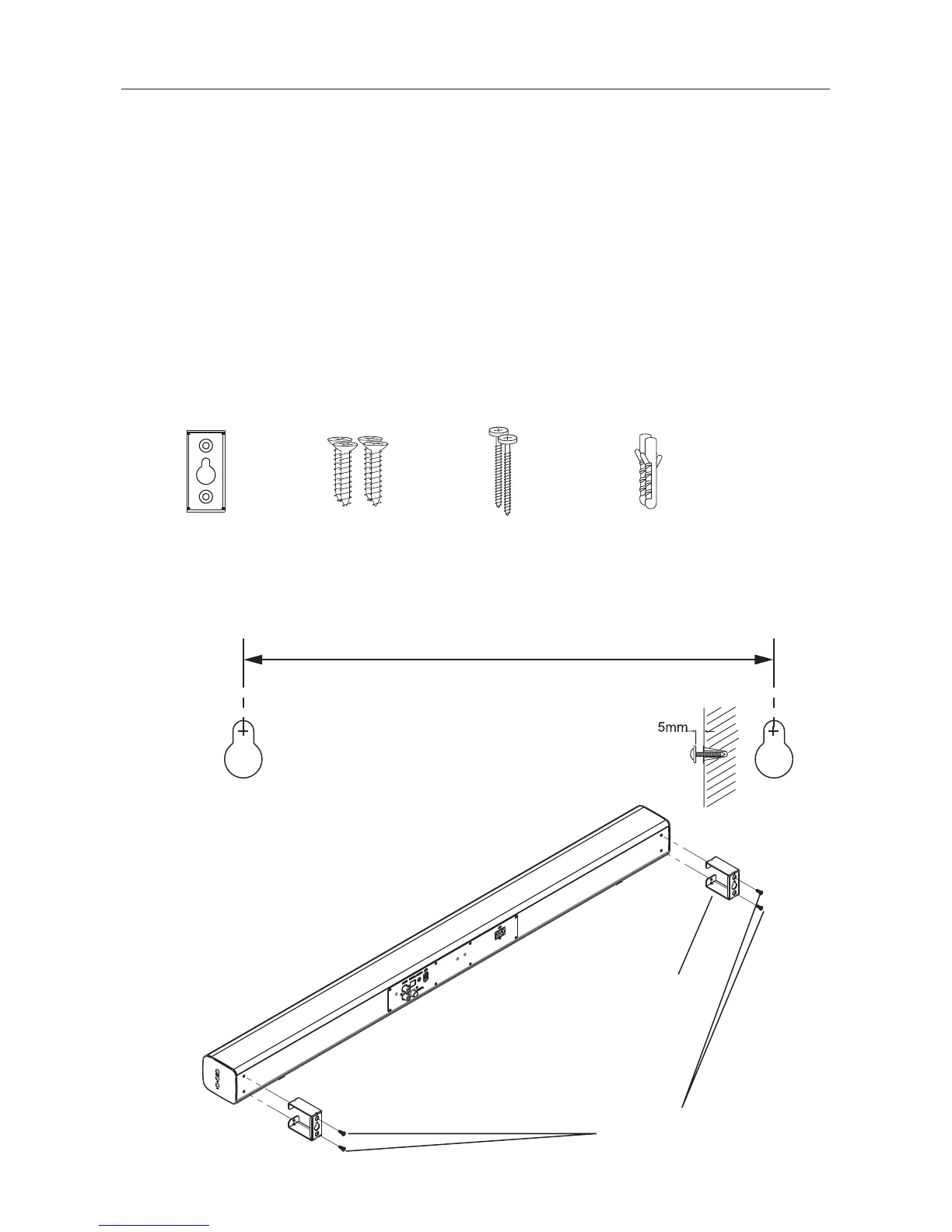

1.Parts
Screws B x 2
Dowels B x 2
Bracket x 2
Screws A x 4
2.
Drill holes, install dowels B x 2, screws B x 2.
Install screws A.
846mm
WALL
3.
9
Unit
Bracket
Screws A x 4
To Next Page
