Campomatic SB606 - Analogue inputs connection

Analogue inputs connection

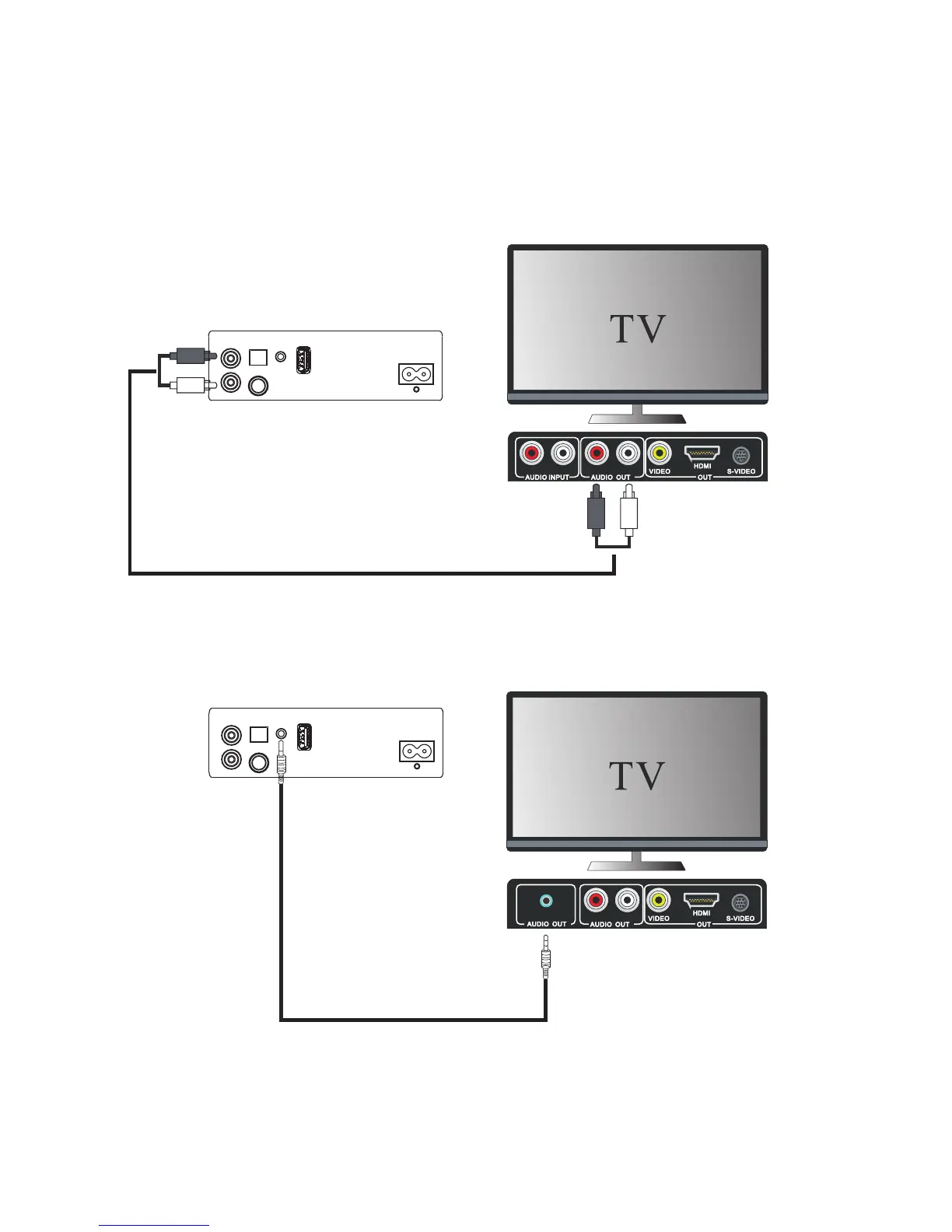

Connecting DVD player/TV outputs to analogue inputs from the sound board.
the sound board.
sound board inputs
DVD player / TV outputs
Connecting DVD player/TV outputs to analogue inputs from the sound board.
- Use a 3.5mm line-in cable (Not supplied) to connect the DVD player/TV outputs with the AUDIO
input socket from the sound board.
sound board inputs
DVD player / TV outputs
12
- Use a RCA audio cable to connect the DVD player/TV outputs with the AUX(L/R) input socket from
