MAINTENANCE PROCEDURES

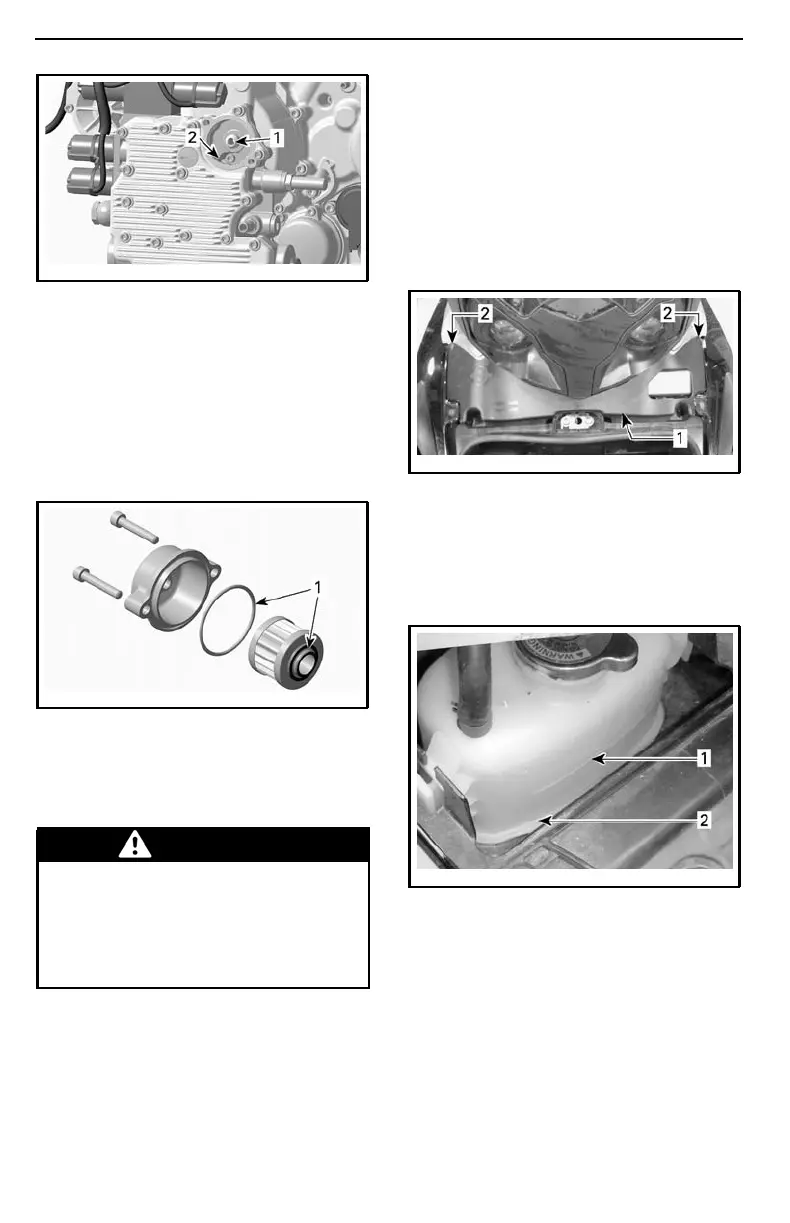

rmr2008-077-003_a
1. Oil outlet orifice to the hydraulic control
module lubrication system
2. Oil inlet orifice to the oil pump
2. Install a NEW O-ring on oil filter
cover.
To ease assembly and prevent dis-
placement of the O-ring during installa-
tion, slightly oil filter and O-ring. Refer
to following illustration.
rmr2008-077-004_a
1. Apply oil here
Engine Coolant
Engine Coolant Level Verification
WARNING
When opening the reservoir, the
coolant can be very hot and spray
out if the engine is hot. In order
to avoid getting burned, check the
coolant level when the engine is
cold.
The cooling system must be filled with
distilled water and antifreeze solution
(50% distilled water, 50% antifreeze).
For best performance, use BRP's pre-
mixed coolant (P/N 219 700 362).
With the engine cold, check the
coolant level as follows:
1.Parkthevehicleonafirm,levelsur-
face.
2. Open the front storage compart-
ment.
3. Pull out the service cover extremi-
ties with both hands.
rmo2008-001-022_a
1. Service cover
2. Service cover extremities
4. Check the coolant level on the right
hand side. Coolant must be visible
without exceeding the MAX. level
mark.
rmo2008-001-039_a
1. Coolant MAX. level mark
2. Coolant must be visible
5. If required, add coolant until it is vis-
ible in the reservoir without exceed-
ing the MAX. level mark. Use a fun-
nel to avoid spillage.
Do not overfill.
6. Reinstall the service cover.
