MAINTENANCE PROCEDURES

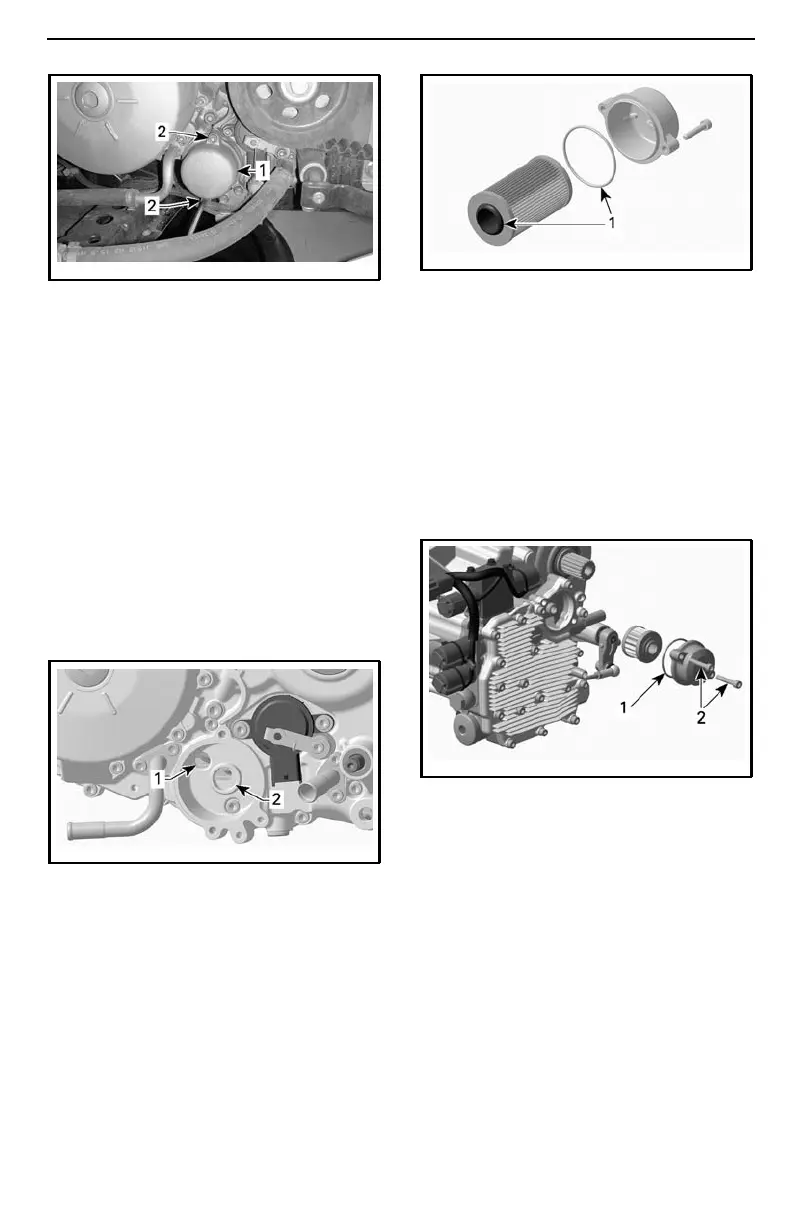

rmr2008-011-105_a
TYPICAL
1. Oil filter cover
2. Cover screws
3. Remove oil filter cover with O-ring.
Discard O-ring.
4. Remove oil filter.
5. Dispose filter as per your local envi-
ronmental regulations.
Oil Filter Installation
Installation is the reverse of the re-
moval procedure. However, pay atten-
tion to the following.
1. Check and clean the oil inlet and out-
let orifices in crankcase for dirt and
contaminants.
rmr2008-011-004_a
TYPICAL
1. Oil inlet orifice from oil pressure pump
2. Oil outlet orifice to engine lubrication system
2. Install a NEW O-ring on the oil filter
cover.
To ease assembly and prevent dis-
placement of the O-ring during installa-
tion, slightly oil filter and
O-ring. Refer
to following illustration.
rmr2008-011-005_a
1. Apply oil here
HCM Oil Filter(SE5 Model)
NOTE: The HCM (Hydraulic Control
Module) uses the same oil as the en-
gine, but has its own oil filter.
HCM Oil Filter Removal
1. Drain engine oil. Refer to
ENGINE
OIL CHANGE
section.
2. Remove oil filter cover screws.
rmr2008-078-013_a
1. Oil filter cover
2. Cover screws
3. Remove oil filter cover with O-ring.
Discard O-ring.
4. Remove oil filter.
5. Dispose filter as per your local envi-
ronmental regulations.
HCM Oil Filter Installation
The installation is the rever
se of the re-
moval procedure. Pay attention to the
following.
1. Check and clean the oil inlet and out-
let orifices in hydraulic control mod-
ule for dirt and contamina
tions.
_______________
97
