PROBLEMS
rmo2008-001-023_a

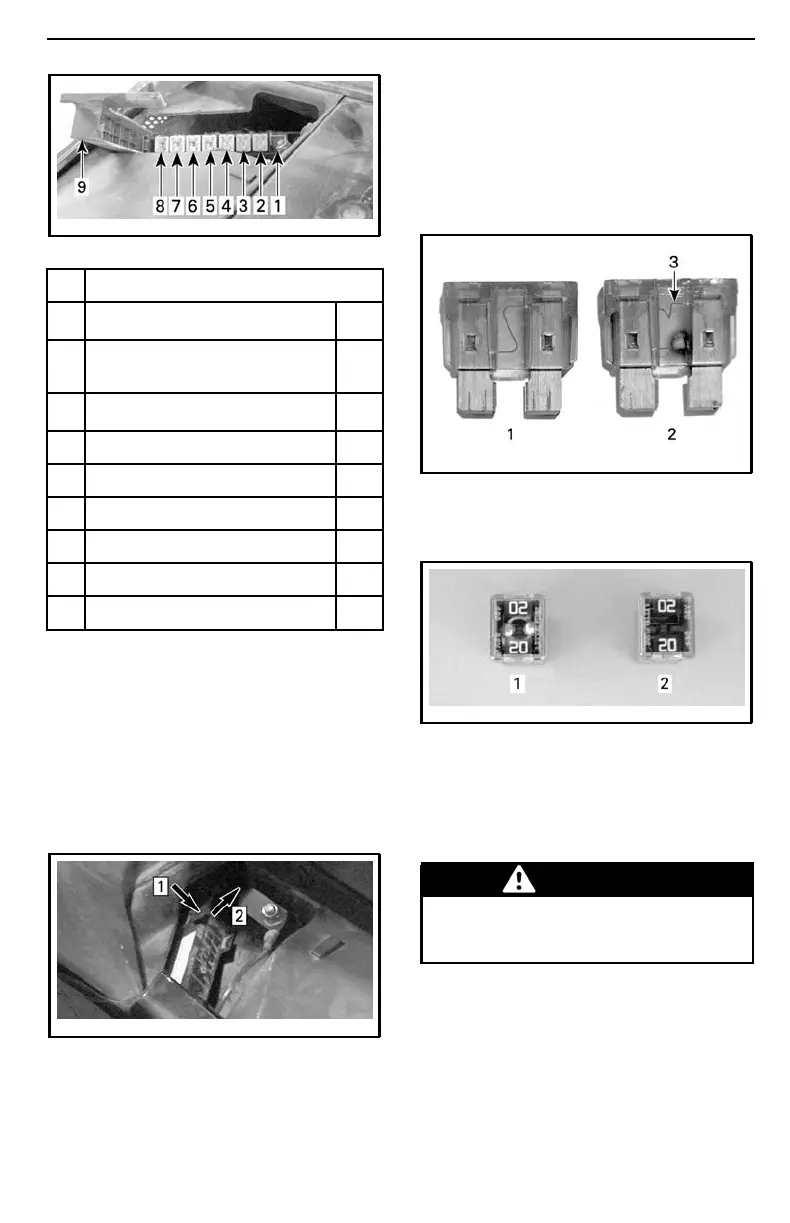

FUSES LOCATED UNDER THE SEAT
NO. DESCRIPTION
1
Empty
-
2
Blipper (SE5 model)
TCM valves (SE5 model)
20 A
3
Rectifier 60 A
4
Main fuse 40 A
5
Dynamic Power Steering (DPS) motor 40 A
6
VSS pump 40 A
7
Headlights 30 A
8
VSS valves 25 A
9
Fuse box cover
-
Fuse Replacement
1. Remove either the service cover or
lift seat to access the relevant fuse
box.
2. Set the ignition switch to OFF.
3. To open the fuse box under the seat,
push down on the tab and pull off
the cover.
rmo2008-001-037_a
OPENING FUSE BOX UNDER SEAT
Step 1: Push tab
Step 2: Pull cover
4. Pull the fuse out. A fuse removal
tool is available in the fuse box lo-
cated behind the front storage com-
partment under the service cover.
5. Check whether the filament is
melted.
rmo2008-001-060_a
FUSE UNDER THE SERVICE COVER
1. Good fuse
2. Blown fuse
3. Melted filament
rmo2008-001-119_a
FUSE UNDER THE SEAT
1. Good fuse
2. Blown fuse
6. Replace the fuse with one with the
same rating. Spare fuses are lo-
cated in the front fuse box.
WARNING
Using a higher-rated fuse can
cause severe damage and may
cause fires.
7. Install or close the fuse box cover.
8. Close the service cover and
front
storage compartment or seat.
______________
109
