BASIC PROCEDURES

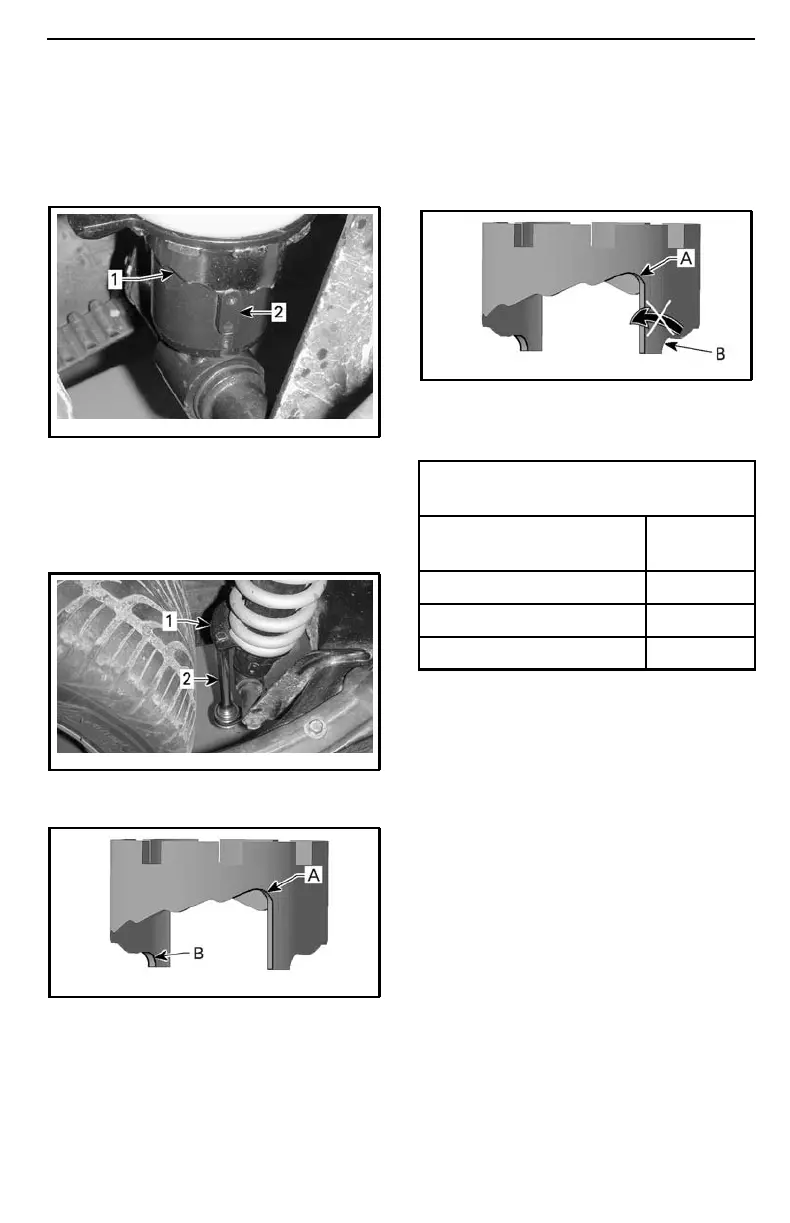

5. Using XPS LUBE (P/N 293 600 016)
or an equivalent product, lubricate
all around the shock absorber cam.
Lubricate especially near the protru-
sions.
rmr2008-030-002_a
1. Cam
2. Protrusion
6. With a ratchet and an extension,
turn the cam adjuster to change the
position of the shock absorber cam.
rmr2008-030-003_a
1. Cam adjuster
2. Ratchet with extension
rmr2008-030-004_c
A. Smooth adjustment (position 1)
B. Hard adjustment (position 7)
NOTE: Never adjust the rear shock
absorber cam from position 7 directly
to position 1 as it will restrain access
to adjustment holes and prevent you
adjusting the suspension.
rmr2008-030-004_d
AVOID ADJUSTING CAM POSITION 7
DIRECTLY TO POSITION 1
A. Position 1
B. Position 7
RECOMMENDED REAR SHOCK
ADJUSTMENT
LOAD
CAM
POSITION
68 kg (150 lb) rider 1, 2
91 kg (200 lb) rider 3 - 5
Rider with passenger 6, 7
_______________
29
