CAN Srl – CU 7000 – ENGLISH – Rev 1/2018

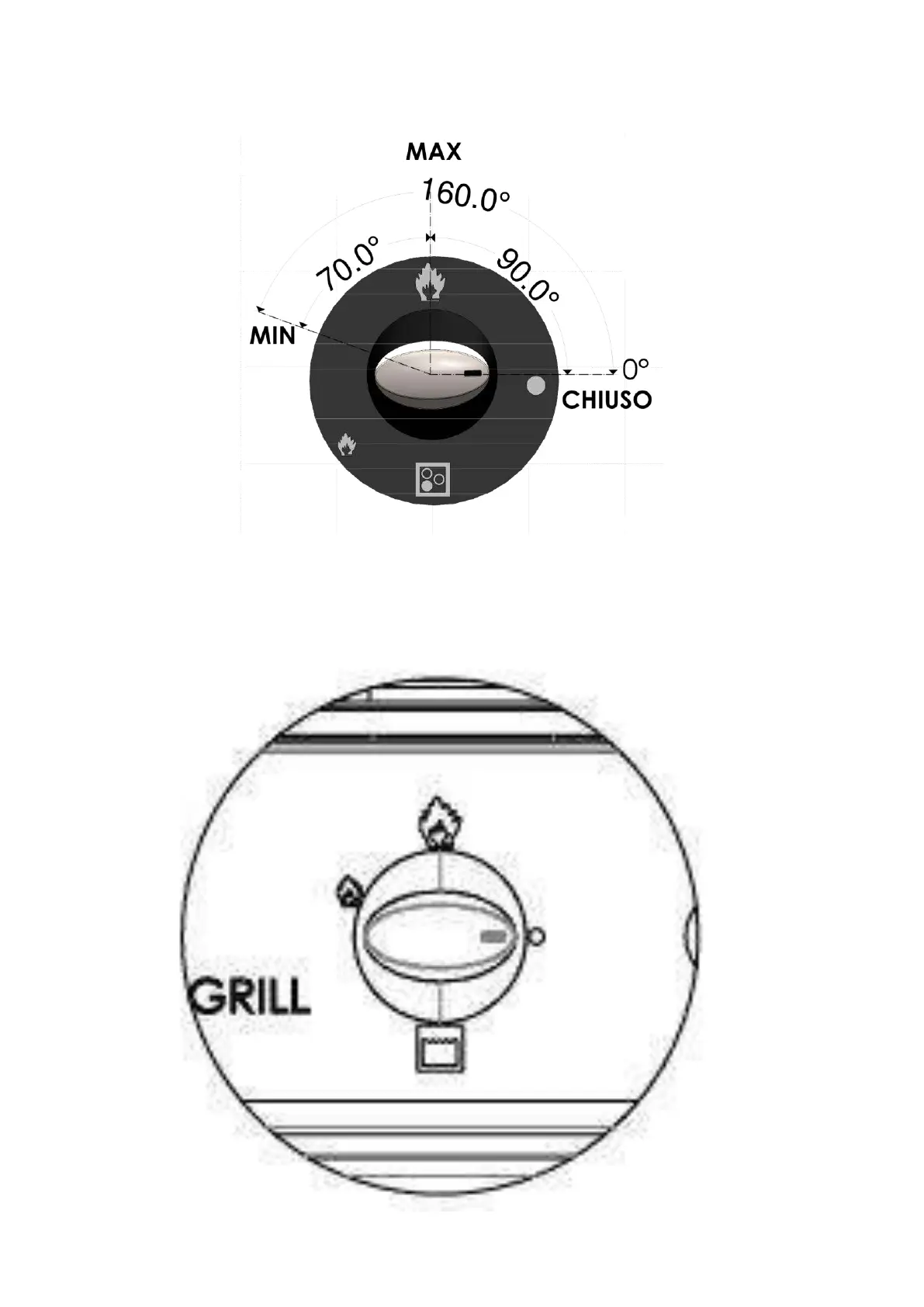

DETAIL A – TYPICAL GAS TAP FOR HOB BURNER
DETAIL B - GAS TAP FOR GRILL BURNER
Fig. 12
Fig. 13
RUBINETTO
GRILL
MAX (90°)
RUBINETTO
GRILL
CHIUSO (0°)
RUBINETTO
GRILL
MIN (160°)
