DESCRIPTION AND USE OF THE GRILL
The grill burner, positioned in the upper ceiling of the cooker compartment, is
equipped with a safety thermocouple.
The thermocouple is equipped with a heat-sensitive device: as long as
it is heated by the flame of the active burner, it allows gas to be
released from the nozzle; if the flame accidentally extinguishes (e.g.
liquid overflows from the pan), the thermocouple will cool in a few
seconds and this blocks the gas exiting the nozzle, preventing the
premises being saturated with unburned gas.

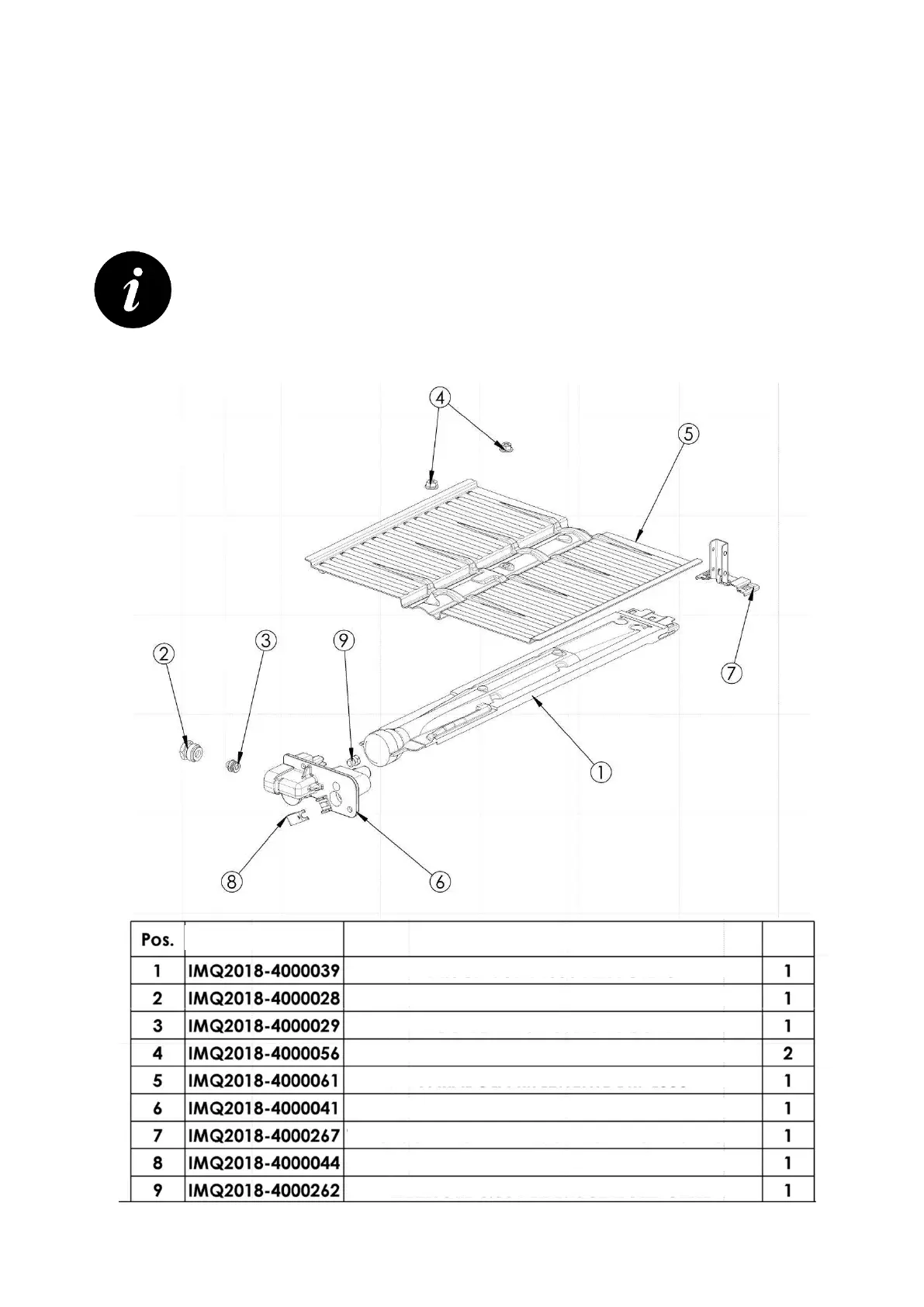

Fig. 16
Code
Description
Qty
BURNER L300 FOR OVEN
FITTING M13x1 –BOWL NUT
BICONIC ADAPRTOR FOR BOWL
NUT FOR PARABOLA FASTENING PIN
REFLECTIVE PARABOLA BRF L300
BOWL FOR OVEN BURNER
WAVE GUIDE TUBE OVEN AND GRILL BURNER
CANDLE FASTENING SPRING
INJECTOR 0.80 FOR GRILL BURNER
