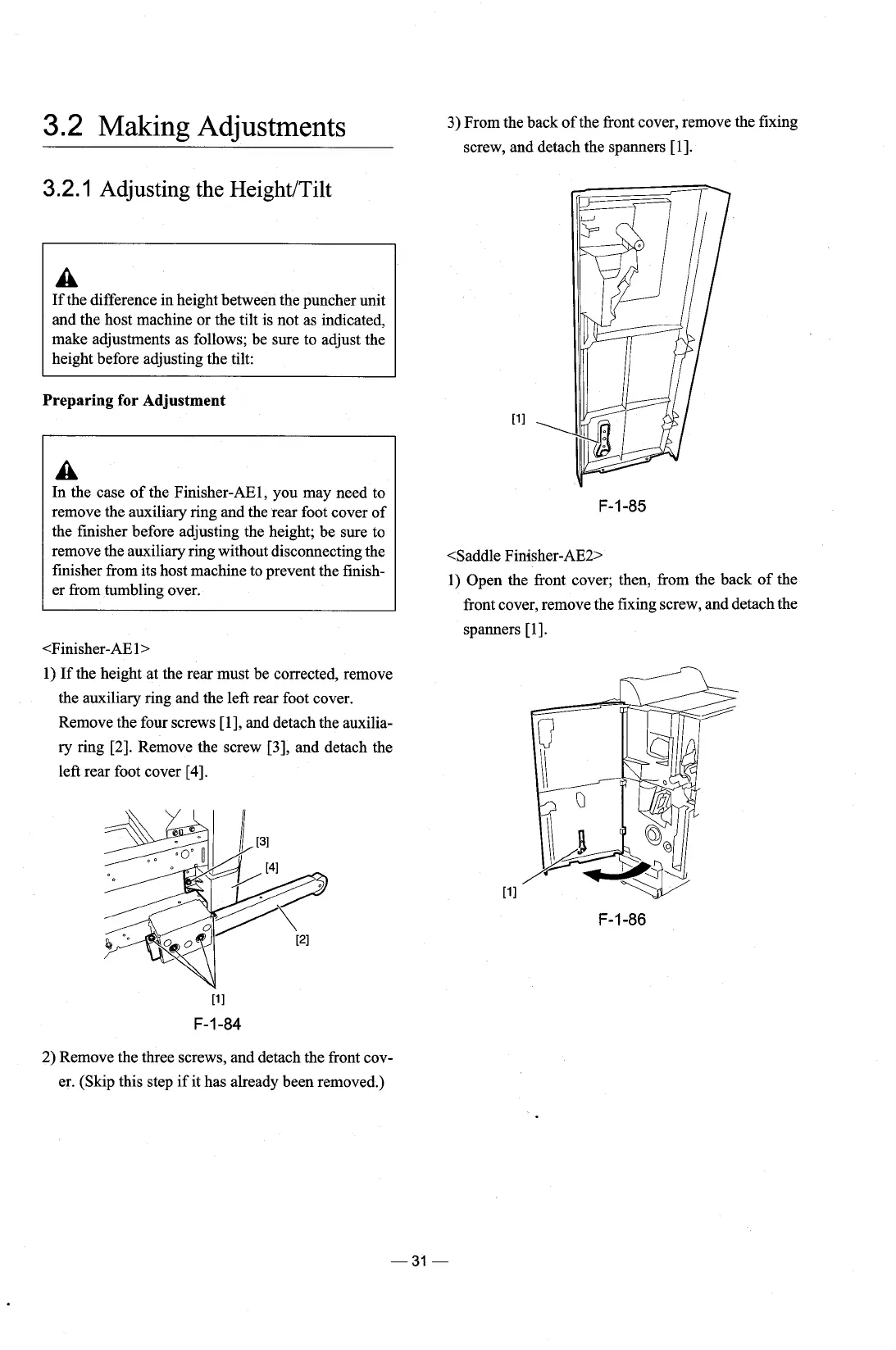

3.2 Making Adjustments
3) From the back of the front cover, remove the fixing
screw, and detach the spanners
[I].
3.2.1 Adjusting the HeightITilt
A
If the difference in height between the puncher unit
and the host machine or the tilt is not as indicated,
make adjustments as follows; be sure to adjust the
height before adjusting the tilt:
Preparing for Adjustment
A
In the case of the Finisher-AEl, you may need to
remove the auxiliary ring and the rear foot cover of
the finisher before adjusting the height; be sure to
remove the auxiliary ring without disconnecting the
finisher from its host machine to prevent the finish-
er from tumbling over.
<Finisher-AE 1 >
1) If the height at the rear must be corrected, remove
the auxiliary ring and the
leR rear foot cover.
Remove the four screws
[I], and detach the auxilia-
ry ring [2]. Remove the screw [3], and detach the
leR rear foot cover [4].
<Saddle Finisher-AE2>
1) Open the front cover; then, from the back of the
front cover, remove the fixing screw, and detach the
spanners
[I].
2) Remove the three screws, and detach the front cov-
er. (Skip this step if it has already been removed.)
