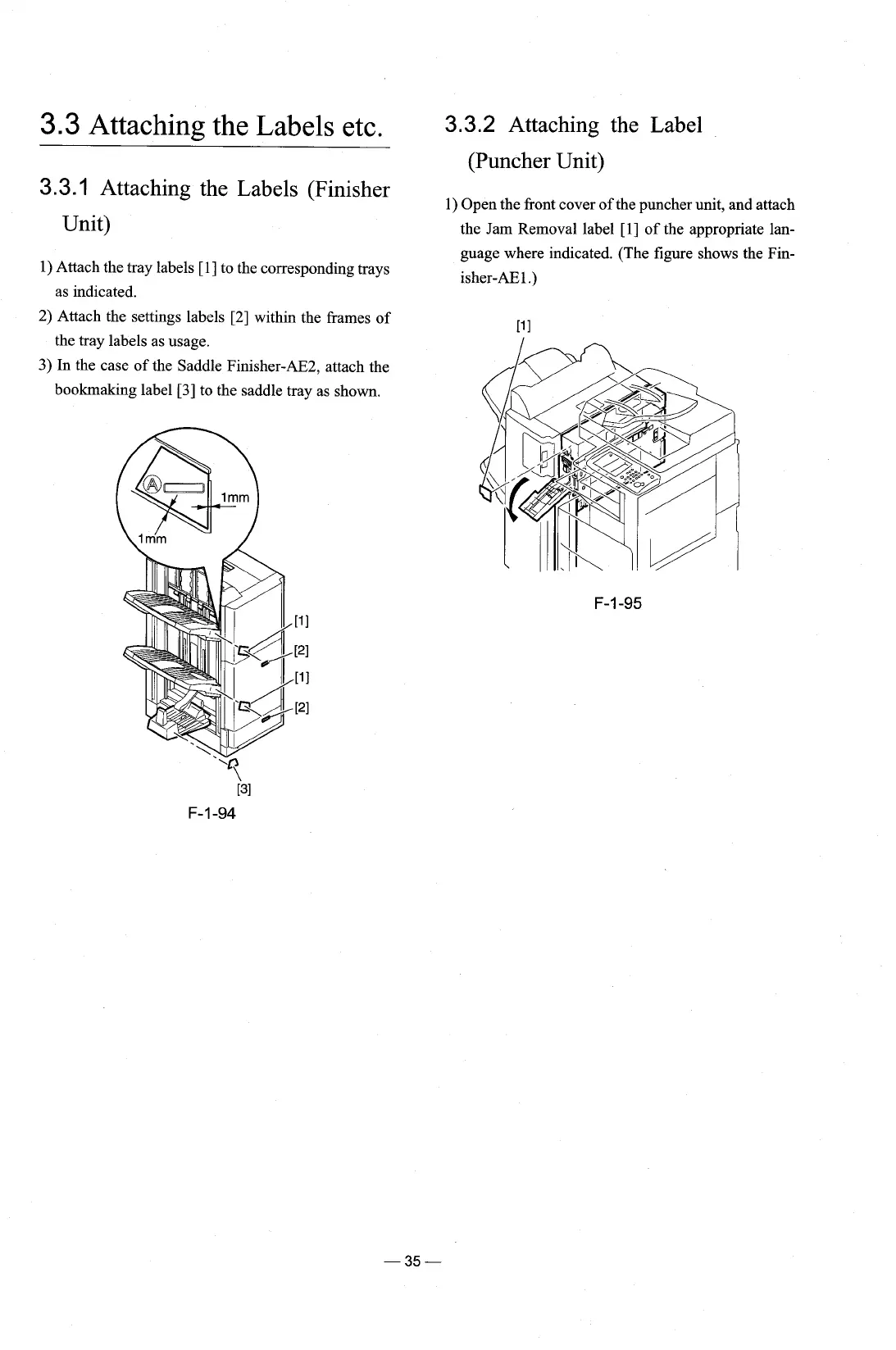

3.3 Attaching the Labels etc.
3.3.1 Attaching the Labels (Finisher
Unit)
1) Attach the tray labels [I] to the corresponding trays
as indicated.
2) Attach the settings labels [2] within the frames of
the tray labels as usage.
3)
In the case of the Saddle Finisher-AE2, attach the
bookmaking label [3] to the saddle tray as shown.
3.3.2 Attaching the Label
(Puncher Unit)
1) Open the front cover of the puncher unit, and attach
the Jam Removal label
[I] of the appropriate lan-
guage where indicated. (The figure shows the Fin-
isher-AE
1 .)
