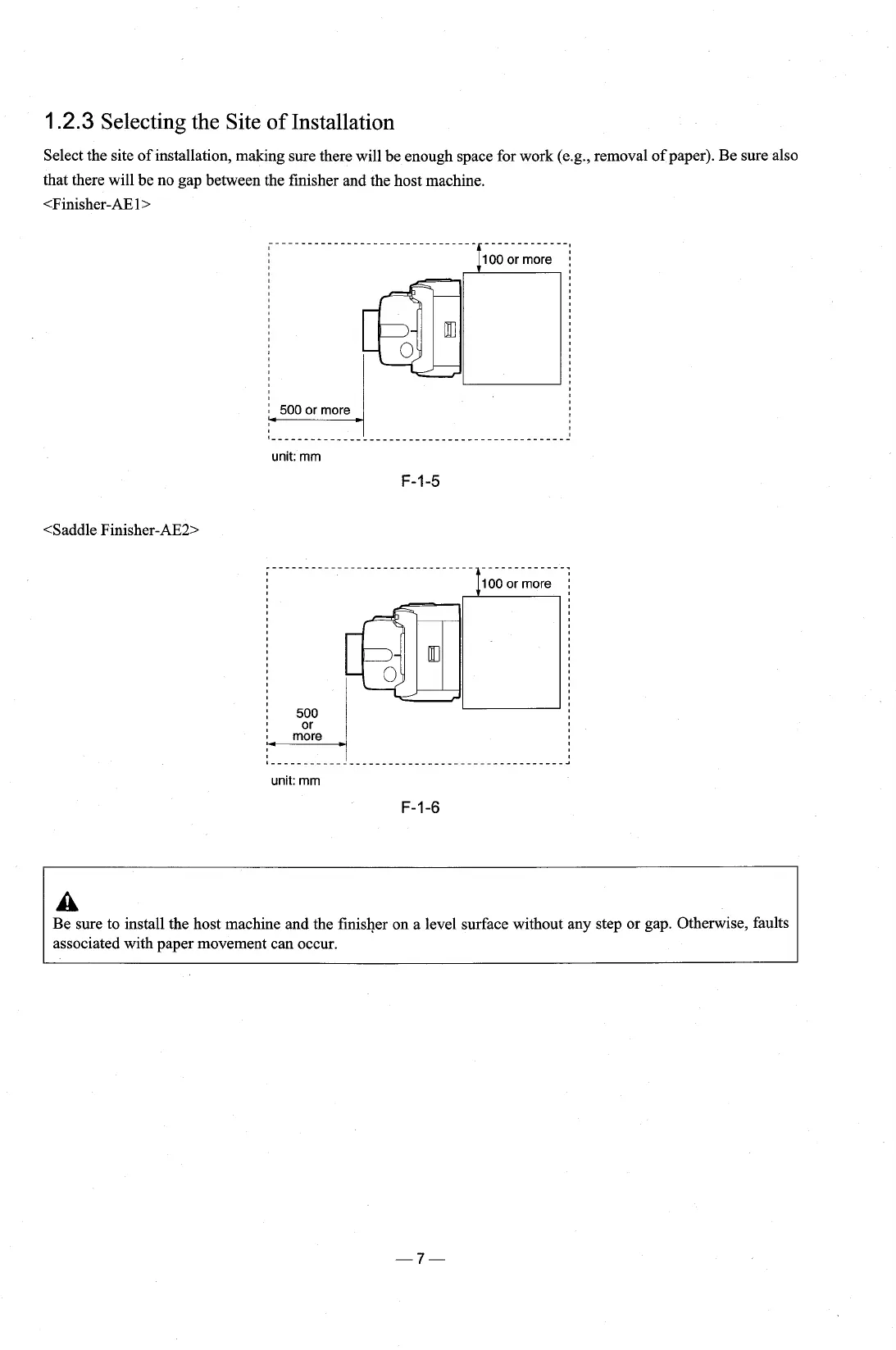

1.2.3 Selecting the Site of Installation
Select the site of installation, making sure there will be enough space for work (e.g., removal of paper). Be sure also
that there will be no gap between the finisher and the host machine.
<Finisher-AEl>
100 or more
unit: mm
F-1-5
: --------... ! ----------------......----------- :
unit: mm
F-1-6
A
Be sure to install the host machine and the finisher on a level surface without any step or gap. Otherwise, faults
associated with paper movement can occur.
