Canon EX AUTO - Setting Distance Scale for Lenses

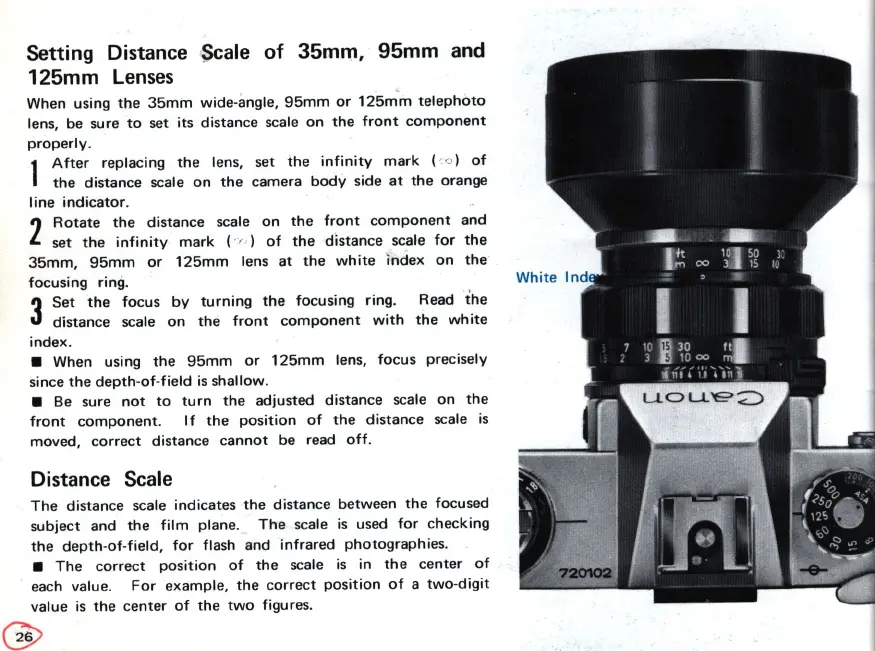

Setting Distance Scale of 35mrn, 95mm and
125mm Lenses
When using the 35mm wide-angle, 95mm or 125mm telephoto
lens, be sure to set its distance scale on the front component
properly .
1
After replacing the lens, set the infinity mark ( '0 ) of
the distance scale on the camera body side at the orange
line indicator .
2
Rotate the distance scale on the front component and
set
the infinity mark ( .,, ) of the distance scale for the
35mm, 95mm or 125mm lens at the white Index on the
focusing ring .
3
Set the focus by turning the focus ing ring. Read t he
distance scale
on the front component with the white
index .
• When using
the 95mm or 125mm lens, focus precisely
since
the depth - of-field is shallow .
• Be sure
not to turn the adjusted distance scale on the
front component . If the position of the distance scale is
moved , correct distance c annot be read off ,
Distance Scale
The distance scale indicates the distance between the focused
subject and
the film plane. The scale is used for checking
the depth - of - field , for flash and infrared photographies .
•
The corre ct position of the scale is in the center of
each value. For example , the correct position of a two - digit
value is the center of the two figures.
@>
