Canon GP160F - Multi Drive Assembly

FIGURE
&
KEY NO.
PART NUMBER DESCRIPTION SERIAL NUMBER / REMARKS
R
A
N
K
Q
/
T
Y
COPYRIGHT C 1999 CANON INC. CANON 2220/2210/2200/160/3000 REV.1 FEB. 1999 PRINTED IN JAPAN [IMPRIME AU JAPON]
261 - FG6-1210-000 1 MULTI DRIVE ASSEMBLY
1 FB4-5701-000 1 CAM, CLUTCH
2 FB4-5706-000 1 PLATE, GROUNDING
3 FS6-2916-000 1 SPRING, TENSION
4 FS7-0202-000 1 GEAR, 31T
5 FS7-0203-000 1 GEAR, 25T
6 FS7-0204-000 1 GEAR, 29T
7 RB1-2190-000 1 COLLAR, SPRING
8 RB1-6132-000 1 LEVER, CLUTCH
9 RB1-6135-000 1 SPRING, TORSION
10 RH7-5194-000 1 SOLENOID SL302 J508
11 RS5-0692-000 1 GEAR, 19T
501 XB6-7300-607 2 SCREW,TP,M3X6
261-1

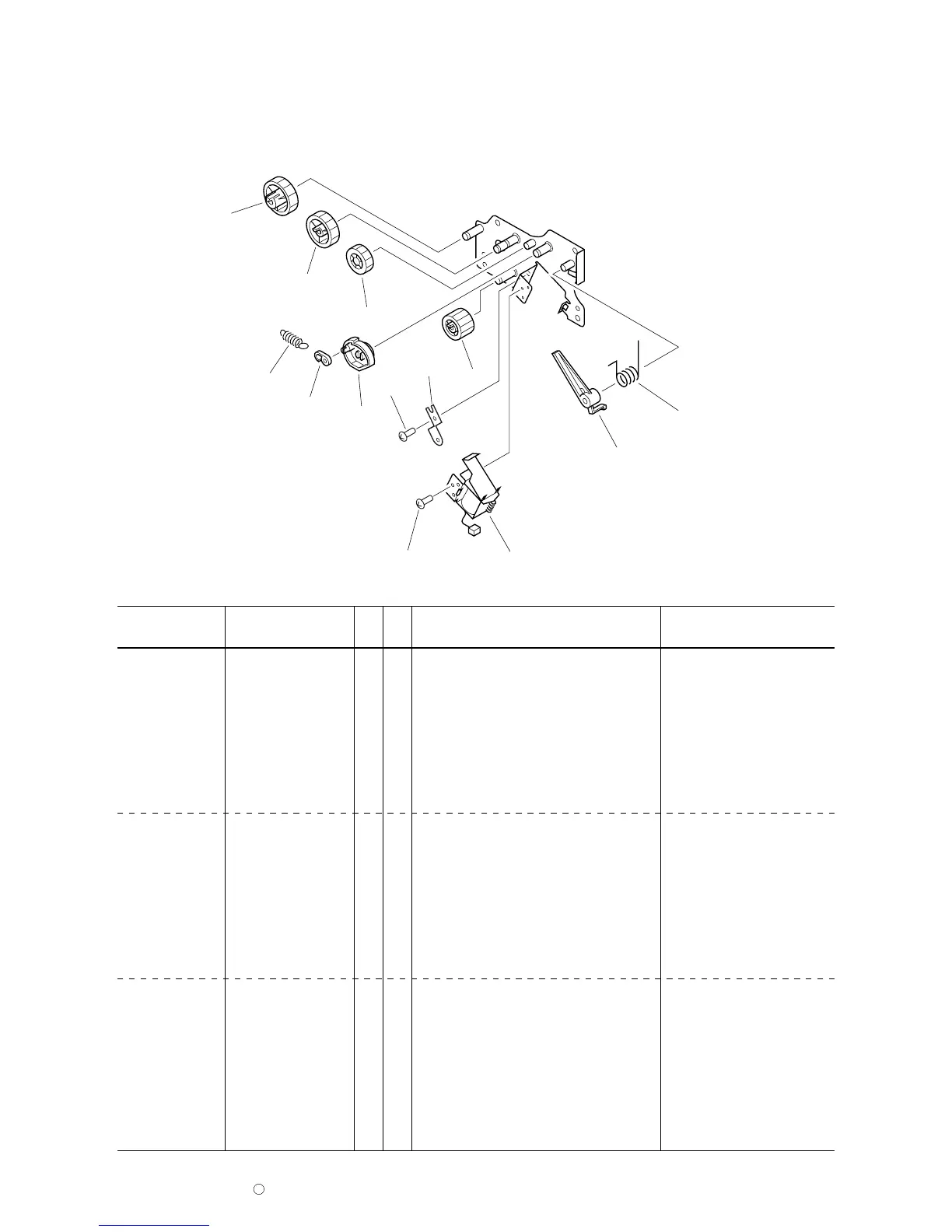

FIGURE 261
MULTI DRIVE ASSEMBLY
3
7
1
501
2
5
11
6
4
501
10
8
9
(J508)
(SL302)
