Canon GP160F - Standards and Adjustments

COPYRIGHT © 1999 CANON INC. CANON GP160 REV.0 FEB. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 13 TROUBLESHOOTING
13-2
I. STANDARDS AND ADJUSTMENTS
A. Mechanical system
1. Right and left registration adjustment
Check that the front edge image margin of paper fed from each cassette is 2.5
± 2.0mm.
If the standards are off, adjust according to the procedure described below.
1) Remove the cassette from the cassette level that needs adjustment.
2) Loosen the hex screw and move the adjusting plate back and forth. Adjust by lining
up with the 1mm interval scale marks.

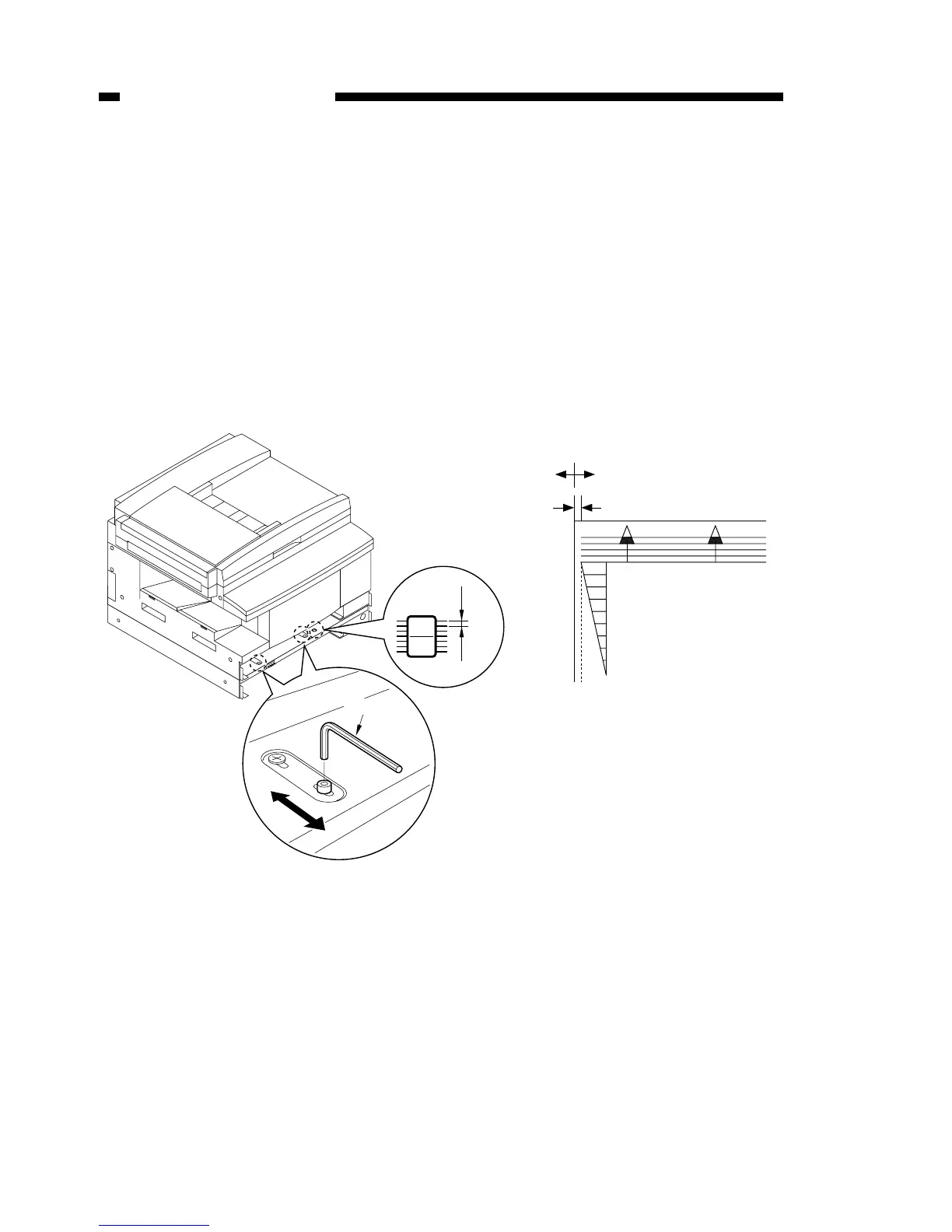

Figure 13-101
1mm
Scale
Hex wrench
(–) (+)
2.5 ± 2.0mm
0
2
4
6
8
10
