Canon GP160F - Page 697

FIGURE
&
KEY NO.
PART NUMBER DESCRIPTION SERIAL NUMBER / REMARKS
R
A
N
K
Q
/
T
Y
COPYRIGHT C 1999 CANON INC. CANON 2220/2210/2200/160/3000 REV.1 FEB. 1999 PRINTED IN JAPAN [IMPRIME AU JAPON]
320 - FG6-1220-000 1 MANUAL FEED TRAY ASSEMBLY AB SIZE
FG6-1270-000 1 MANUAL FEED TRAY ASSEMBLY INCH/A SIZE
FG6-1271-000 1 MANUAL FEED TRAY ASSEMBLY A SIZE
1 FF5-7268-000 1 TRAY, PAPER AB SIZE
FF5-7291-000 1 TRAY, PAPER INCH/A SIZE
FF5-7292-000 1 TRAY, PAPER A SIZE
1A FB4-5627-000 1 SHEET AB SIZE
FB4-5487-000 1 PLATE, LENGTH INDEX INCH/A SIZE
FB4-5488-000 1 PLATE, LENGTH INDEX A SIZE
2 RB2-1827-000 2 RAIL, SLIDE
3 RB2-3784-000 1 GUIDE, SIDE
4 RB2-3785-000 1 GUIDE, SIDE
5 RS1-0519-000 1 GEAR, 20T
501 XB4-7300-607 1 SCREW,TAPPING,TRUSS HEAD,M3X6
320-1

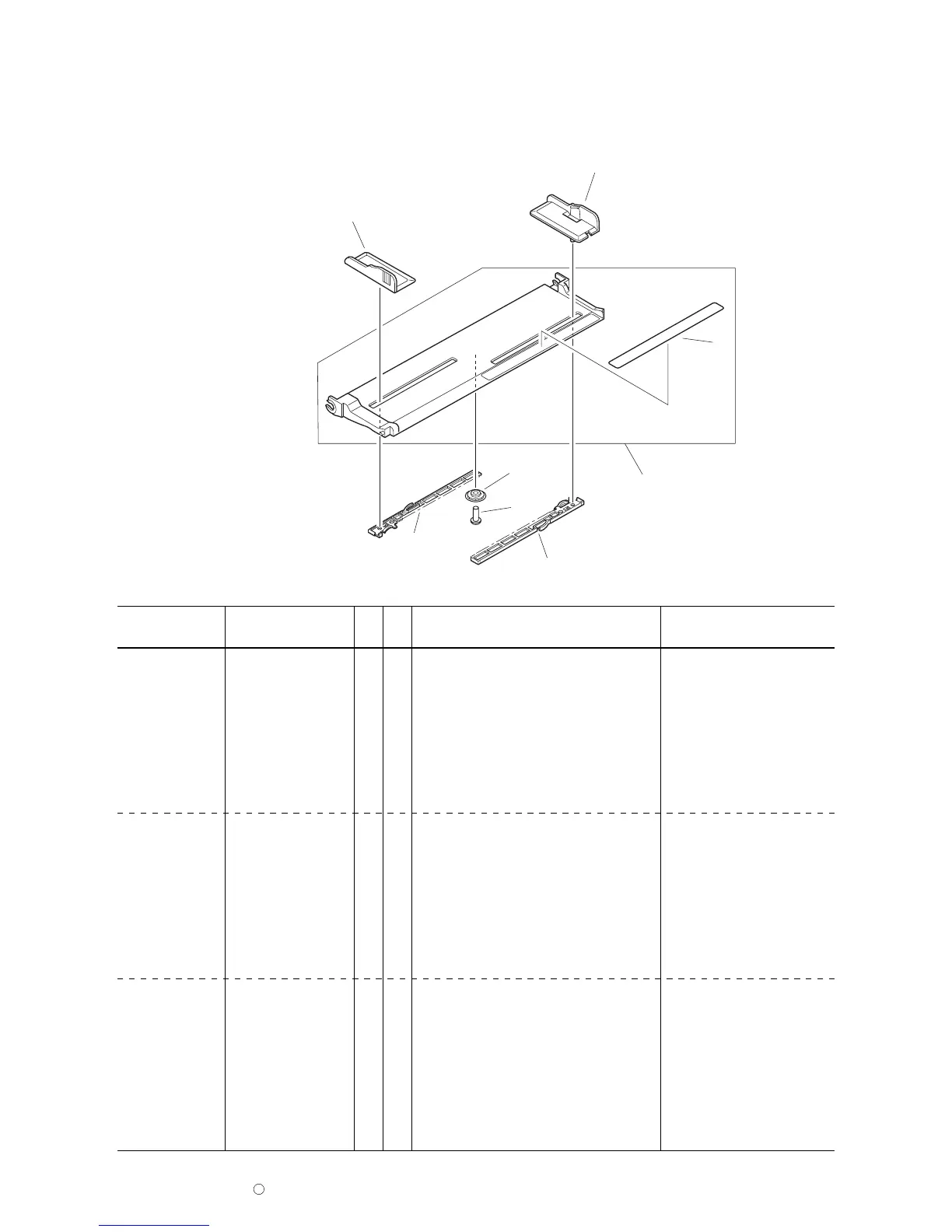

FIGURE 320
MANUAL FEED TRAY ASSEMBLY
4
3
1A
1
2
501
5
2
