Canon i960 - Page 16

1 - 11

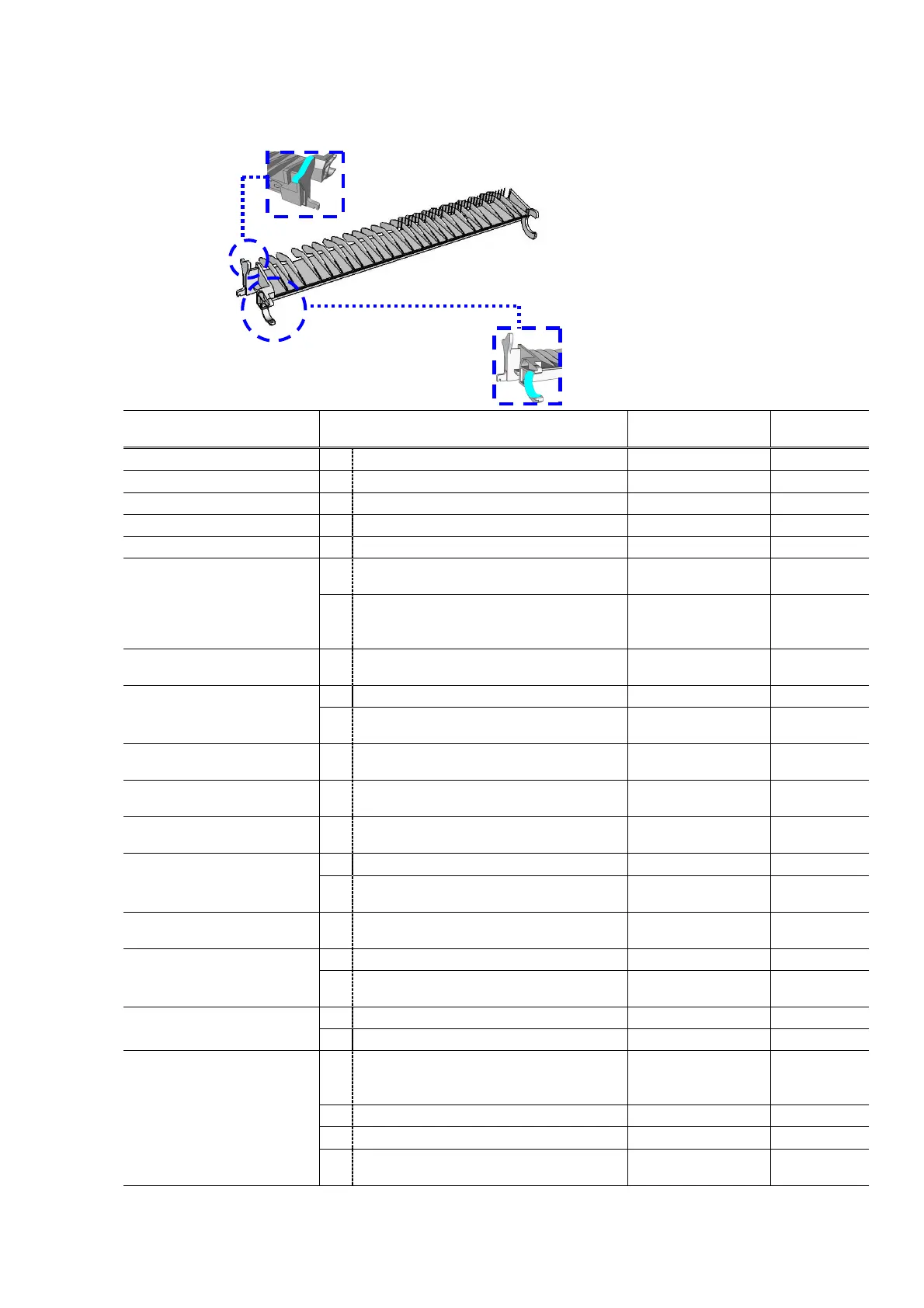

Paper guide flapper ass’y
Part name Where to apply grease / oil Grease / oil name
Grease / oil
amount
Carriage slide plate 1 Carriage unit sliding portion FLOIL KG107 3 drops
Carriage shaft 2-1 Carriage unit sliding portion EU1 50 to 110mg
Grease pad (QA4-0721) x 2 2-2 Carriage unit sliding portion EU1 90 to 110mg
Shaft clip L / R 3 Carriage shaft sliding portion FLOIL KG107 1 drop each
Pressure roller ass’y 4 Lift cam shaft unit sliding portion MOLYKOTE PG641 1 drop
5
Pressure roller ass’y sliding portion
(4 locations of the cam)
MOLYKOTE PG641
1 drop
x 4 locations
Lift cam shaft unit
6 Torsion spring (4 locations) MOLYKOTE PG641
Thin film of
oil
x 4 locations
Bushing (on the lift input
gear side)
7 Bushing inner surface MOLYKOTE PG641 1 drop
8 Bushing sliding portion MOLYKOTE PG641 1 drop
Lift input gear
9 Gear tooth (2 locations) MOLYKOTE PG641
1 drop
x 2 locations
Lift transmission gear
(QC1-2294)
10
Larger gear tooth (3 locations),
smaller gear tooth (2 locations)
MOLYKOTE PG641
1 drop
x 5 locations
Lift transmission gear
(QC1-2295)
11
Larger gear tooth (5 locations),
smaller gear tooth (2 locations)
MOLYKOTE PG641
1 drop
x 7 locations
Lift transmission gear
(QC1-2296)
12 Gear tooth (all teeth) MOLYKOTE PG641 2 drops
13 Bushing sliding portion MOLYKOTE PG641 1 drop
Lift shaft gear
14 Gear tooth (2 locations) MOLYKOTE PG641
1 drop
x 2 locations
Carriage input gear
15 Gear tooth (2 locations) MOLYKOTE PG641
1 drop
x 2 locations
16 Cam sliding portion FLOIL KG107 1 drop
Carriage shaft cam R
17 Gear tooth (2 locations) MOLYKOTE PG641
1 drop
x 2 locations
18 Feed roller ass’y sliding portion FLOIL KG107 2 drops
Paper guide flapper ass’y
19 Lift cam shaft unit sliding portion MOLYKOTE PG641 1 drop
20
Carriage shaft sliding portion
(3 locations each, on the left and right
sides)
FLOIL KG107
1 drop
x 6 locations
21 Carriage shaft cam L sliding portion FLOIL KG107 2 drops
22 Carriage shaft cam R sliding portion FLOIL KG107 2 drops
Chassis
23 Lift cam shaft unit bushing (4 locations) FLOIL KG107
1 drop
x 4 locations
Note: 1 drop = 9 to 18 mg
19
18
