5.

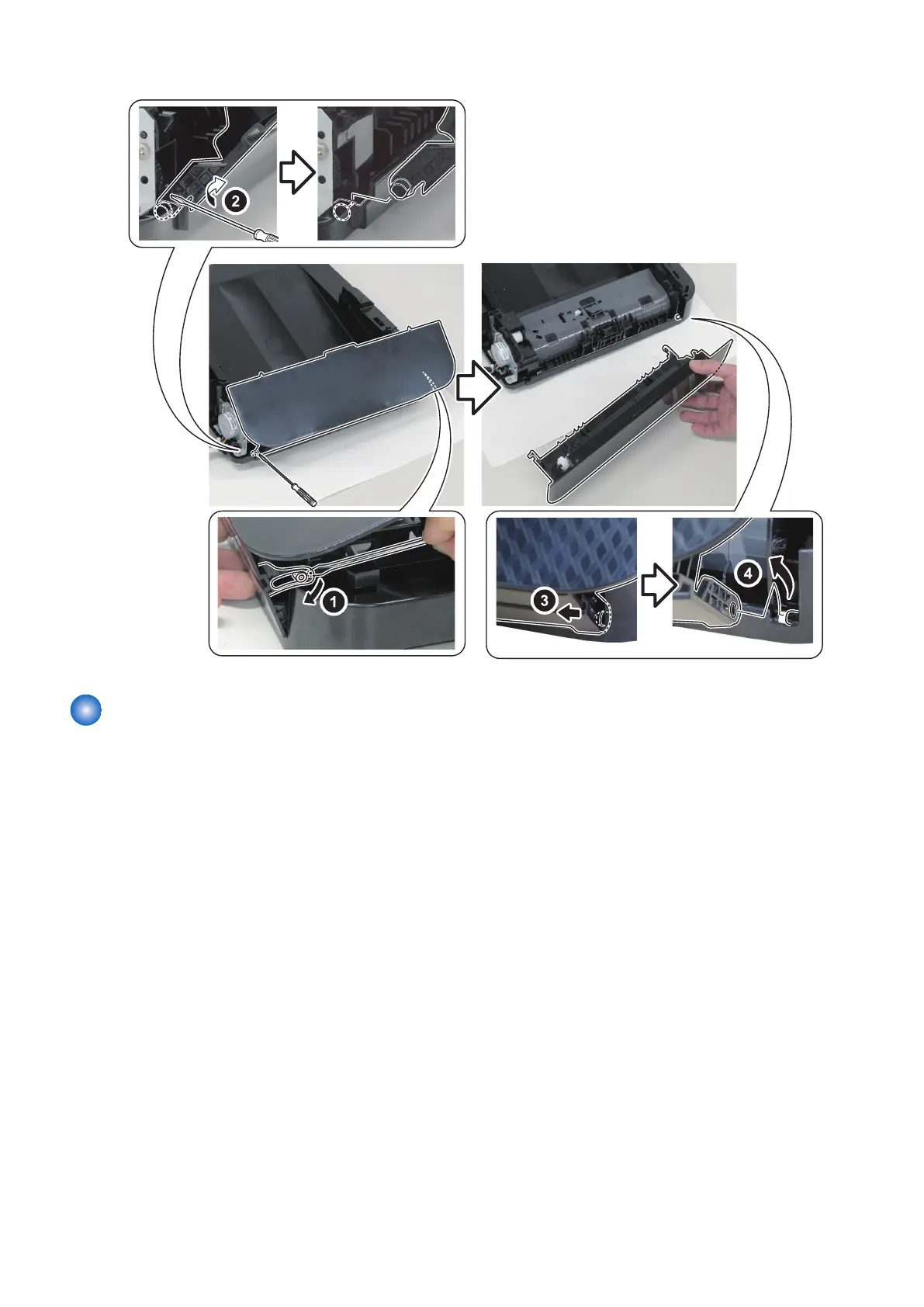

Removing the SADF Pickup Unit
■ Preparation
1. “Removing the Cartridge” on page 77
2. “ Removing the Left Cover” on page 80
3. “Removing the SADF Unit + Reader Unit” on page 126
4. “Separating the SADF Unit + Reader Unit” on page 129
5. “Removing the SADF Upper Cover Unit” on page 131
4. Parts Replacement and Cleaning
134
