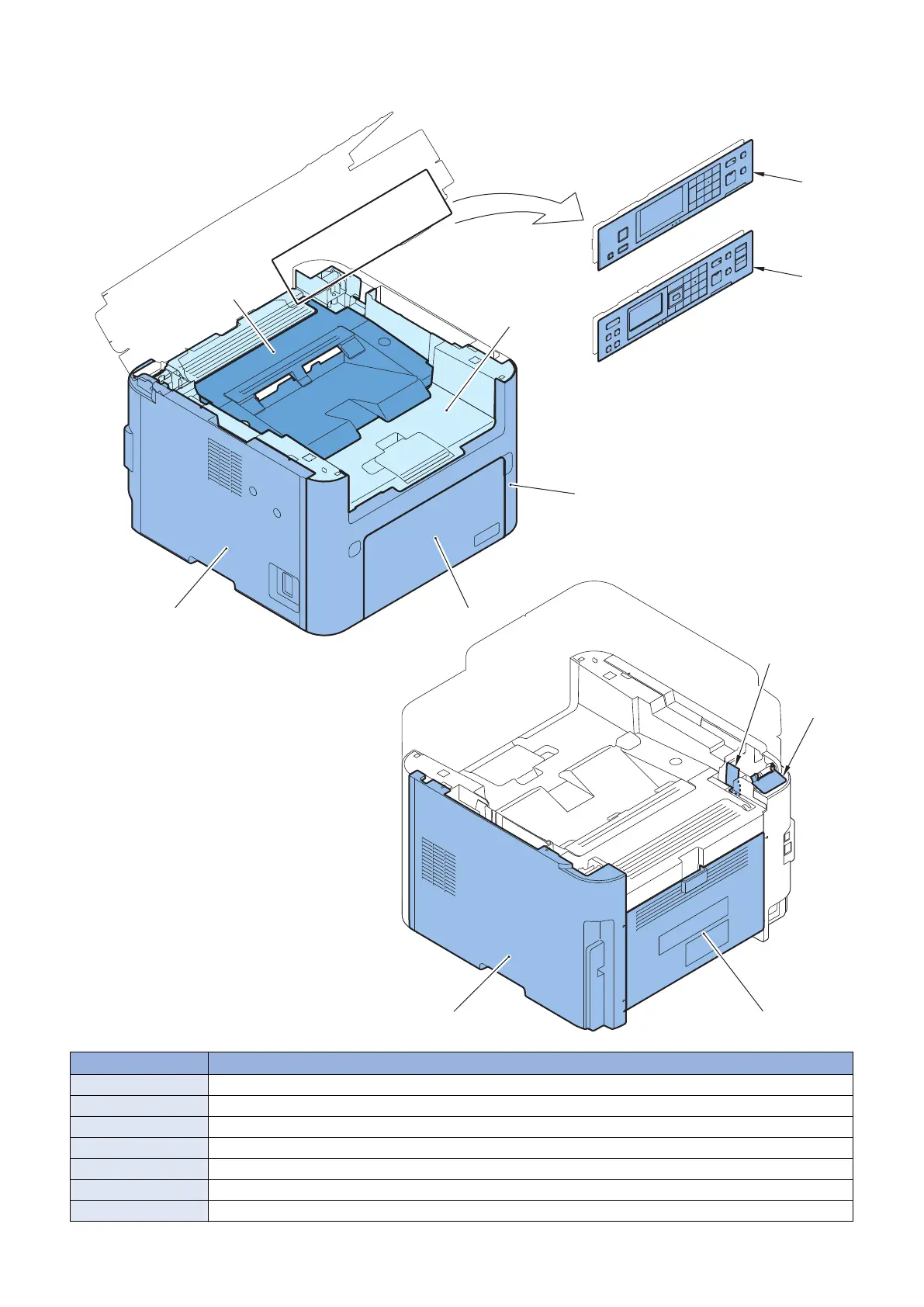

■ Host Machine
[2]
[3]
[4]
[5][1]
[6]
[6]
[7][8]
[9]
[10]
No. Name
[1] Left Cover
[2] Toner Cover
[3] Top Cover
[4] Front Cover
[5] Multi-purpose Tray
[6] Control Panel Unit
[7] Duplex Door Unit
