Checking after Installation
■ Disposal Parts
1. Following disposal parts are remained after the installation procedure.
[1] Screw (RS tightening; M4x8) 3pcs.
[2] Screw (RS tightening; M4x10) 2pcs.
[3] Screw (TP; M3x6) 2pcs.
[4] Screw (P tightening; M3x8) 1pc.
[5] Paper Size Label (remaining label) 1pc.
[6] Blindfold Seal 1pc.
[7] Door Stopprt 1pc.
[8] Connector Cover 1pc.
[9] Feed Cover 1pc.
[10] Lower Right Cover 1pc.
[11] Removed Face Cover 2pcs.
■ Paper Positioning Check /Adjustment Procedure

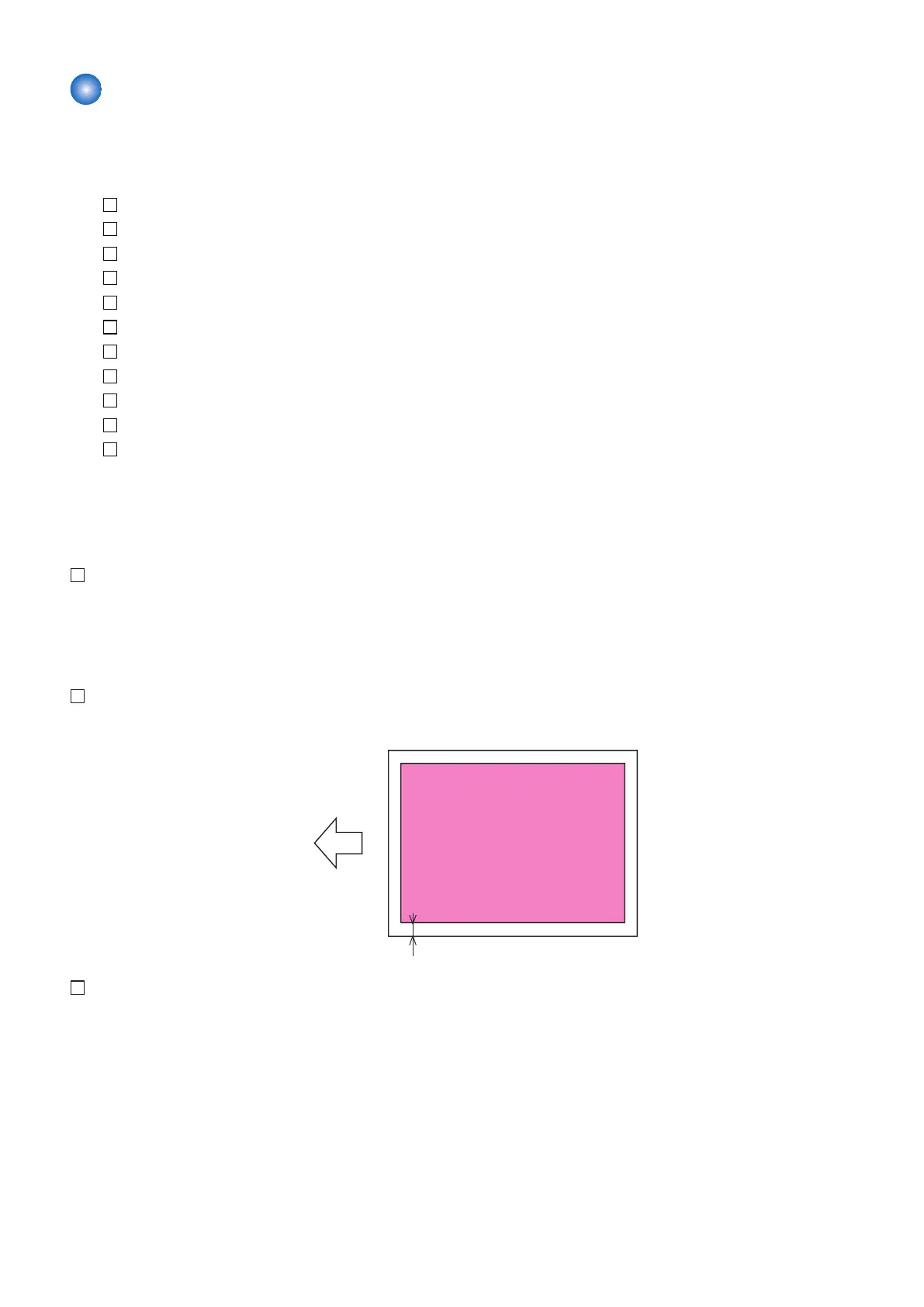

● Adjusting the Left Edge Margin(L1) of the Image
1. After setting the service modes (level 1) as follows, press the Start key and output a test print.
• COPIER > TEST > PG > TYPE = 5
• COPIER > TEST > PG > COLOR-M = 1
• COPIER > TEST > PG > COLOR-Y/C/K = 0
2. Print sheets of paper from POD Deck Lite and then check that L1 is 2.5+/-1.5mm.
3. Execute manua adjustment as follows when it is out of standard.
5. Paper Feed Options
