imagePROGRAF Printer Driver

Starting Free Layout

Follow the procedure below to start the Free Layout.

1. Start the apllication software which you use.

2. From the application software's File menu, select the printer setup menu to open the Print dialog box.

Note

• Normally, select Print from the File menu.

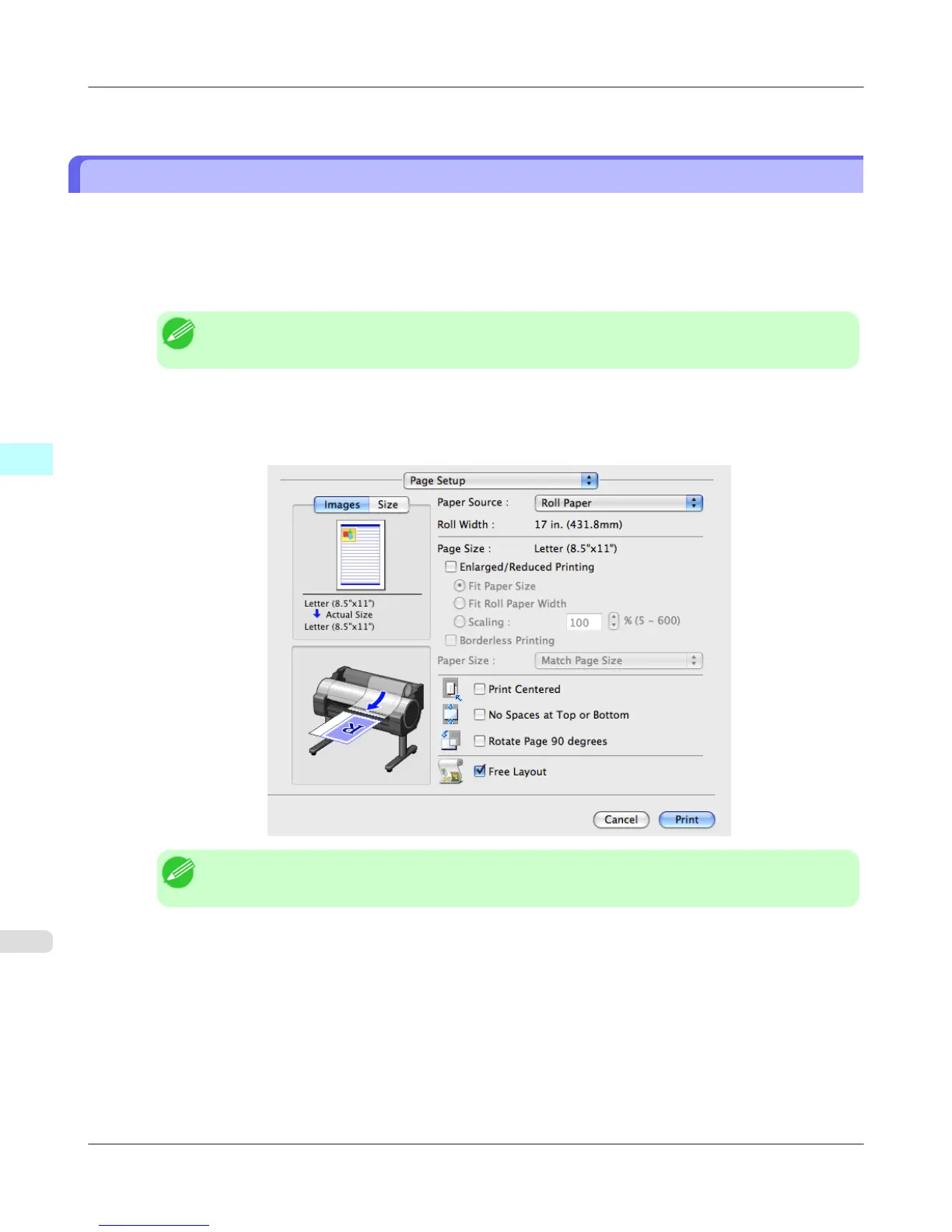

3. Click on Free Layout in the Page Setup panel to attach a checkmark.

4. Click the Print button in the Print dialog box.

Note

• Your printer is depicted in the lower-left area of this screen.

Mac OS X Software

Free Layout

Starting Free Layout iPF6300S
