Attaching the Roll Holder to Rolls
When loading a roll, be careful to avoid hitting the printer hard with the roll. This may damage the Roll
Holder .
•
3
4
5

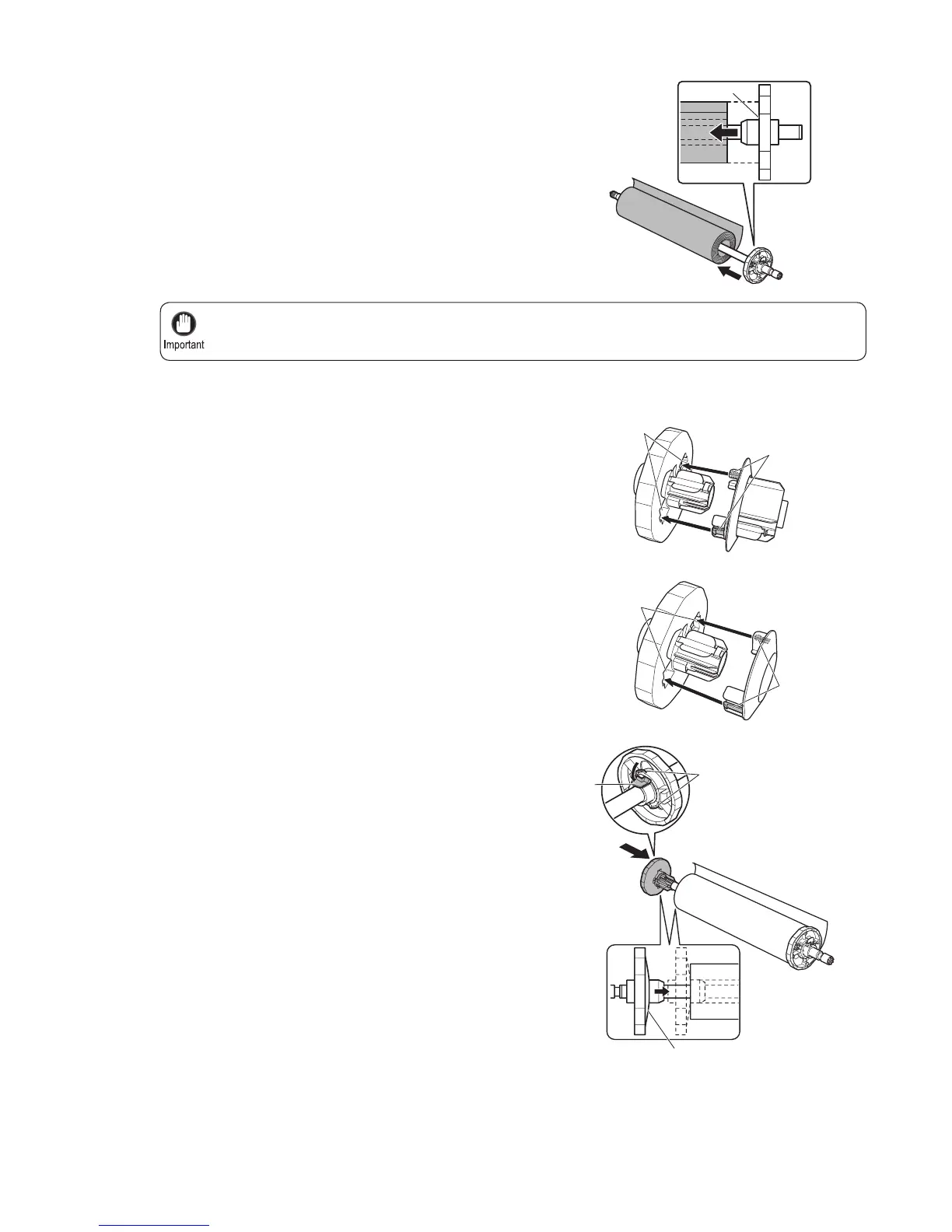

With the edge of the roll paper facing forward as shown,
insert the Roll Holder from the right of the roll. Insert
it fi rmly until the roll touches the fl ange (a) of the Roll
Holder .
Insert the attachments for the roll paper core on the
Holder Stopper .
Insert the Holder Stopper from the left in the Roll Holder
as shown. Holding it at the position shown (b), push it
fi rmly in until the fl ange (a) of the Holder Stopper touches
the roll. Lock the Holder Stopper lever (c) by pushing it
down toward the shaft side.
Align the tips (a) of the attachment with the holes (b) of the
Holder Stopper and insert it fi rmly.
3-Inch Paper Core Attachment #2•
2-Inch Paper Core Attachment •
a
a
b
a
b
a
c
b
To Next Page
