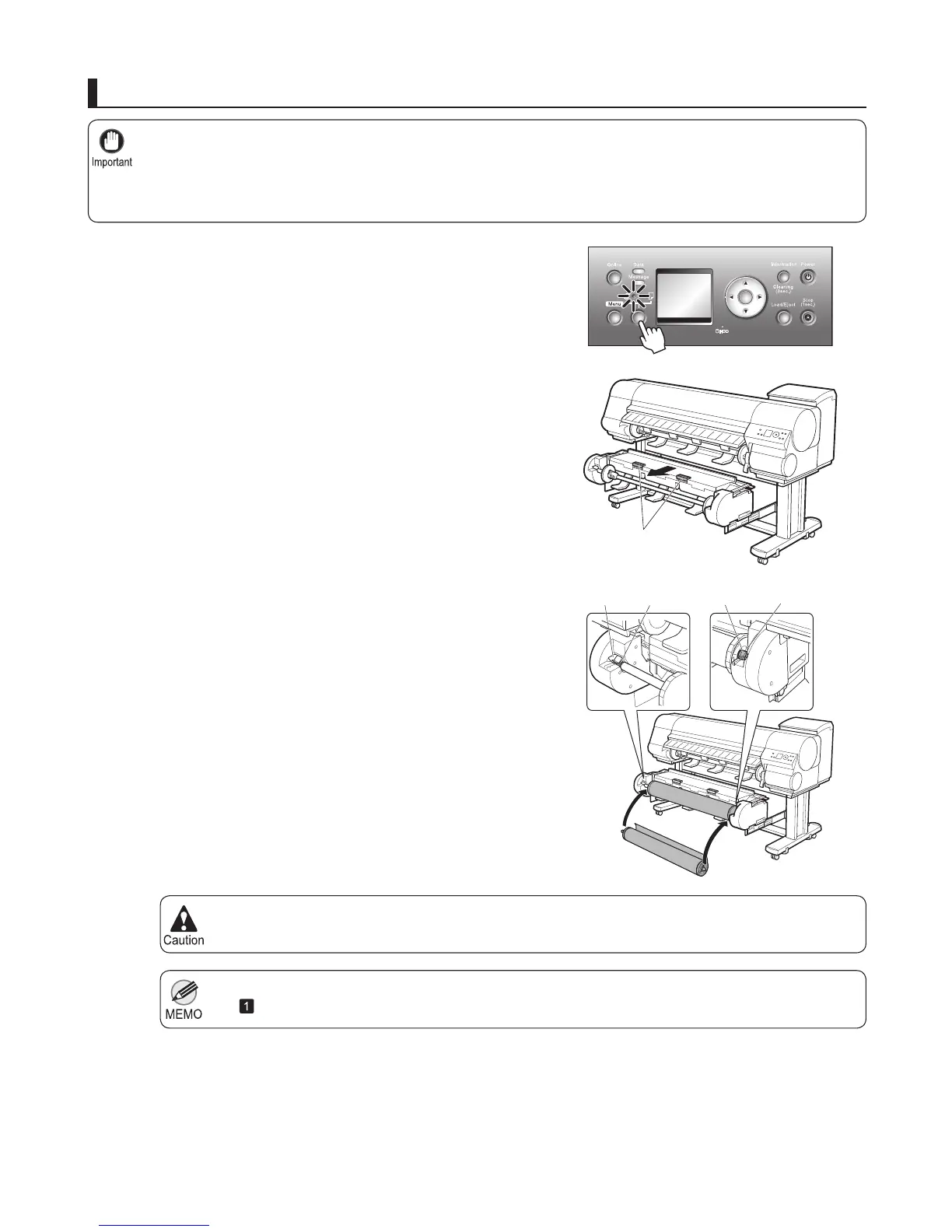

Loading Rolls in the Printer
Do not detach the Roll Unit in the following cases.•
See the following procedure for instructions on attaching the Roll Holder to the roll.•
Be careful not to pinch your fi ngers between the Roll Holder shaft (a) and the guide grooves (b) when
loading rolls.
•
(→ , Attaching the Roll Holder to Rolls)
During printing•
Vibration from removing the Roll Unit may affect the printing quality.
If a sheet is loaded in the printer•
The sheet may be ejected, and (rarely) it may be bent.
1
3
2
Load a roll in the Roll 2 (Lower) position (iPF825 only)
Confi rm that a roll is selected as the paper source.
(→"Selecting the Paper Source," User Manual)
Holding the Roll Holder so that the side with the white
gear faces the side of the Roll Holder Slot with a white
gear, load the Roll Holder shaft (a) into the grooves (b)
on both ends of the Roll Holder Slot .
Holding the Roll Unit Lever (a), pull out the Roll Unit .
OK
a
ab a b
