Canon imagePROGRAF iPF815 Basic Guide

8
iPF825
The right leg of the Stand .
The left leg of the Stand .
When carrying the printer, have six people hold it by these handles under both sides.
Roll Holder
Protective Cloth for Sheets
Paper Feed Slot
Holder Stopper
Ink Tank Cover
Control Panel
Release Lever
Roll Holder Slot
Ejection Guide
A stand that holds the printer. Equipped with casters to facilitate moving it.
Open this cover to replace the Maintenance Cartridge .
Guides printed documents as they are ejected. Open this guide when loading a roll.
When loading a roll, insert the edge of the roll paper here. You can load rolls in two
positions, on the printer side in the Roll 1 (Upper) position and on the roll unit side in the
Roll 2 (Lower) position.
A cloth tray that catches ejected sheets.
Load the roll on this holder.
Secure rolls on the Roll Holder with this part.
Open this cover to replace an Ink Tank .
Use this panel to operate the printer and check the printer status.
Releases the Paper Retainer . Lift this lever toward the front of the printer when loading
paper.
Slide the Roll Holder into this slot.
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the
cartridge when it is full.)
Maintenance Cartridge
Carrying Handles
Maintenance Cartridge
Cover
Stand
Stand R
Open this cover to install the Printhead , load paper, and remove any jammed paper from
inside the printer as needed.
Top Cover
Covers for Stand L and Stand R . Leg Covers
Always release the Stopper before moving the printer. Moving the printer while the
Stopper is locked may scratch the casters or the floor.
Stopper
Hold this lever to pull out the Roll Unit . Roll Unit Lever
A unit for loading a second roll. Roll Unit

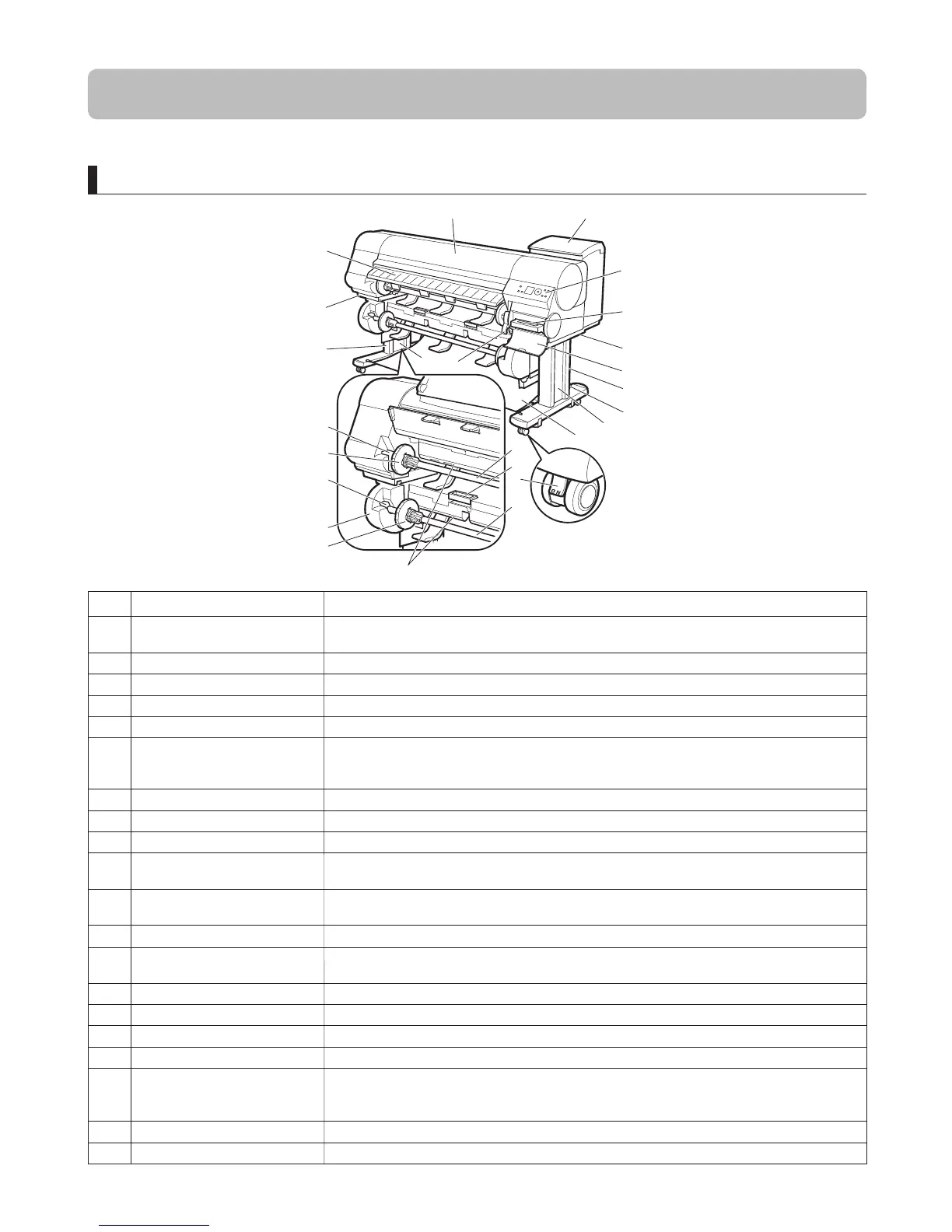

Names and functions of printer parts are as follows.
Parts
Stand L
Locks the Stand casters.
OperationName
d
e
g
h
i
j
c
b
k
l
m
n
o
p
a
f
q
r
t
s
a
i
h
j
b
c
c
d
d
l
e
o
t
g
s
g
k
l
q
m
p
n
q
r
f

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
