Canon imagePROGRAF iPF8300 Basic Guide No.1 - Page 13

13

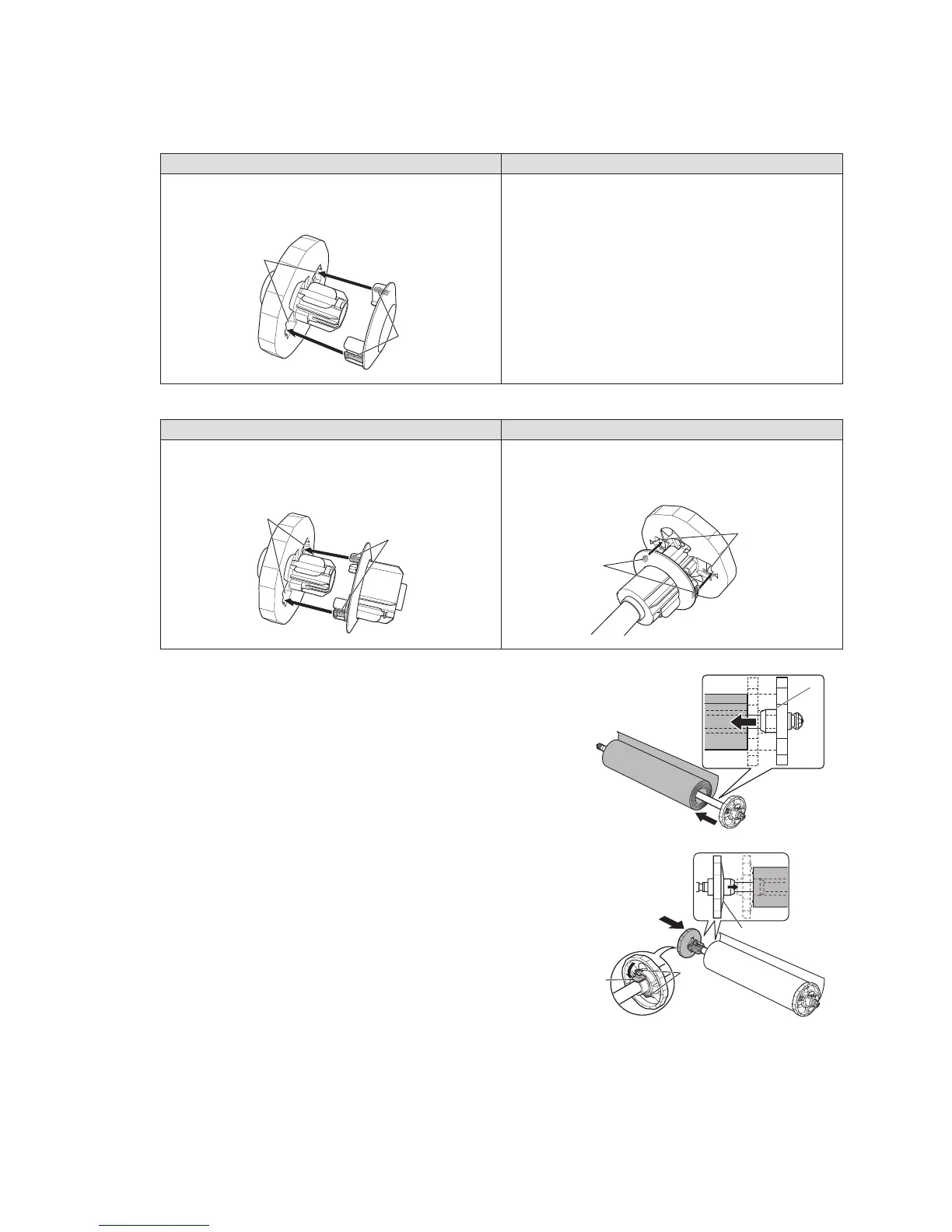

Attaching the Roll Holder to Rolls
2
3
4
With the edge of the roll paper facing forward as shown,
insert the Roll Holder from the right of the roll. Insert
it fi rmly until the roll touches the fl ange (a) of the Roll
Holder , leaving no gap.
Insert the Holder Stopper from the left in the Roll Holder
as shown. Holding it at the position shown (b), push it
fi rmly in until the fl ange (a) of the Holder Stopper touches
the roll. Lock the Holder Stopper lever (c) by pushing it
down toward the shaft side.
Insert the respective attachments for the roll paper core
on the Roll Holder and Holder Stopper .
Using rolls with a 2-inch paper core•
Holder Stopper Side Roll Holder Side
Holder Stopper Side Roll Holder Side
Align the tips (a) of the 2-Inch Paper Core
Attachment with the holes (b) of the Holder Stopper
and insert it firmly.
No attachment is needed.
Using rolls with a 3-inch paper core•
Align the tips (a) of 3-Inch Paper Core Attachment
#2 with the holes (b) of the Holder Stopper and
insert it firmly.
Align the tips (a) of 3-Inch Paper Core Attachment
#1 with the holes (b) of the Roll Holder and insert it
firmly.
a
c
b
a
a
b
a
b
a
b
