Canon imagePROGRAF TX-4000 Introductory Information

9
1

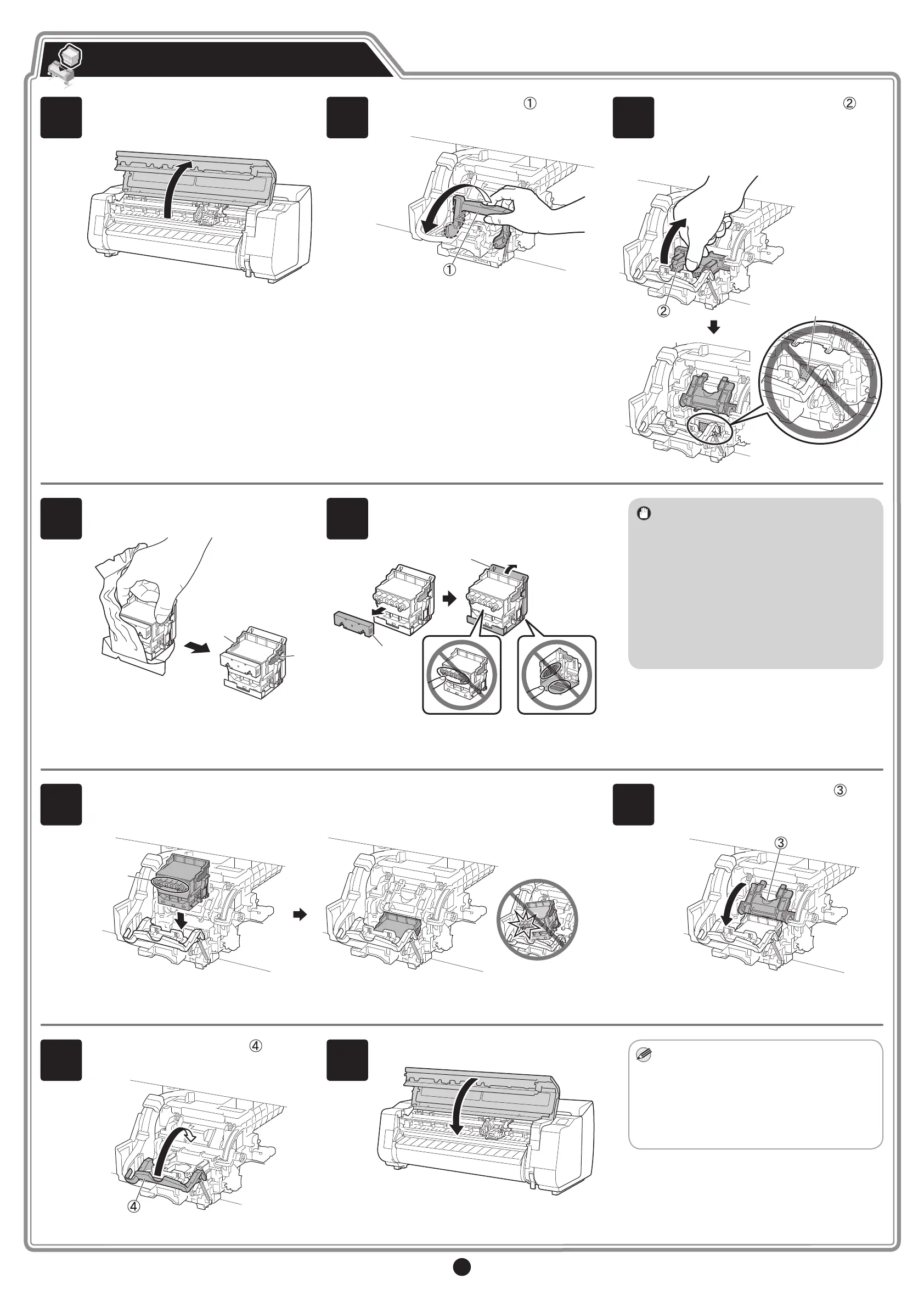

When the instruction to open the top
cover appears on the screen, open the
top cover.
Instructions are now shown on the screen
regarding print head installation.
2
Tilt the print head lock lever towards
you.
3
Open the print head locking cover by
following the instructions on the screen,
and tap OK.
Do not touch the contacts (A) on the
carriage.
A
4
Remove the print head from the bag by
holding the tab parts (A).
A
A
5
Remove the orange protective caps (A
and B). Remove the protective cap (B) by
holding the tab part (C).
A
B C
Important
• Do not touch the part that was being
protected by the protective cap under
any circumstances. Touching it may
cause damage to the print head or
printing problems.
• The print head contains ink, so be
careful not to spill it once the protective
caps are removed.
• Do not reattach the protective caps
after removing them. Dispose of them
according to local regulations.
6
Insert the print head into the carriage with the ink holes (A) on the upper side and facing
towards you as shown in the gure. Carefully push the print head rmly into the carriage,
ensuring that the part covered by the protective caps does not touch the carriage.
A
7
Pull the print head locking cover down
toward the front to lock the print head in
place.
8
Push the print head lock lever all the
way to the end.
9
Close the top cover.
Note
• If the roll unit is installed, the roll unit
calibration starts automatically after the
print head is attached.
If the roll holder is mounted on the roll
unit at this time, calibration cannot be
executed. Do not mount the roll holder
on the roll unit until the setup has
nished.
Install the Print Head
