1.5.2 Rear
0024-9418
F-1-17

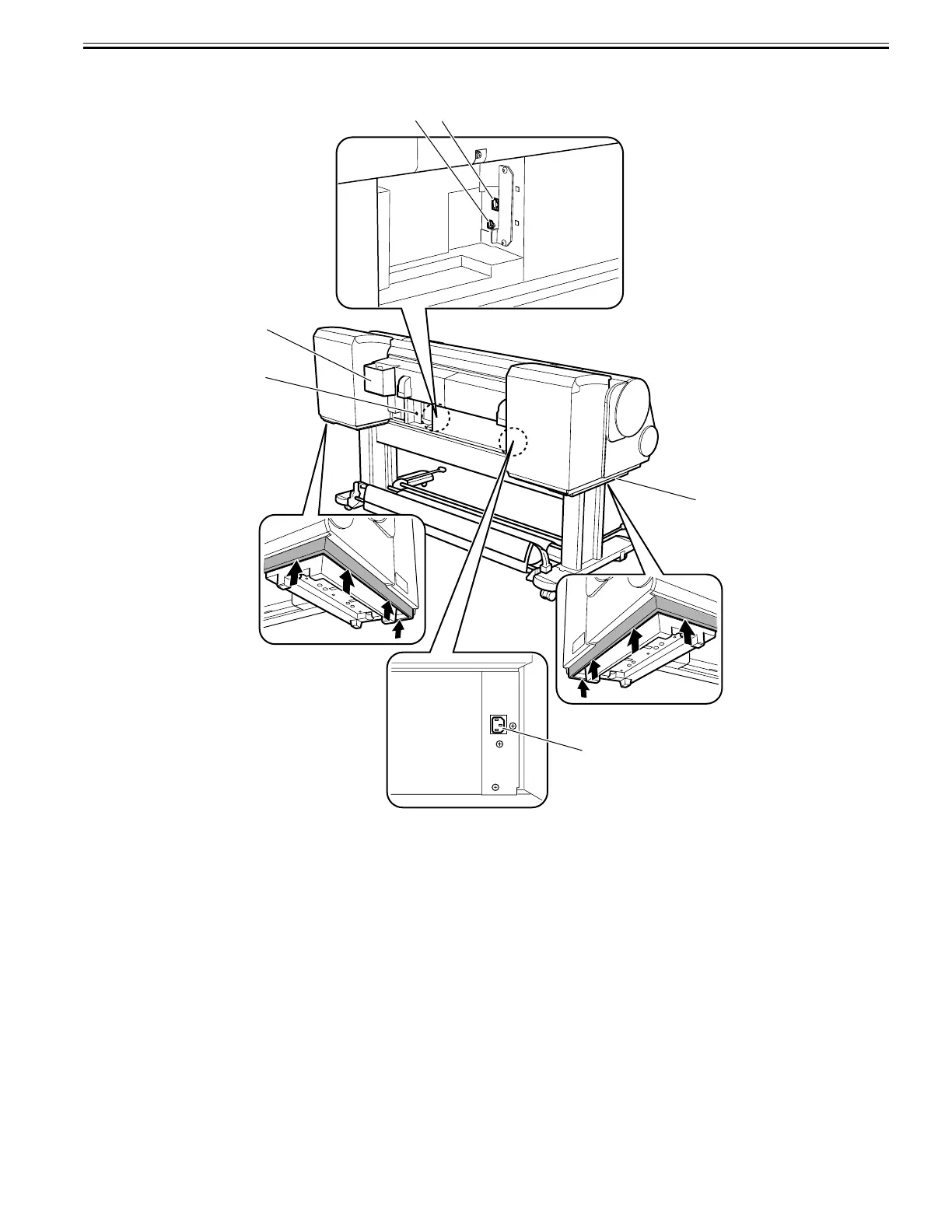

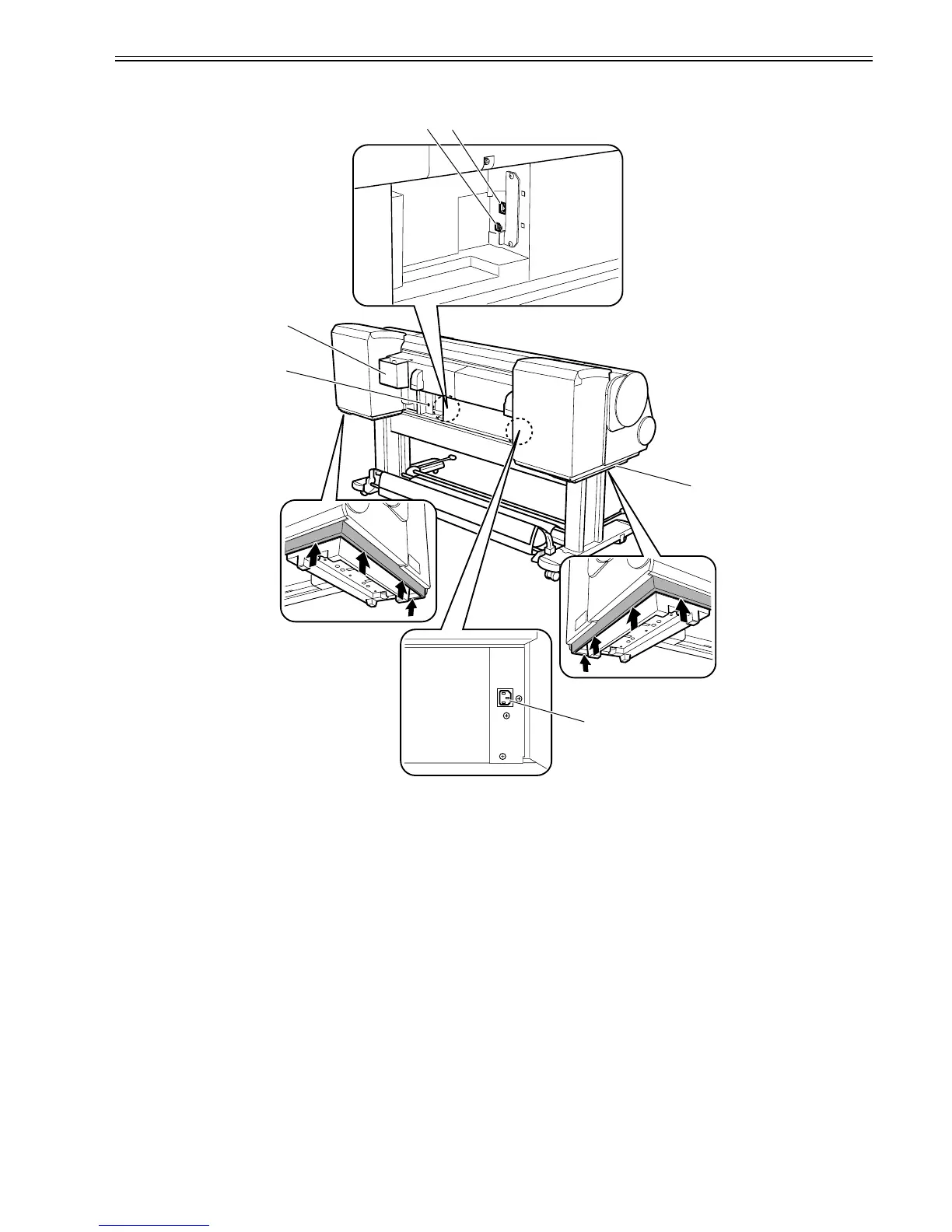

[1] Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly and communication is possible between the computer and printer.
[2] USB Port
Connect a USB cable to this port. This port is compatible with USB 2.0 Hi-Speed mode.
[3] Accessory Pocket
Holds printer manuals, assembly tools, and other items.
[4] Media Take-up Unit Power Inlet
Connect the power cord of the Media Take-up Unit here.
[5] Power Supply Connector
Connect the power cord to this connector.
[6] Carrying handles
When carrying the printer, have six people hold it by these handles under both sides.
[2]
[3]
[4]
[5]
[1]
[6]
