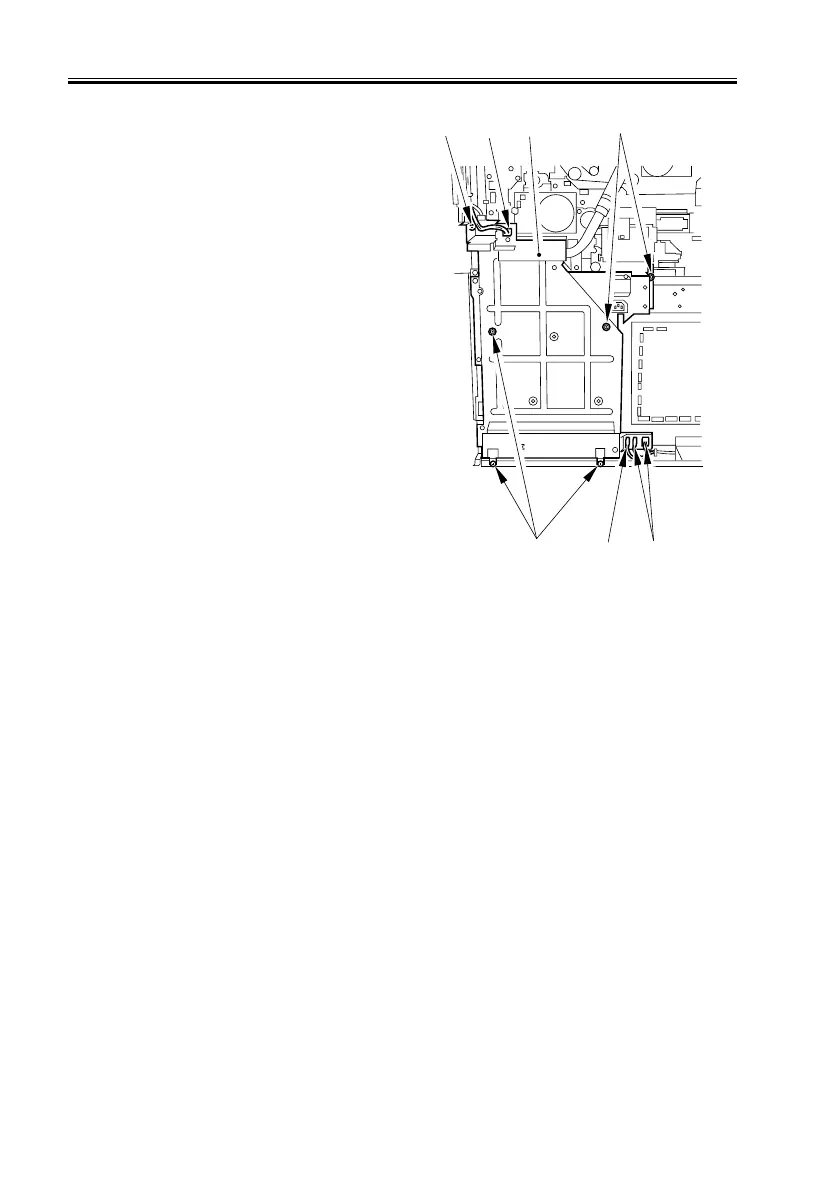

4) Remove the water toner case; then, re-
move the 5 screws [1], and disconnect
the 4 connectors [2] to detach the waste
toner case base [3].
F02-1004-52
[1]
[1]
[1]
[3]
[2] [2]
[2]
