Jam Detection
Overview

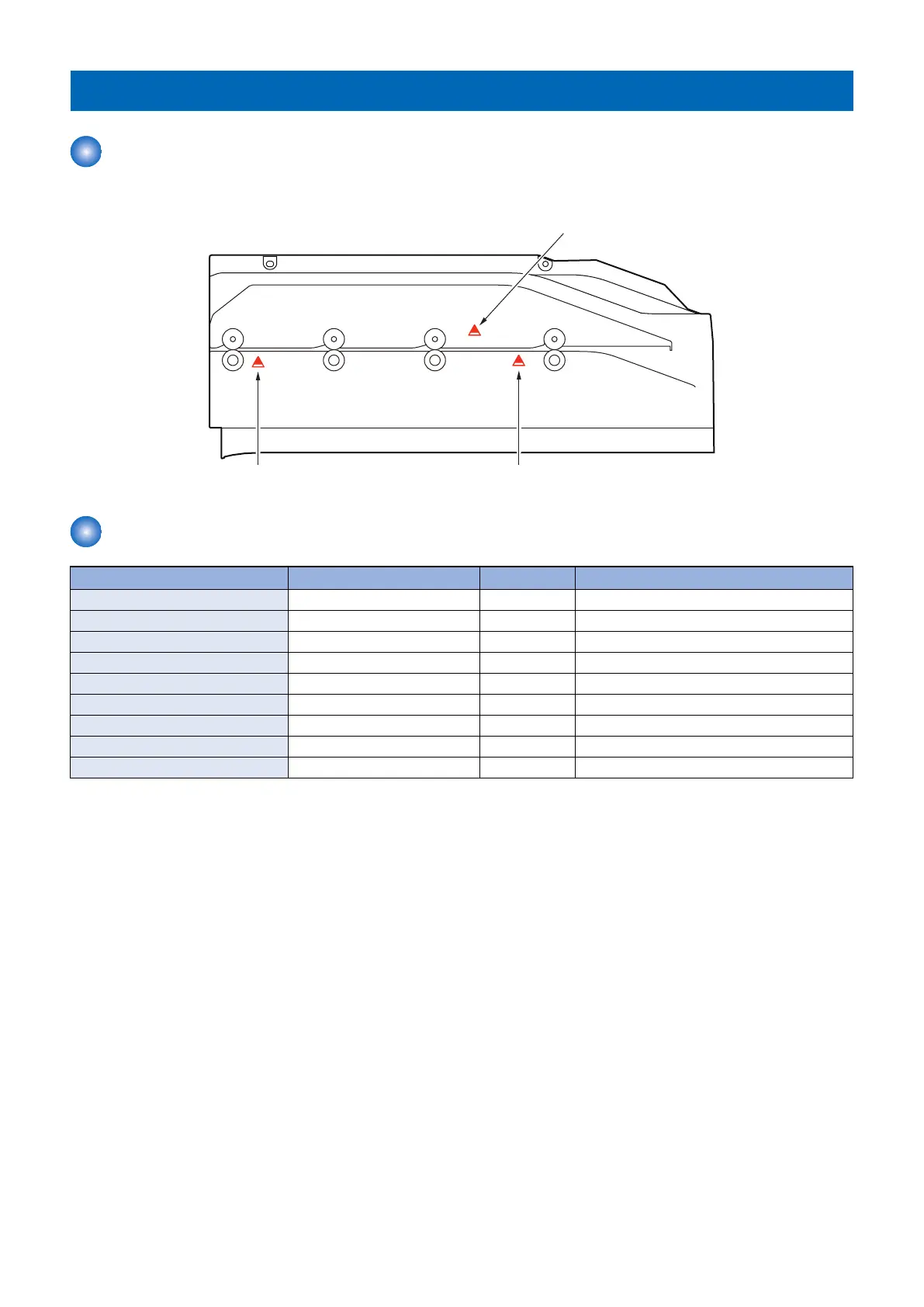

The following diagram shows the arrangement of sensors used to detect jams in the Buffer Pass Unit.
PS403
PS401
PS402
Jam Types
Jam Code Jam type Sensor Sensor Name
100A Delay PS401 Inlet Sensor
100B Delay PS402 Exit Sensor
110A Stationary PS401 Inlet Sensor
110B Stationary PS402 Exit Sensor
1201 Early timing PS401 Inlet Sensor
130A Power-on PS401 Inlet Sensor
130B Power-on PS402 Exit Sensor
1405 Door open PS403 OPEN Detection Sensor
1F3E Sequence - -
2. Technical Explanation
