Removing the Buffer Pass Controller PCB (PCB401).
■ Procedure

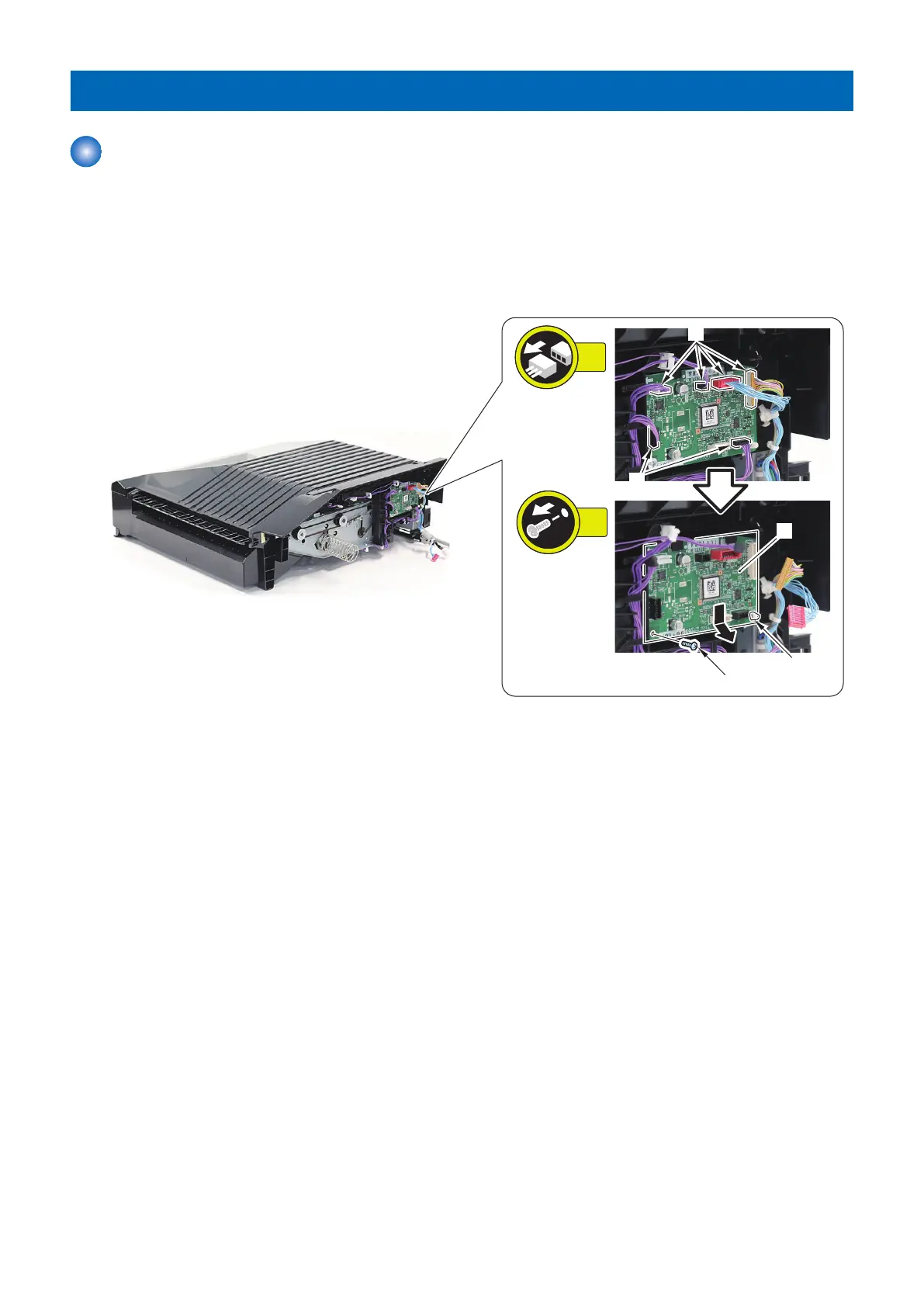

1. Remove the Buffer Pass Controller PCB [1].
• 6 Connectors [2]
• 1 Screw [3]
• 1 locking support [4]
6x
1x
[3]
[4]
[2]
[2]
[1]
