CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-16

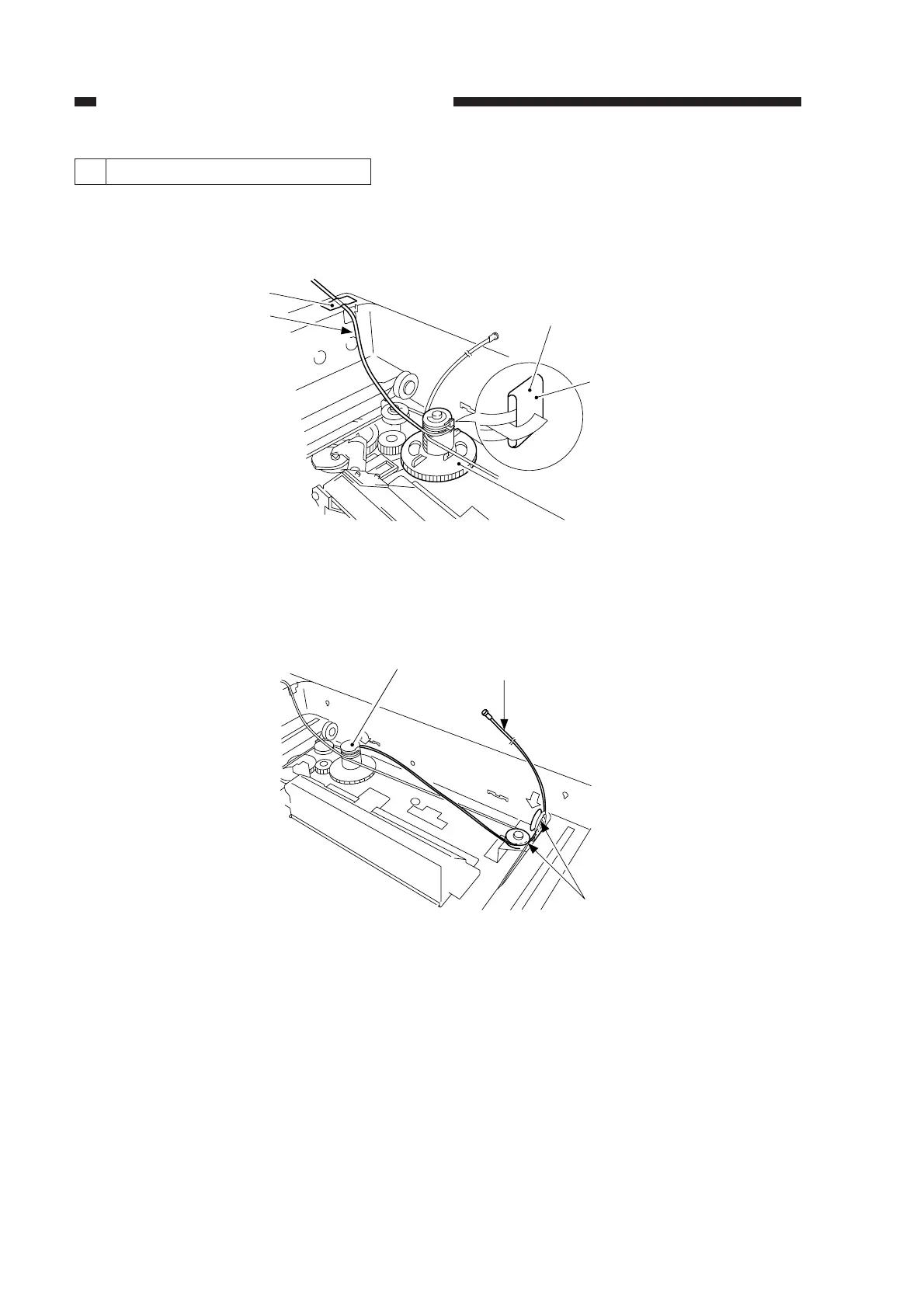

3. Routing the Forwarding Cable
1) Fit the longer end forwarding cable (black) [2] on the top hook of the cable drive pulley [1], and
wind it 1.5 times. Then, secure the shorter end [3] as shown with adhesive tape [4].
Figure 2-27
2) Lead the longer end [5] along the cable drive pulley [1] as shown, and hook it on the pulley [6]
on the right front side.
Figure 2-28
[4]
[3]
[2]
[1]
Face without a marking
[5]
[6]
[1]
To Next Page
