3. Adjusting the Rear/Front Original Stop Position
You must first correct original skew before adjusting the rear/front original stop position.
1) Obtain a sheet of A4 or LTR white copy paper, and draw two lines as indicated.
• The sheet will be used as a test sheet.

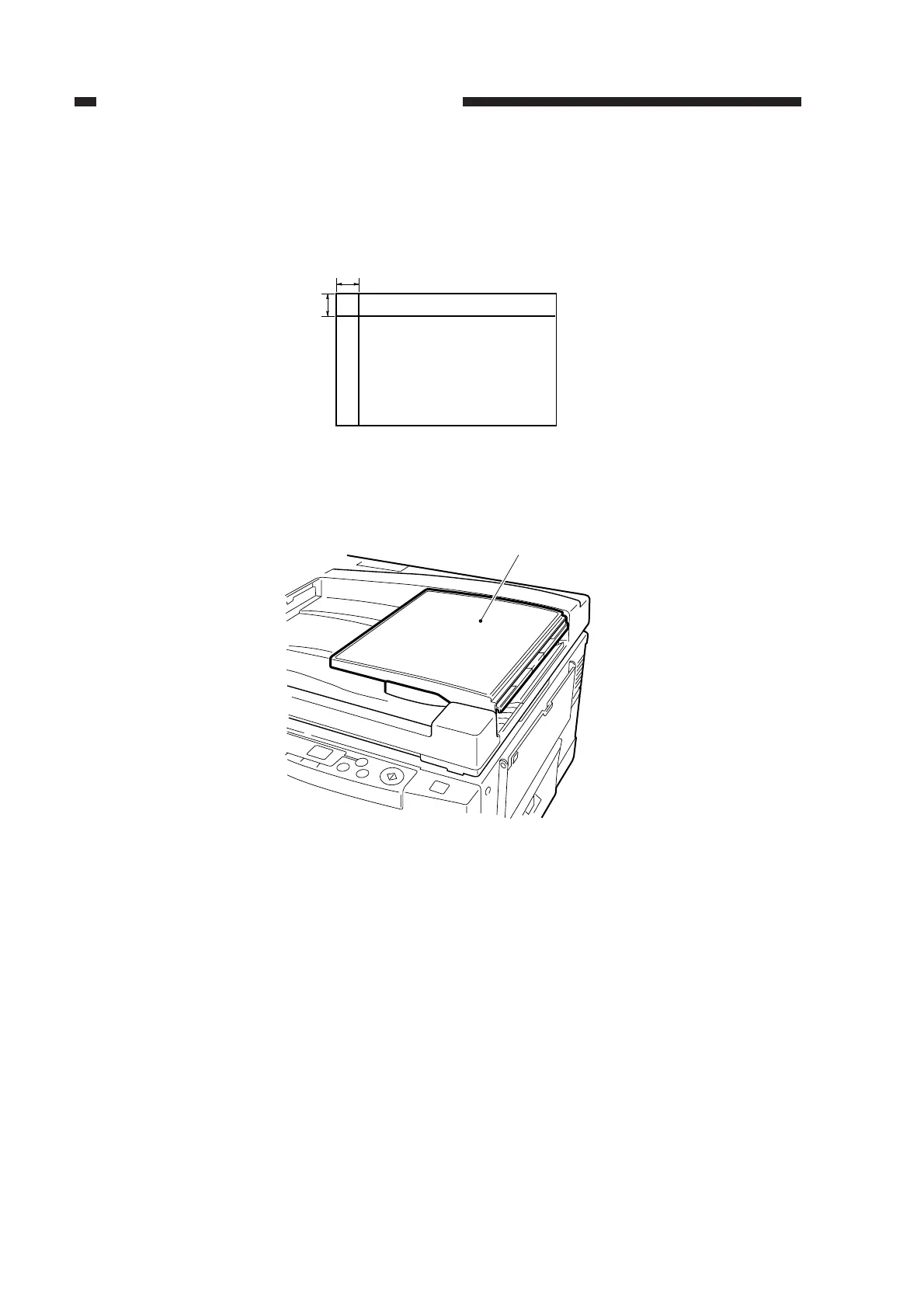

Figure 2-48
2) Remove the original tray cover from below the original tray.
Figure 2-49
10mm
10mm
A4/LTR copy papper
Original
tray cover
