ENGLISH

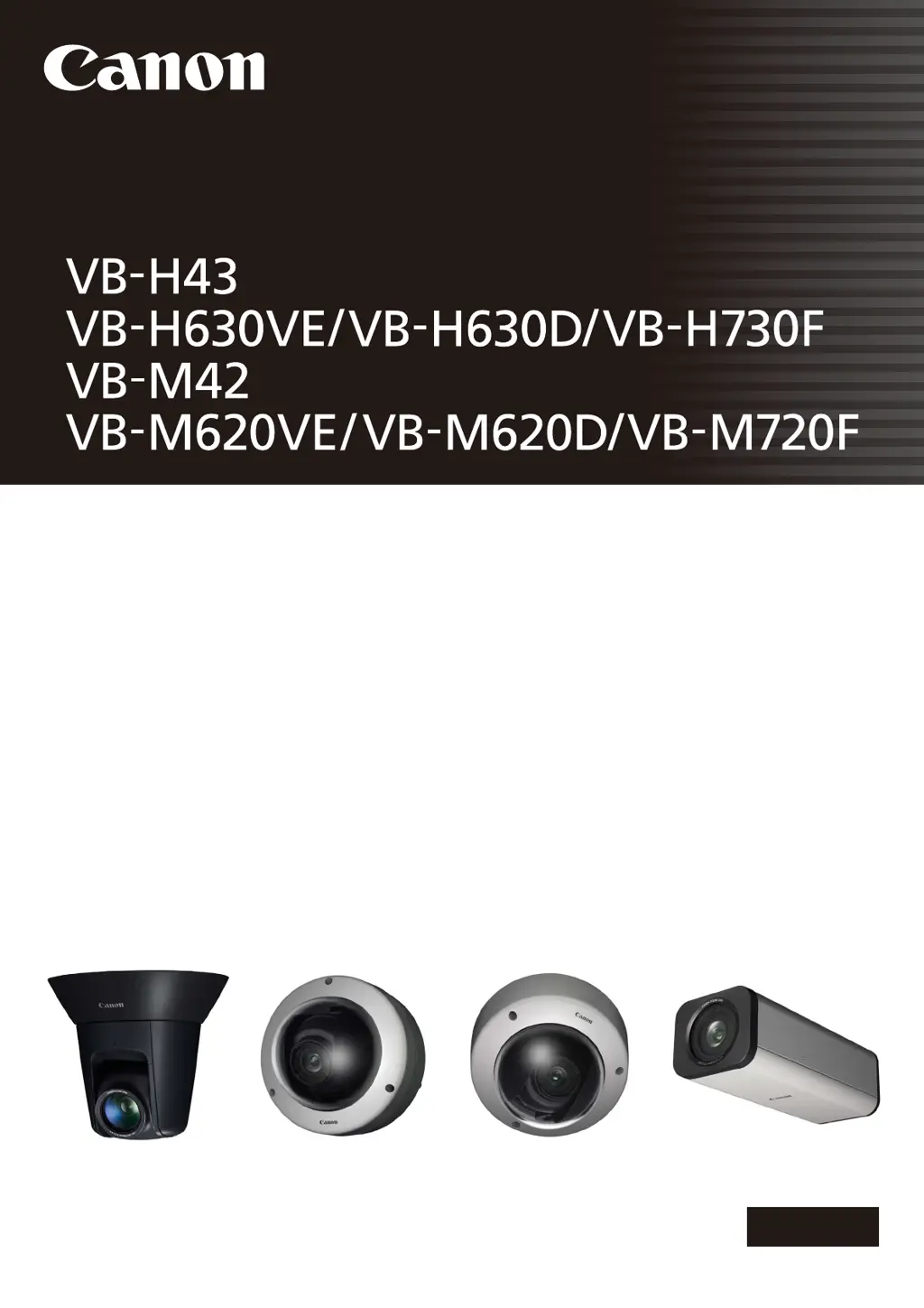

Network Camera

Network Camera

Operation Guide

Be sure to read this Operation Guide before using the network camera.

Table of Contents

Other manuals for Canon VB-H630D

Installation Guide2 pages

Questions and Answers

M
martinbruceSep 23, 2025
What to do if a message indicating “Cannot access the memory card. Please recreate the video management information on the Setting page.” appears when an attempt is made to start up the Recorded Video Utility of Canon Security Camera?
- B
  Bryce CarterSep 23, 2025
  If you receive the message “Cannot access the memory card. Please recreate the video management information on the Setting page,” check the [Video Management Information Status] under [Memory Card Information] in the setting page. If it displays [Video Management Information Recreation Required], click [Exec] in [Recreate Video Management Information] under [Memory Card Operations]. After recreation, ensure that [Video Management Information Status] shows [Normal].
N
Nathan BakerAug 25, 2025
What to do if VB Initial Setting Tool does not operate for Canon Security Camera?
- R
  Regina BrownAug 25, 2025
  If the VB Initial Setting Tool isn't working: * Check if the LAN cable is correctly connected. * Restart the camera. Note that the camera stops responding to the VB Initial Setting Tool 20 minutes after being turned on. * Ensure the camera and the PC running the tool are on the same LAN segment. * The tool might not work if Windows Firewall is enabled. See “Notes on Use When the [Windows Firewall] Function is Enabled”. * Make sure you are using the latest version of the VB Initial Setting Tool.
Q
qrossAug 27, 2025
What to do if the top page of my Canon VB-H630D is not displayed?
- D
  Dillon ColemanAug 27, 2025
  First, ensure the LAN cable is correctly connected and that your network settings (IP address, subnet mask, and default gateway address) are correctly configured for your network. If you changed the IP address, reboot the camera for the new address to take effect. Verify that the correct URI (camera IP address) is entered in your web browser. Also, check if the connection is blocked in [Access Control] settings or if there are any issues with the authentication method, [User Name], [Password], combination of certificates, and network rules for connection in [802.1X] on the Setting page.
C
Cheryl YoungAug 27, 2025
How to fix Canon VB-H630D Admin Tools that will not start?
- L
  leonard03Aug 27, 2025
  If you see a message that your web browser is not supported, use Internet Explorer 8 or greater. If you see a message to install .NET Framework x.x, install the corresponding version or enable the settings. If JavaScript is not available, enable [Active Script] in Internet Explorer's security settings. Ensure you've installed your Admin Tools Certificate and, if using Internet Explorer 9 or greater, registered the camera's IP address as a Trusted Site. Also, enable [XAML browser applications], [File download], and [Launching programs and files in an IFRAME] in Internet Explorer's security settings.
A
Anthony HayesNov 24, 2025
What to do if Canon Security Camera Admin Tools or Admin Viewer will not start?
- M
  Michael BrownNov 24, 2025
  If the Admin Tools or Admin Viewer won't start: * If you see a "Your web browser is not supported" message, use Internet Explorer 8 or later. * If you see an "Application could not be started" message, install the correct version of .NET Framework or enable settings. * If you see a “JavaScript is not available or disabled on your web browser” message, set [Active Script] to [Enable] in Internet Explorer's security settings. * If you see a message about settings needing to be carried out, complete the following steps: 1. Use the installer to install your Admin Tools Certificate. 2. If using Internet Explorer 9 or later, register the camera's top page as a trusted site. 3. In Internet Explorer, enable [XAML browser applications], [File download] and [Launching program...
R
robertohobbsSep 14, 2025
How to troubleshoot the Canon Security Camera Angle Setting Tool when it does not operate?
- T
  Terri HuffSep 14, 2025
  If the Camera Angle Setting Tool isn't operating: * Check that the LAN cable is correctly connected. * Ensure the camera and the PC running the tool are on the same LAN segment. * If you see an "Application could not be started" message, install the required version of .NET Framework or enable the necessary settings. * Verify that you are using the latest version of the Camera Angle Setting Tool.
H
Hannah BennettSep 12, 2025
What to do if Canon Security Camera viewer gets disconnected?
- M
  moniqueliuSep 12, 2025
  If the viewer gets disconnected, check the network and PC for any issues. Try rebooting the PC and connecting again.
L
Lisa RogersSep 13, 2025
Why is there no audio from my Canon Security Camera?
- N
  nicholas75Sep 13, 2025
  If there's no audio, check the camera's audio server settings and the sound and audio device settings on your PC. If using Admin Viewer with administrator authorities, verify that the camera is not connected to the RM Viewer or another viewer that lets the administrator use audio. In VB Viewer, ensure the Canon Network Camera Audio Receiver add-on is installed.
D
Darrell HodgesSep 5, 2025
Why can't I use recording-mode stream transmission on my Canon VB-H630D Security Camera?
- A
  Ariel WallsSep 5, 2025
  You cannot use recording-mode stream transmission if [Upload] > [Upload] is set to HTTP or FTP. Set [Upload] to [Upload Disabled].
M
Mark AtkinsSep 3, 2025
Why can't data be uploaded from my Canon VB-H630D Security Camera?
- B
  Bryan HardinSep 3, 2025
  Check the upload destination in the [Upload] menu and the upload operation upon event in the [Event] menu to ensure both are set correctly. You can test the upload destination from the [Upload] menu. Review logs in [Maintenance] > [View Logs] or on the server to check the operating environment.

Summary

Safety Precautions

Important Warnings

Critical warnings regarding electric shock and user-serviceable parts.

Chapter 1 Before Use

Chapter 2 Initial Settings

Preparing the Camera for Use

Steps to prepare and configure the camera for operation.

Installing the Necessary Software

Performing Initial Settings for the Camera

Using the VB Initial Setting Tool to configure network settings.

Chapter 3 Camera Angle Setting Tool

Setting the Camera Angle

Chapter 4 Top Page of the Camera

Chapter 5 Setting Page

Network Settings

Configuring network parameters, including IP, DNS, and administrator password.

Video Settings

Adjusting video parameters like size, quality, and frame rate.

Access Control Settings

Managing user accounts, authorities, and host access restrictions.

Chapter 6 Admin Tools

Privacy Mask Setting Tool

Intelligent Function Setting Tool

Tool to configure intelligent functions for event detection.

Chapter 7 Admin Viewer;VB Viewer

Launching the Viewer

Controlling the Camera

Magnifying Part of the Image (Viewer PTZ)

Chapter 8 Appendix

Troubleshooting

Solutions for common problems encountered during camera operation.

Restore Default Settings

Procedures to restore camera settings to factory defaults.

Summary

Safety Precautions

Important Warnings

Critical warnings regarding electric shock and user-serviceable parts.

Chapter 1 Before Use

Chapter 2 Initial Settings

Preparing the Camera for Use

Steps to prepare and configure the camera for operation.

Installing the Necessary Software

Performing Initial Settings for the Camera

Using the VB Initial Setting Tool to configure network settings.

Chapter 3 Camera Angle Setting Tool

Setting the Camera Angle

Chapter 4 Top Page of the Camera

Chapter 5 Setting Page

Network Settings

Configuring network parameters, including IP, DNS, and administrator password.

Video Settings

Adjusting video parameters like size, quality, and frame rate.

Access Control Settings

Managing user accounts, authorities, and host access restrictions.

Chapter 6 Admin Tools

Privacy Mask Setting Tool

Intelligent Function Setting Tool

Tool to configure intelligent functions for event detection.

Chapter 7 Admin Viewer;VB Viewer

Launching the Viewer

Controlling the Camera

Magnifying Part of the Image (Viewer PTZ)

Chapter 8 Appendix

Troubleshooting

Solutions for common problems encountered during camera operation.

Restore Default Settings

Procedures to restore camera settings to factory defaults.

Canon VB-H630D Specifications

General

Video Resolution	1920 x 1080
Frame Rate	Up to 30 fps
Video Compression	H.264, MJPEG
Power Supply	PoE (IEEE 802.3af)
Image Sensor	1/3-inch CMOS
Effective Pixels	2.1 Megapixels
Minimum Illumination	0.5 lx (Color, 1/30 sec), 0.05 lx (B/W, 1/30 sec)
Shutter Speed	1/30 sec to 1/10, 000 sec
Resolution	Full HD (1080p)
Audio Compression	G.711
Network Protocols	HTTP, HTTPS, TCP/IP, UDP, ICMP, ARP, RTP, RTSP, RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, SNMP, Bonjour
Network Interface	10Base-T / 100Base-TX
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Day/Night	Yes
