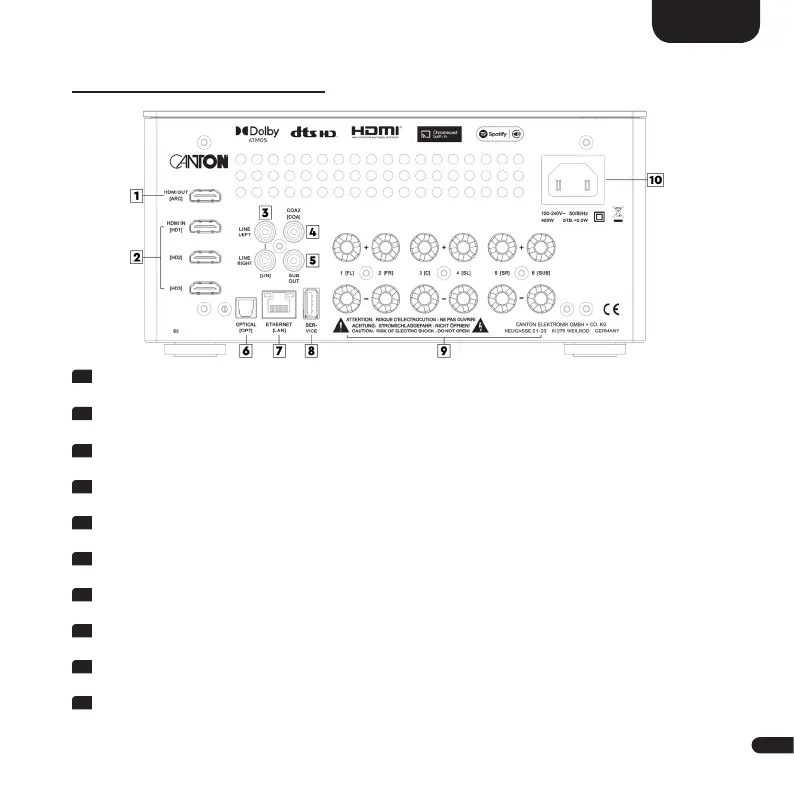

CONNECTION TERMINAL (back side)
1
HDMI OUT / ARC / [TV] (Supports eARC/ARC, 3D, 4K, HDR, HDCP2.2, CEC)
For the connection to the HDMI
®
(eRAC/ARC) input on your TV.
2
HDMI IN / HD1/[BDP], HD2/[SAT], HD3/[PS] (Supports 3D, 4K, HDR, HDCP2.2, CEC)
For the connection to the HDMI
®
output on your digital devices.
3
LINE LEFT + LINE RIGHT / LIN / [AUX]
For the stereo connection to the analog line output on your playback device.
4
COAX / COA / [DVD]
For the connection to the coaxial digital audio output on your TV or digital device.
5
SUB OUT
For the connection to a powered Subwoofer.
6
OPTICAL / OPT / [CD]
For the connection to the optical digital audio output on your TV or digital device.
7
ETHERNET / LAN / [NET]
For the onnection to the internet via network cable (RJ45, 8-pin).
8
SERVICE
For service purposes, only! No charging function, no audio or video playback!
9
SPEAKER CONNECTORS 1–6
For the connection of passive loudspeakers and/or a passive subwoofer.
10
POWER INPUT
For the connection to the mains supply (IEC C14).
