ASSEMBLY

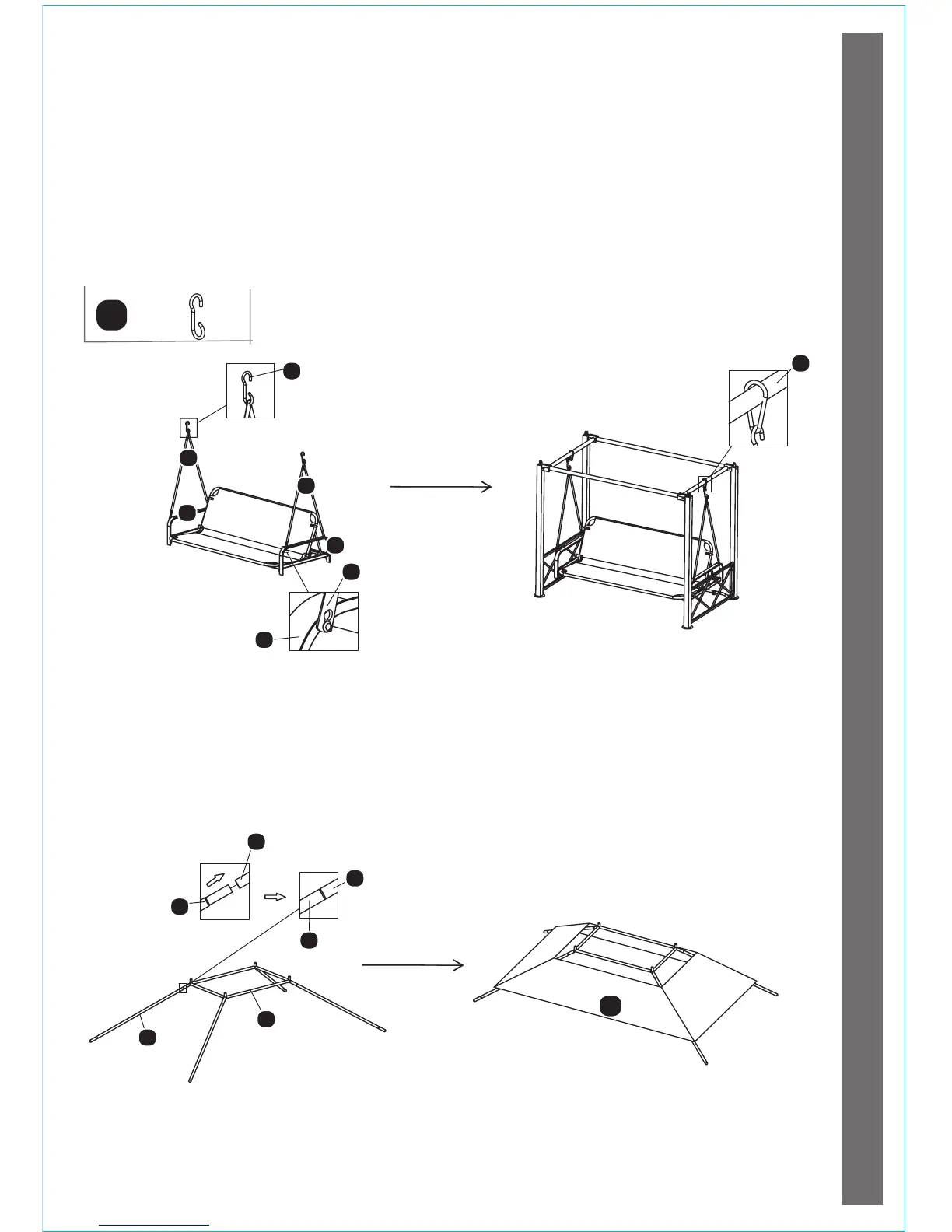

Step 9
Requires
5, 7, 8, 12, N.
Attach the hanging bars 12 to the arms by sliding the bottom hole in the bars
over the pins on the outside of the arms 7 and 8. Position the bars so that the
end labelled “TOP” is up and facing toward the swing seat. At each end of the
seat assembly, bring together the holes in the top ends of the hanging bars and
thread them on to a “S” hook N. Hang the “S” hooks from the loops on the
short top crossbar 5.
N
Step 10
Requires
13, 14, 19.
Insert large canopy frame bars 14 into the large canopy frame 13 as per drawing.
Place the large canopy 19 over the assembled canopy frame 13 and 14 as shown.
10
MODEL NO. 088-1682-2
TOP
8
7
5
12
12
N
12
8
14
14
13
13
13
14
19
